Windshield Washer Pump Removal
WARNING: This page is about a different car, the 2004 Suzuki Verona. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable.
- Remove the right front left wheel.
.
- Remove the front wheel well splash shield.
.
- Disconnect the electrical connector.
- Disconnect the washer hose from the washer pump.

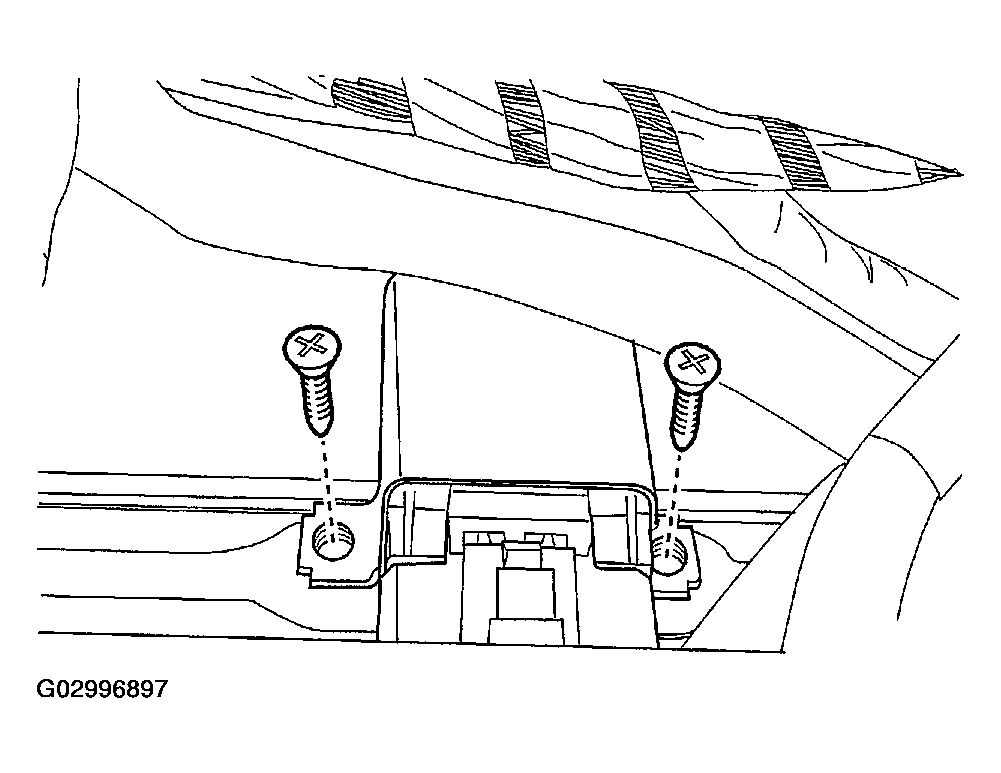

- Remove the washer pump.
Courtesy of SUZUKI OF AMERICA CORP.
