Windshield Washer Hoses Removal

WARNING: This page is about a different car, the 2004 Suzuki Verona. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the hood.
  2. Disconnect the windshield washer hose from the washer nozzles on the hood.
  3. Remove the front right wheel. .
  4. Remove the front wheel well splash shield. .
  5. Disconnect the washer hose from the washer reservoir.
  6. Remove the washer hose.

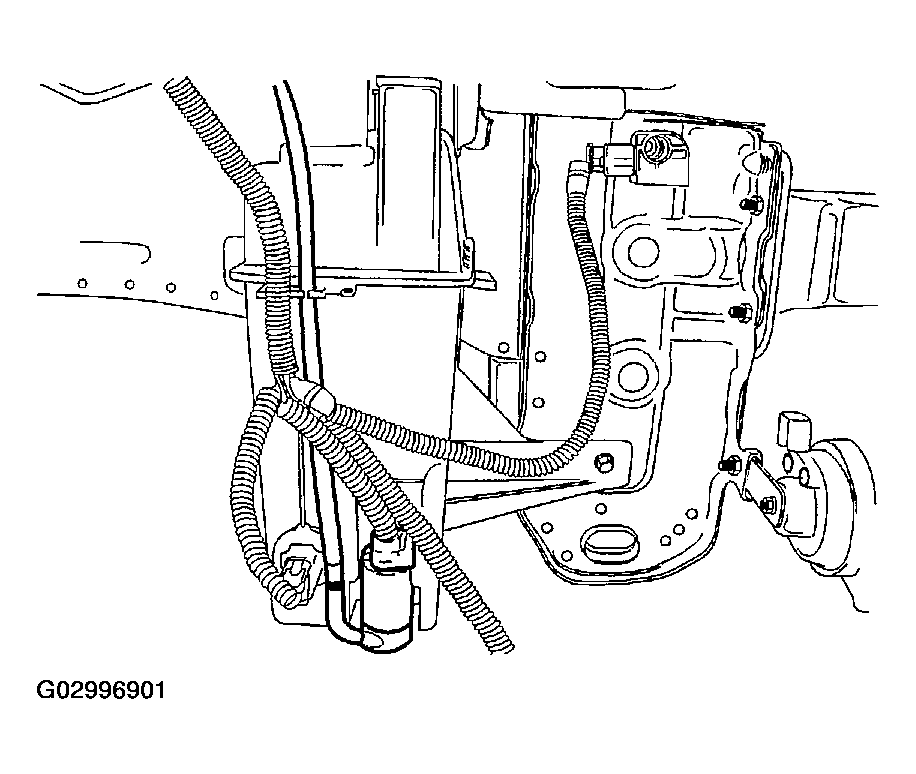

Fig 1: Removing Windshield Washer Hoses
G02996901Courtesy of SUZUKI OF AMERICA CORP.
