WARNING: This page is about a different car, the 2004 Suzuki Verona. However, it is still accessible from the selected car via links, so may be relevant.

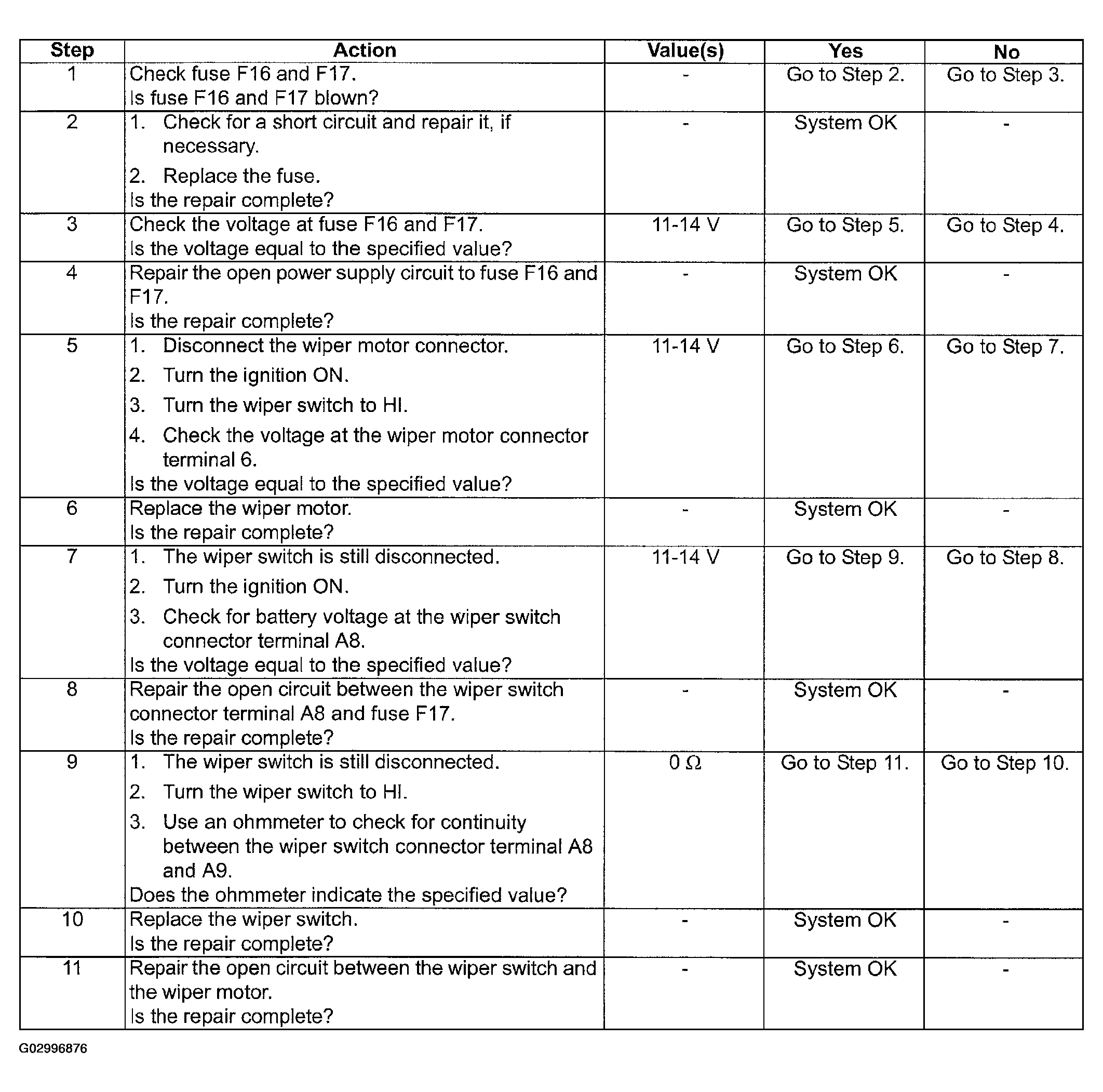

Fig 1: Wipers Do Not Work At Any Speed Diagnostic Chart
Courtesy of SUZUKI OF AMERICA CORP.

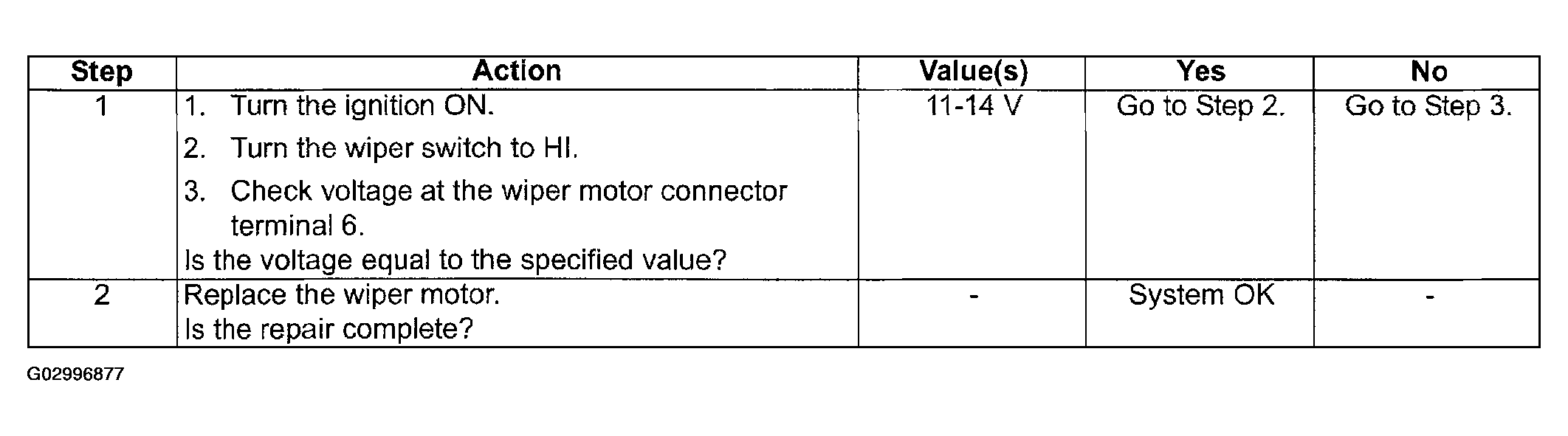

Fig 2: Windshield Wipers Do Not Work on HI Speed, LO Speed OK Diagnostic Chart (1 Of 2)
Courtesy of SUZUKI OF AMERICA CORP.

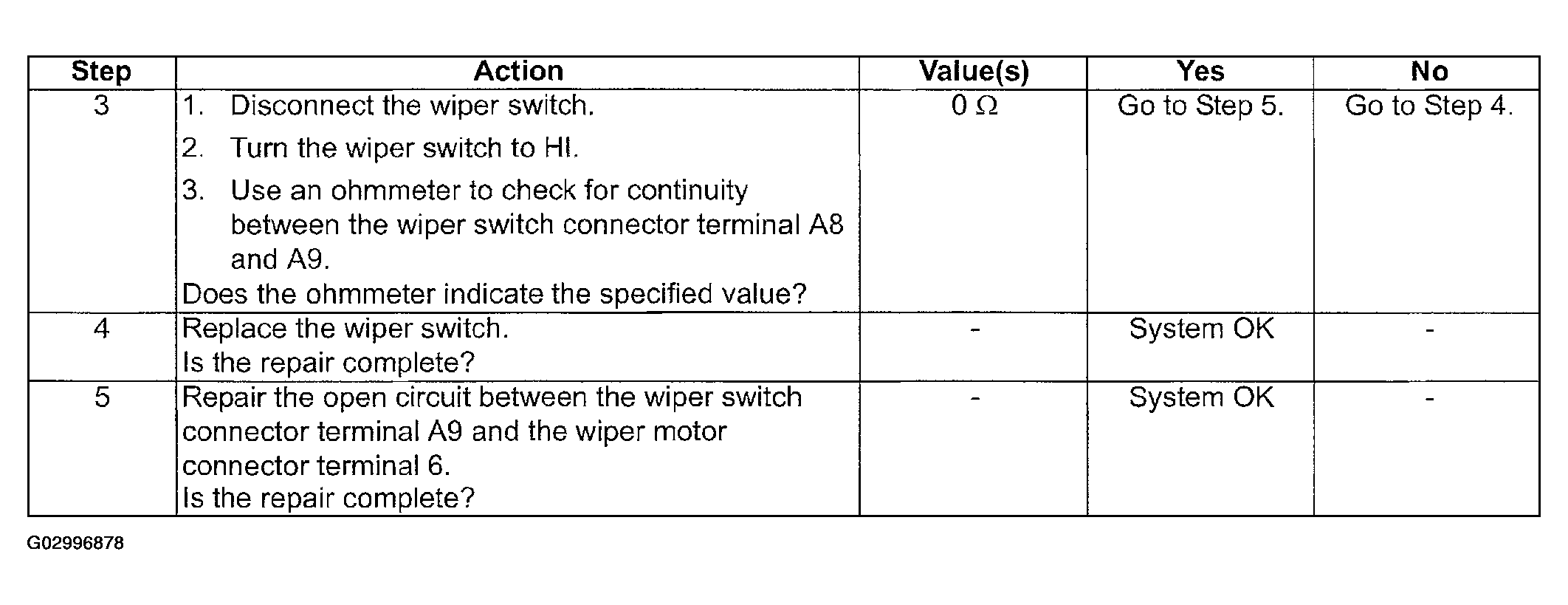

Fig 3: Windshield Wipers Do Not Work on HI Speed, LO Speed OK Diagnostic Chart (2 Of 2)
Courtesy of SUZUKI OF AMERICA CORP.

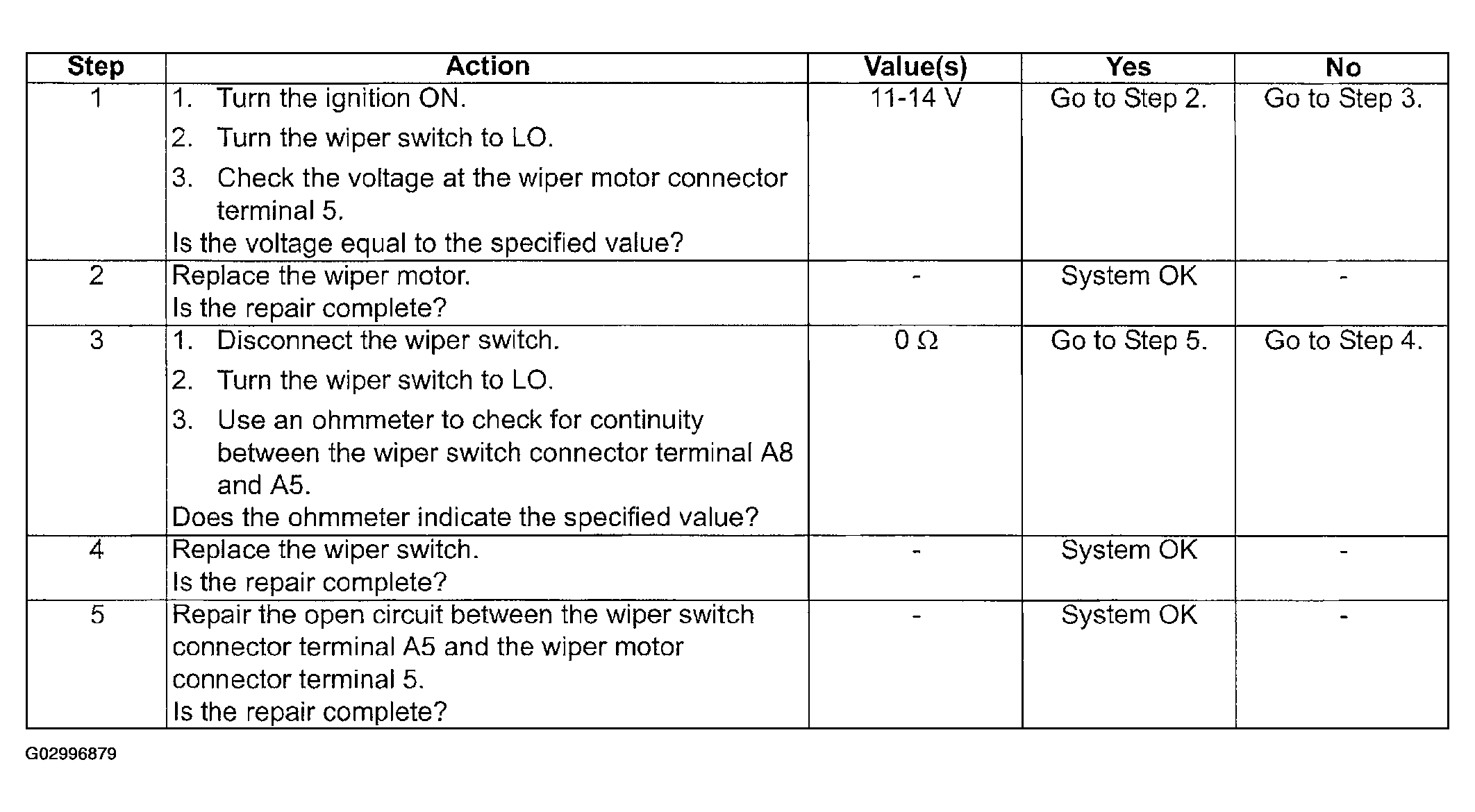

Fig 4: Windshield Wipers Do Not Work on LO Speed, HI Speed OK Diagnostic Chart
Courtesy of SUZUKI OF AMERICA CORP.

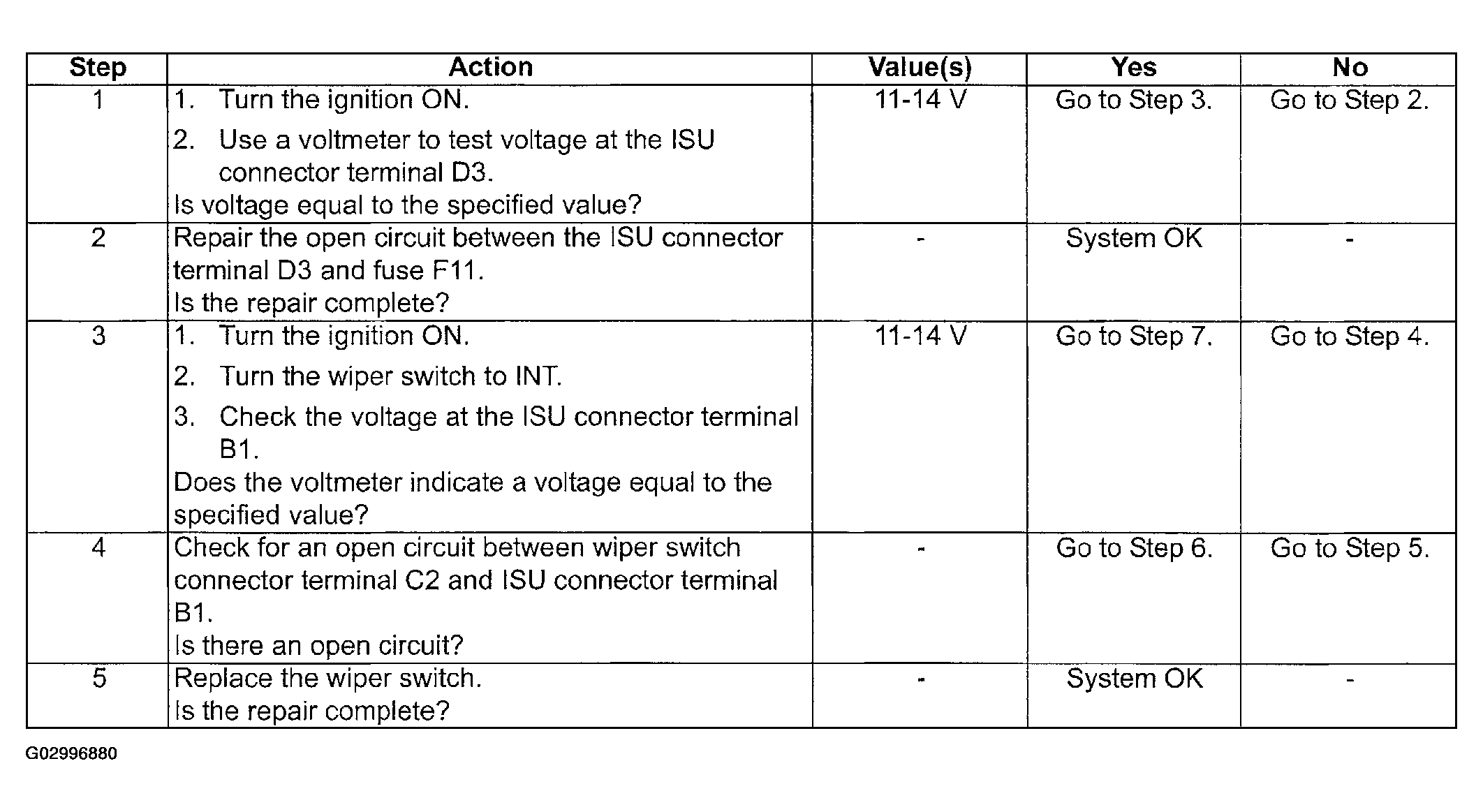

Fig 5: Windshield Wipers Do Not Work on Intermittent, Other Speeds OK Diagnostic Chart (1 Of 2)
Courtesy of SUZUKI OF AMERICA CORP.

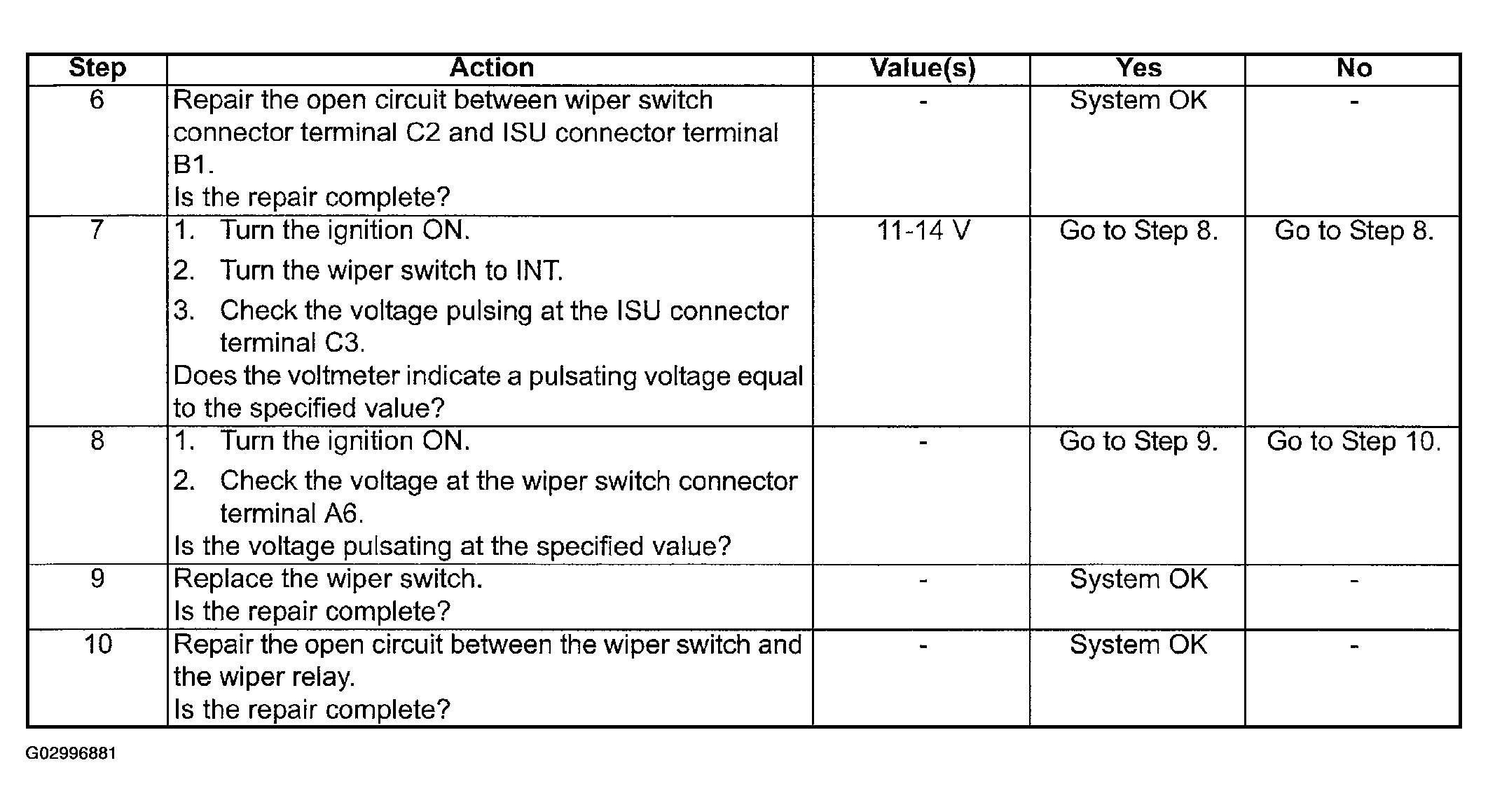

Fig 6: Windshield Wipers Do Not Work on Intermittent, Other Speeds OK Diagnostic Chart (2 Of 2)
Courtesy of SUZUKI OF AMERICA CORP.

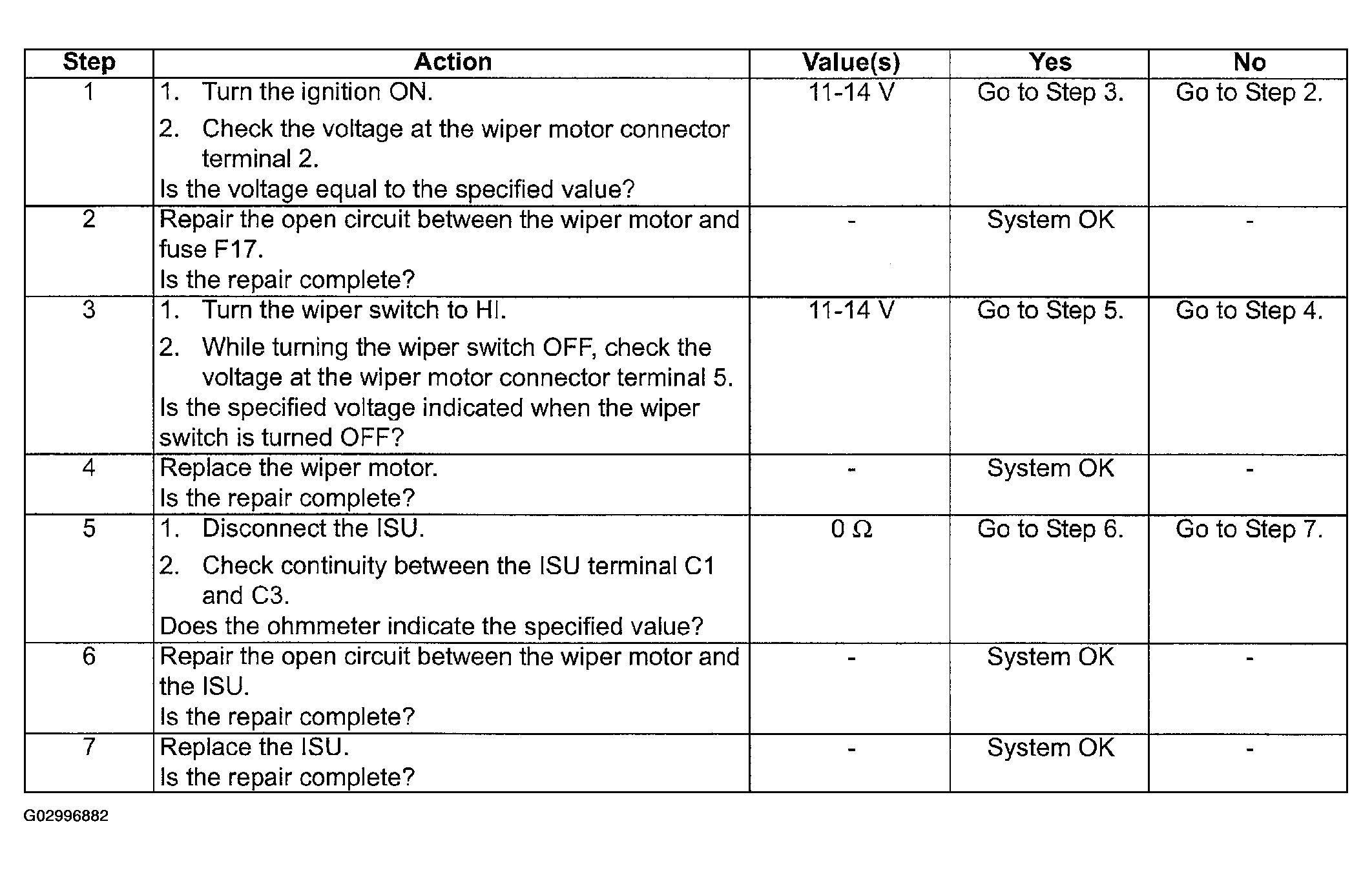

Fig 7: Windshield Wipers Do Not Return to Park Position Diagnostic Chart
