Heater / Air Distributor Case Assembly Installation: Notes

WARNING: This page is about a different car, the 2004 Suzuki Verona. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the heater/air distributor case assembly in the vehicle.
    CAUTION: To avoid damaging the vehicle, make sure the heater core pipes do not contact the fire wall opening.
  2. Slowly raise the heater/air distributor case assembly into position against the fire wall and hold it there while the screws are installed and tightened from the engine side of the fire wall.
  3. Install the heater/air distributor case assembly screws at the connecting block mount on the engine compartment side of the fire wall.
    1. Tighten the heater/air distributor case assembly screws to 8 N.m (71 lb-in).

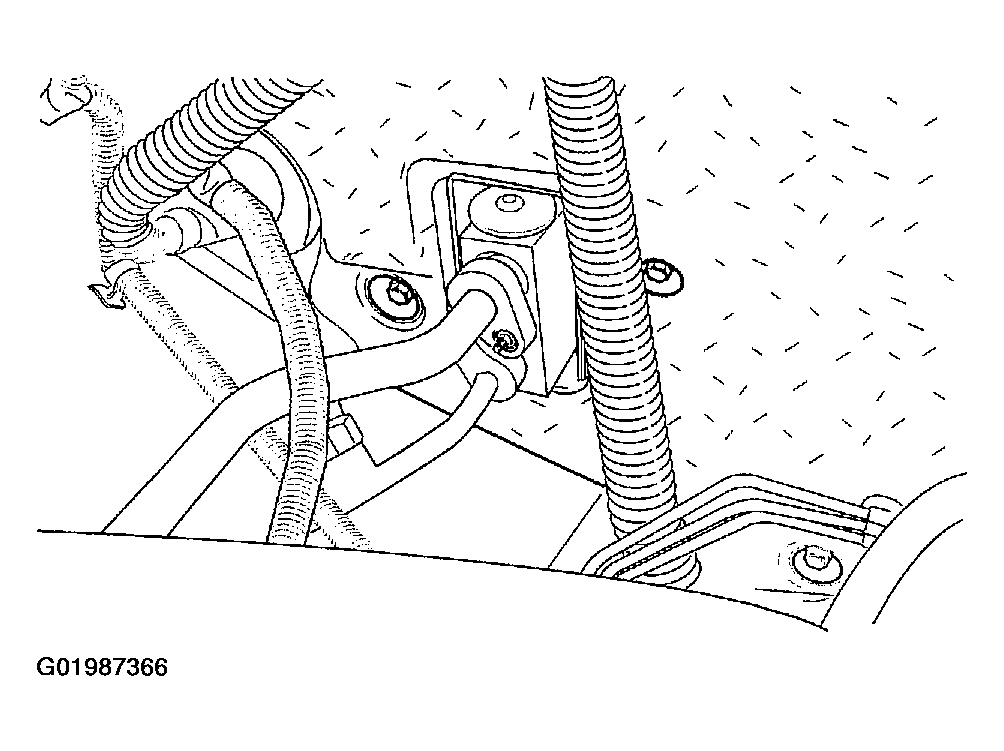

  4. Fig 1: Installing Heater/Air Distributor Case Assembly Screws
    G01987366Courtesy of SUZUKI OF AMERICA CORP.
  5. Align and install the heater/air distributor case assembly screw above the fuel filter.
    1. Tighten the heater/air distributor case assembly screw to 8 N.m (71 lb-in).
  6. Replace the fuel filter into its mounting clamp.

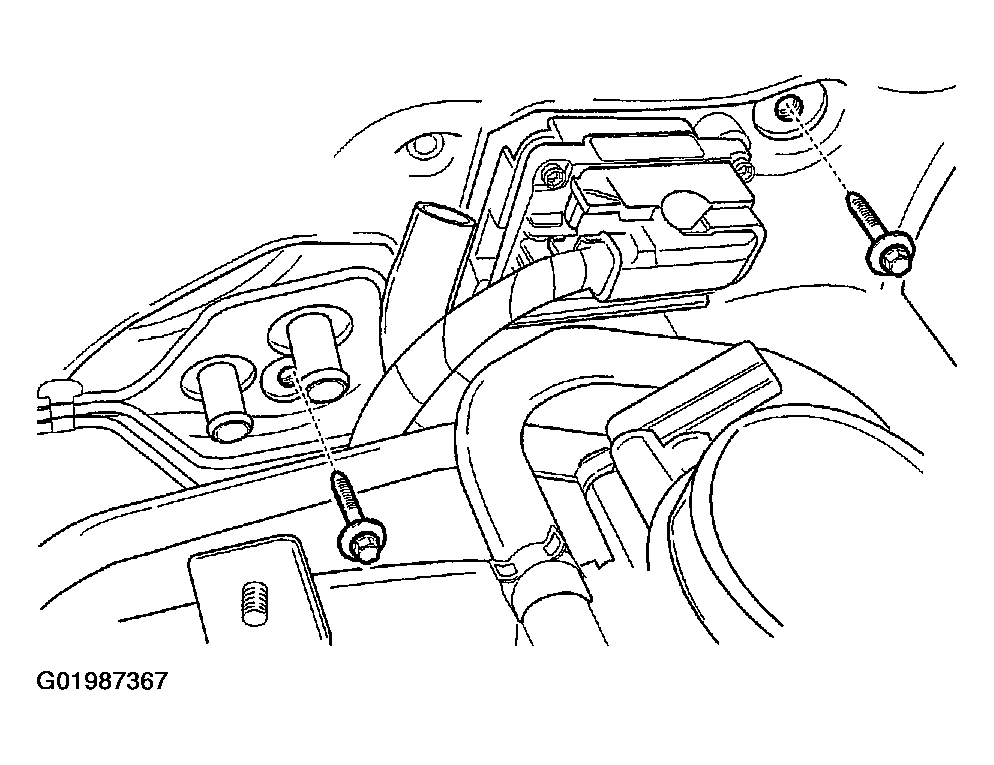

  7. Fig 2: Replacing Fuel Filter Into Its Mounting Clamp
    G01987367Courtesy of SUZUKI OF AMERICA CORP.
  8. Install the heater/air distributor case assembly screws on either side of the heater core pipes.
    1. Tighten the heater/air distributor case assembly screws to 8 N.m (71 lb-in).
  9. Install the two heater hoses.
  10. Slide the heater hose clamps into position.
  11. Install the vacuum hose.

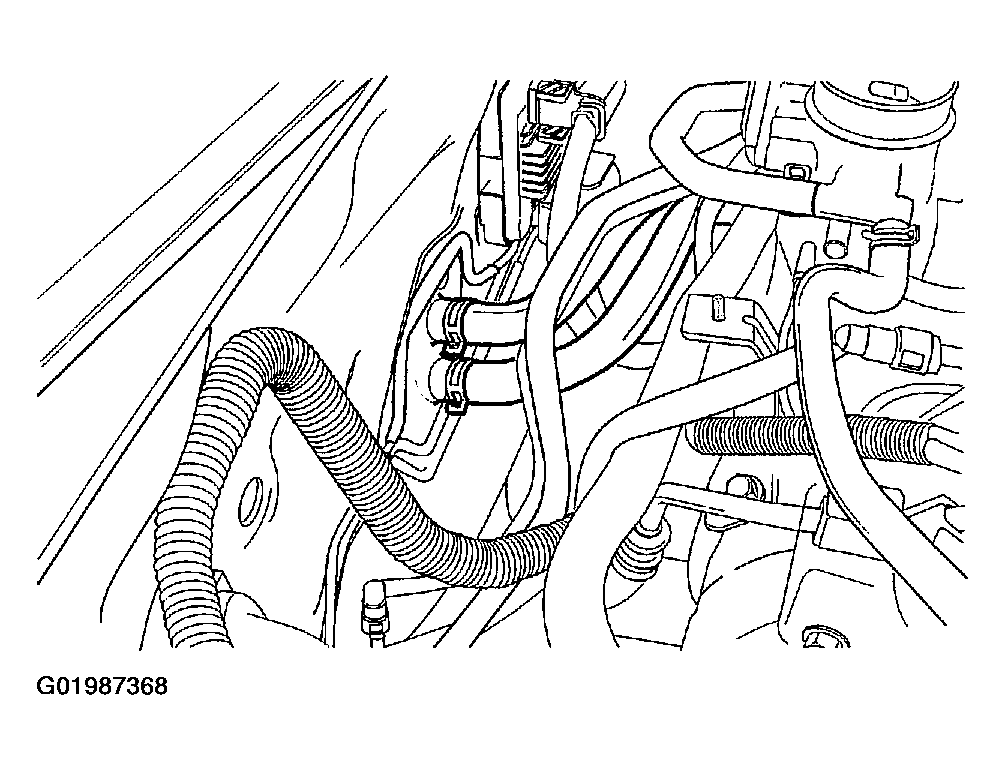

  12. Fig 3: Installing Vacuum Hose
    G01987368Courtesy of SUZUKI OF AMERICA CORP.
  13. Install the instrument panel carrier assembly. Refer to INSTRUMENT PANEL INSTALLATION .
  14. Fill the cooling system. Refer to DRAINING AND REFILLING THE COOLING SYSTEM .
  15. Connect the negative battery cable.
  16. Operate the controls to verify that the heating and ventilation systems function properly.

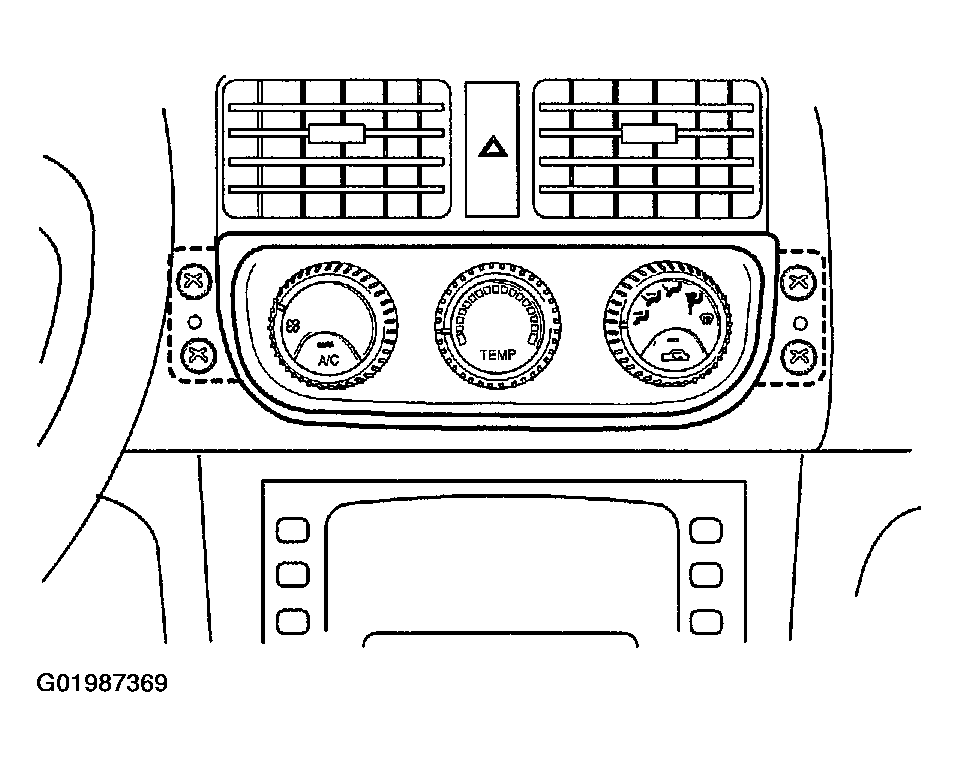

Fig 4: Installing Screws
G01987369Courtesy of SUZUKI OF AMERICA CORP.
