Control Assembly Knob Lighting Installation

WARNING: This page is about a different car, the 2004 Suzuki Verona. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the bulb into the holder and turn the bulb to the right.
  2. Install the control assembly case halves.
    • Pass the connector for the vacuum switch through the hole in the rear assembly case part.
    • Be sure to align the flats on mating control shafts of the two case halves.
  3. Install the connector into the vacuum control switch.
    4. Fig 1: Installing Connector Into Vacuum Control Switch
    G01987361Courtesy of SUZUKI OF AMERICA CORP.
  4. Install the control assembly. Refer to Control Assembly Removal  .
  5. Connect the negative battery cable.
  6. Check the knob light for proper operation.

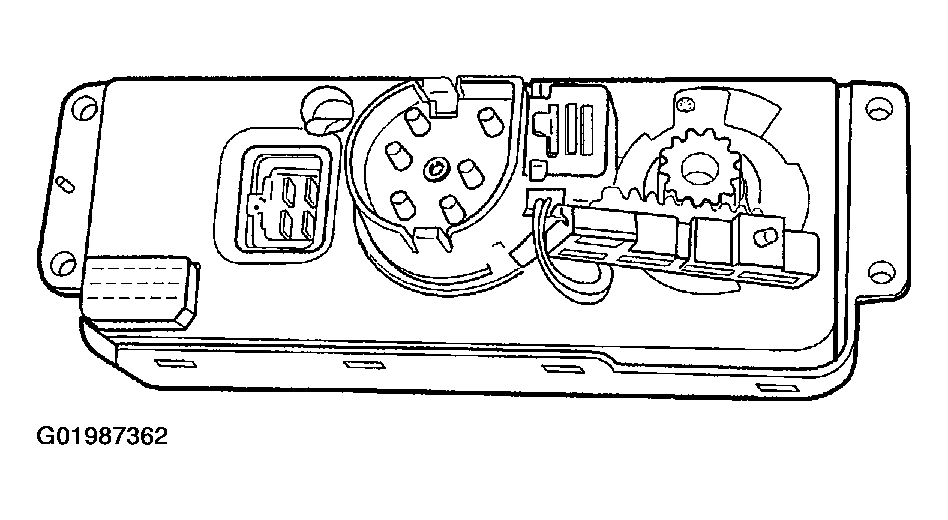

Fig 2: Checking Knob Light For Proper Operation
G01987362Courtesy of SUZUKI OF AMERICA CORP.
