Temperature Door Motor Removal

WARNING: This page is about a different car, the 2004 Suzuki Verona. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Remove the glove box lower panel cover. Refer to GLOVE BOX REMOVAL .
Disconnect the electrical connector.
Remove the actuating rod by snapping it out of the lever with needle-nose pliers.

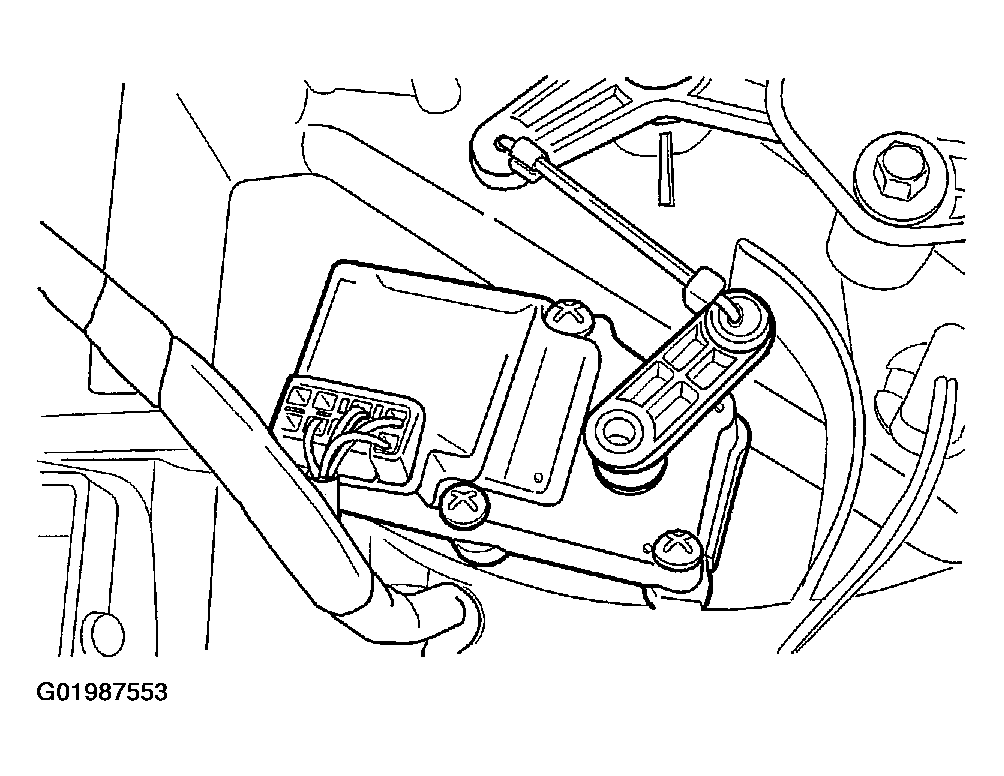

Fig 1: Removing Actuating Rod By Snapping It Out Of Lever

Courtesy of SUZUKI OF AMERICA CORP.

Remove the motor lever from its shaft by pulling the lever off.
Remove the motor retaining screws.
Remove the temperature door motor.

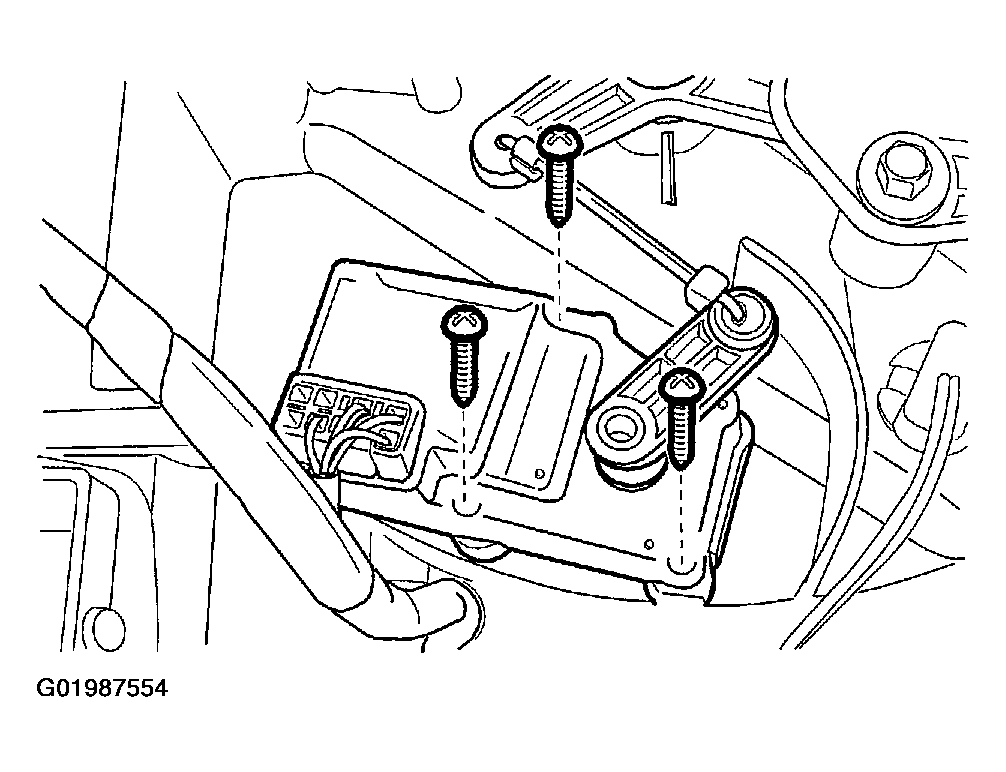

Fig 2: Removing Temperature Door Motor

Courtesy of SUZUKI OF AMERICA CORP.
