Temperature Door Motor Installation

WARNING: This page is about a different car, the 2004 Suzuki Verona. However, it is still accessible from the selected car via links, so may be relevant.

Install the temperature door motor.
Install the retaining screws and tighten.

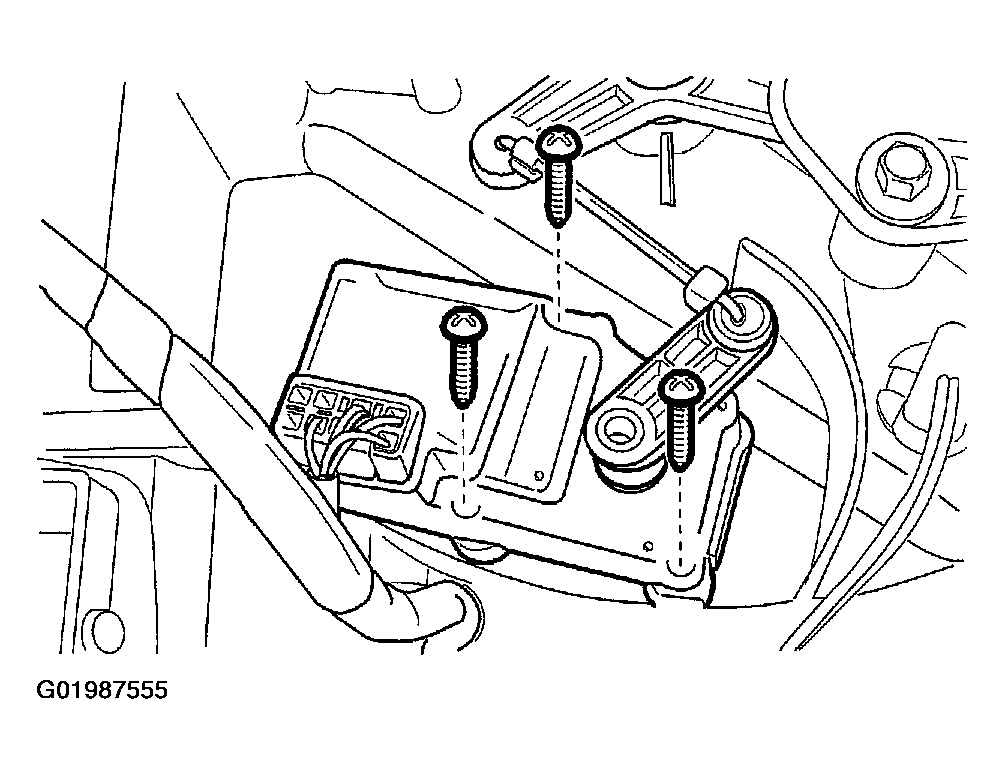

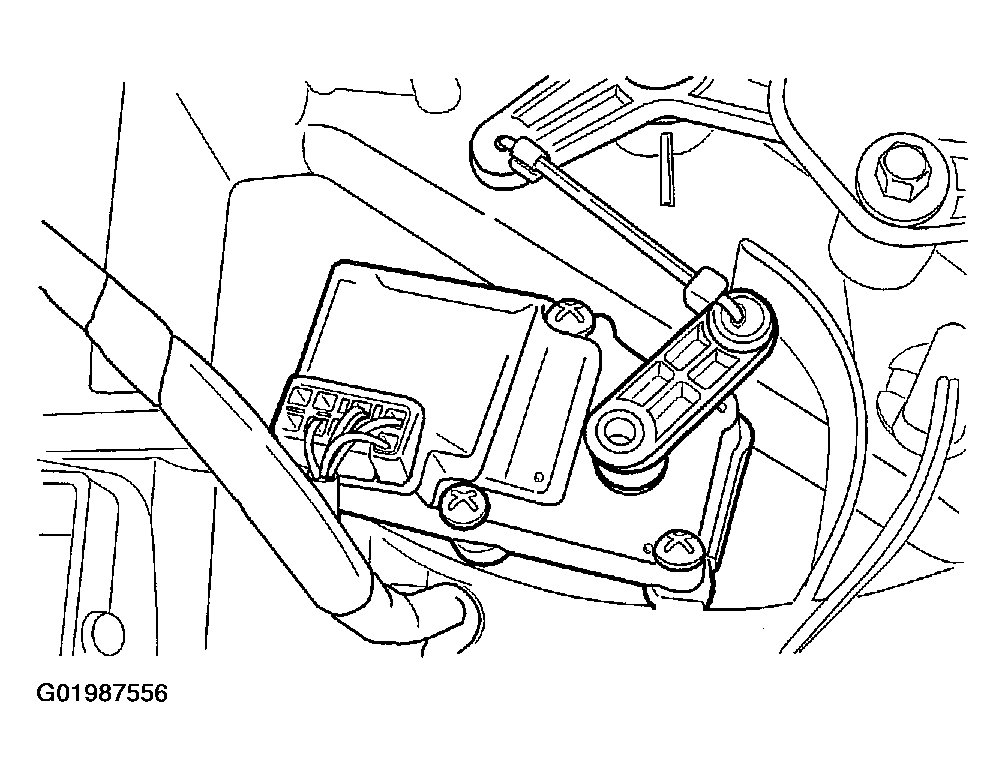

Fig 1: Installing Retaining Screws

Courtesy of SUZUKI OF AMERICA CORP.

Press the lever onto motor shaft.
Install the actuating rod onto the lever.
Connect the electrical connector.
Install the glove box lower panel cover. Refer to GLOVE BOX INSTALLATION .
Connect the negative battery cable.

Fig 2: Connecting Negative Battery Cable

Courtesy of SUZUKI OF AMERICA CORP.
