Mode Door Motor Removal

WARNING: This page is about a different car, the 2004 Suzuki Verona. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Disconnect the electrical connector.
Remove the motor actuating rod by snapping out it out of the lever with needle-nose pliers.

Fig 1: Removing Motor Actuating Rod Snapping Out It Out Of Lever

Courtesy of SUZUKI OF AMERICA CORP.

Remove the motor lever.
Remove the motor retaining bolts.
Remove the mode door motor.

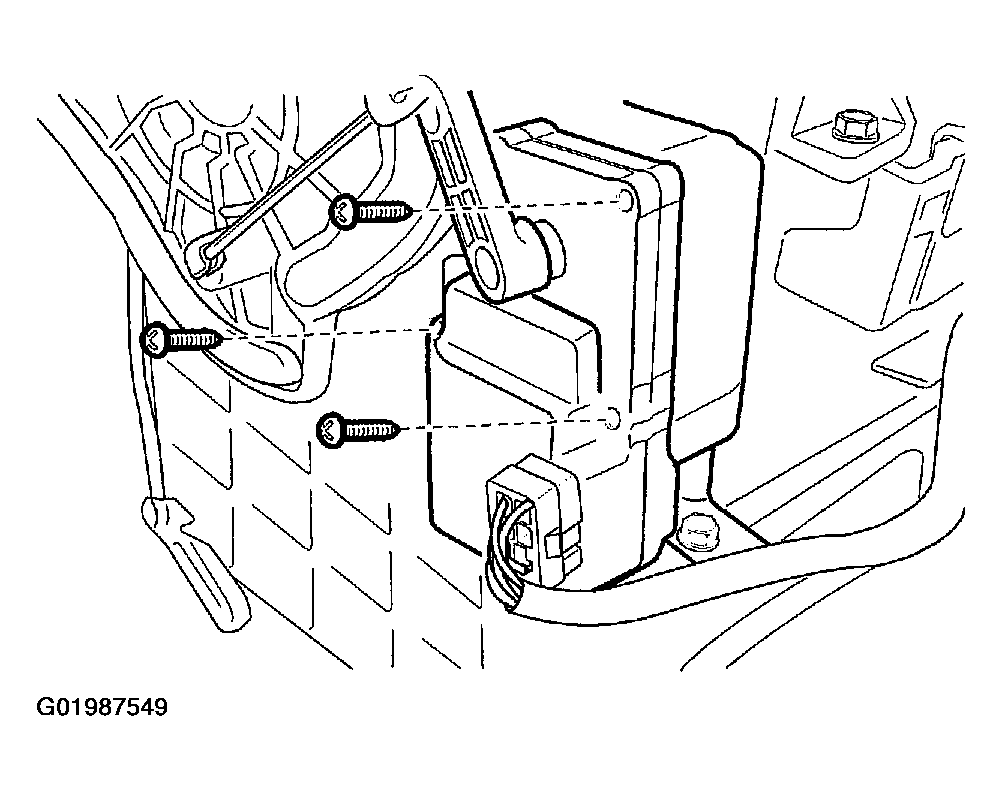

Fig 2: Removing Mode Door Motor

Courtesy of SUZUKI OF AMERICA CORP.
