Mode Door Motor Installation

WARNING: This page is about a different car, the 2004 Suzuki Verona. However, it is still accessible from the selected car via links, so may be relevant.

Install the mode door motor.
Install the motor retaining screws and tighten.

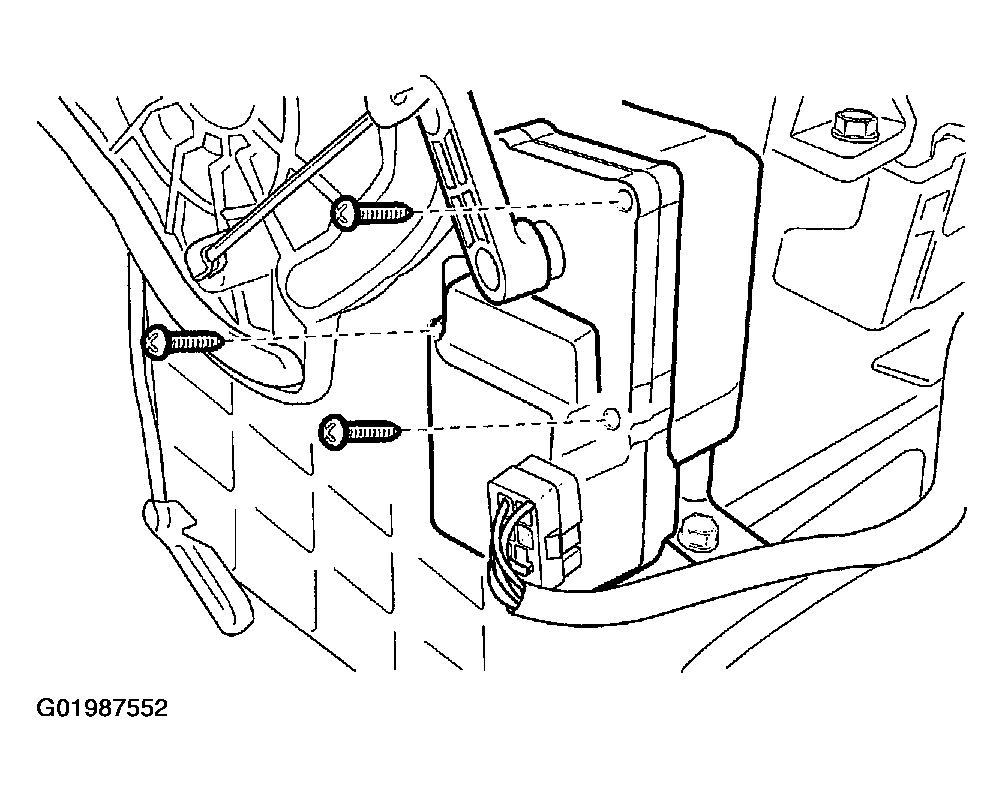

Fig 1: Installing Motor Retaining Screws

Courtesy of SUZUKI OF AMERICA CORP.

Install the motor lever by pressing it onto its shaft.
Install the actuating rod.
Connect the electrical connector.
Connect the negative battery cable.

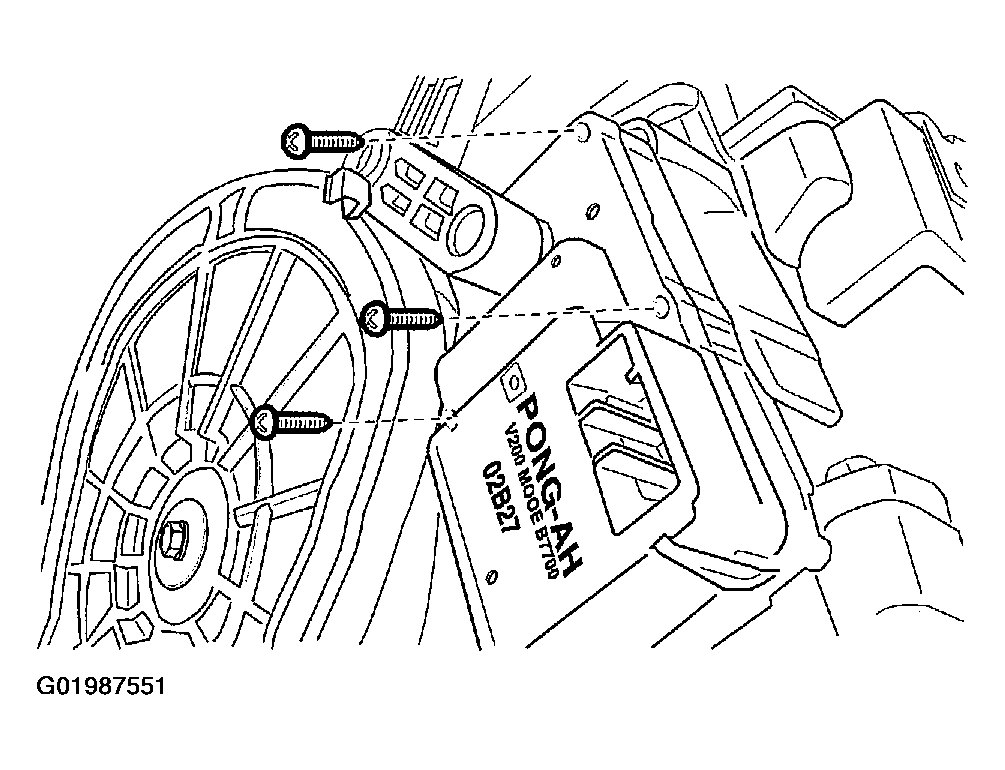

Fig 2: Connecting Negative Battery Cable

Courtesy of SUZUKI OF AMERICA CORP.
