In-Car Temperature Sensor Removal

WARNING: This page is about a different car, the 2004 Suzuki Verona. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the instrument panel under cover. Refer to INSTRUMENT PANEL REMOVAL .
  3. Remove the screws securing the in-car temperature sensor with the tube.

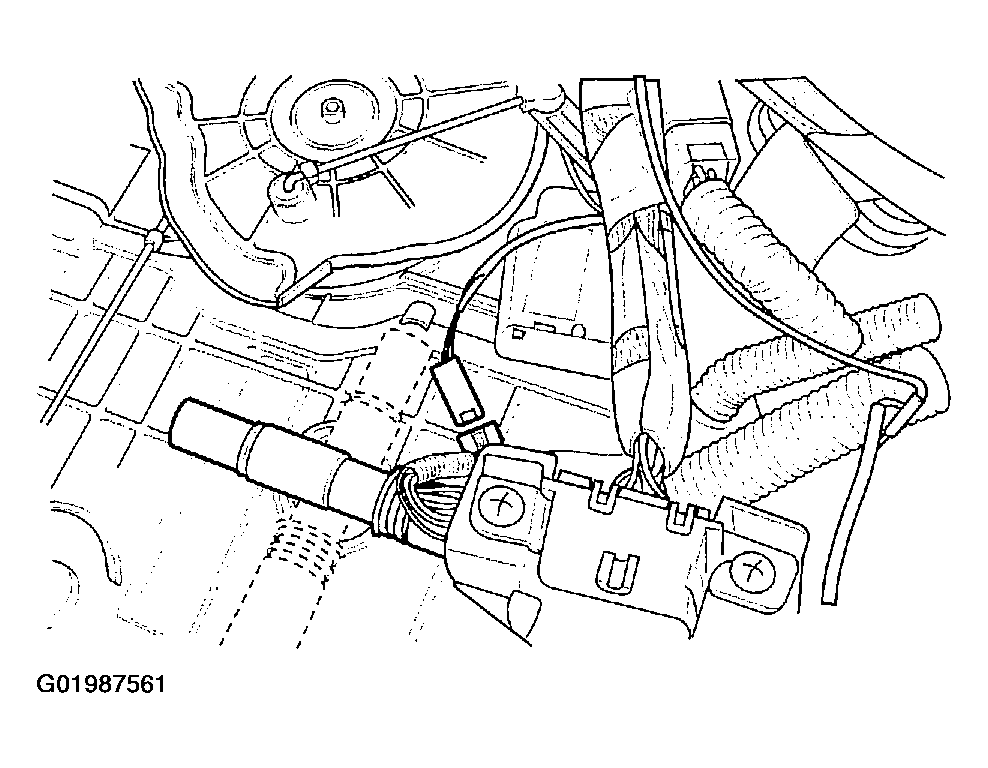

Fig 1: Removing Screws Securing In-Car Temperature Sensor With Tube
G01987561Courtesy of SUZUKI OF AMERICA CORP.
