High-Blower Relay Removal

WARNING: This page is about a different car, the 2004 Suzuki Verona. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
The relay is located in front of the blower motor.
Remove the glove box lower panel cover. Refer to GLOVE BOX REMOVAL .
Separate the relay from the connector.
Remove the screws with the high blower relay.

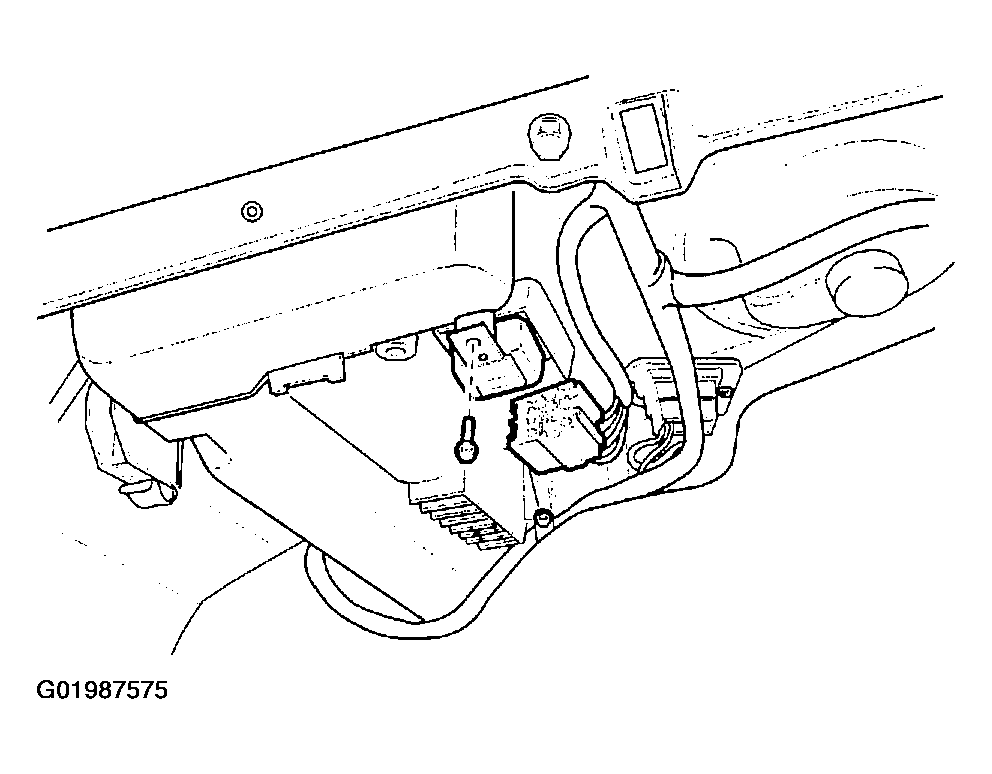

Fig 1: Removing Screws With High Blower Relay

Courtesy of SUZUKI OF AMERICA CORP.
