Heater Core Removal

WARNING: This page is about a different car, the 2004 Suzuki Verona. However, it is still accessible from the selected car via links, so may be relevant.

Remove the aircon module from the vehicle. Refer to A/C Module Removal .
Remove the wiring harness from the aircon module.

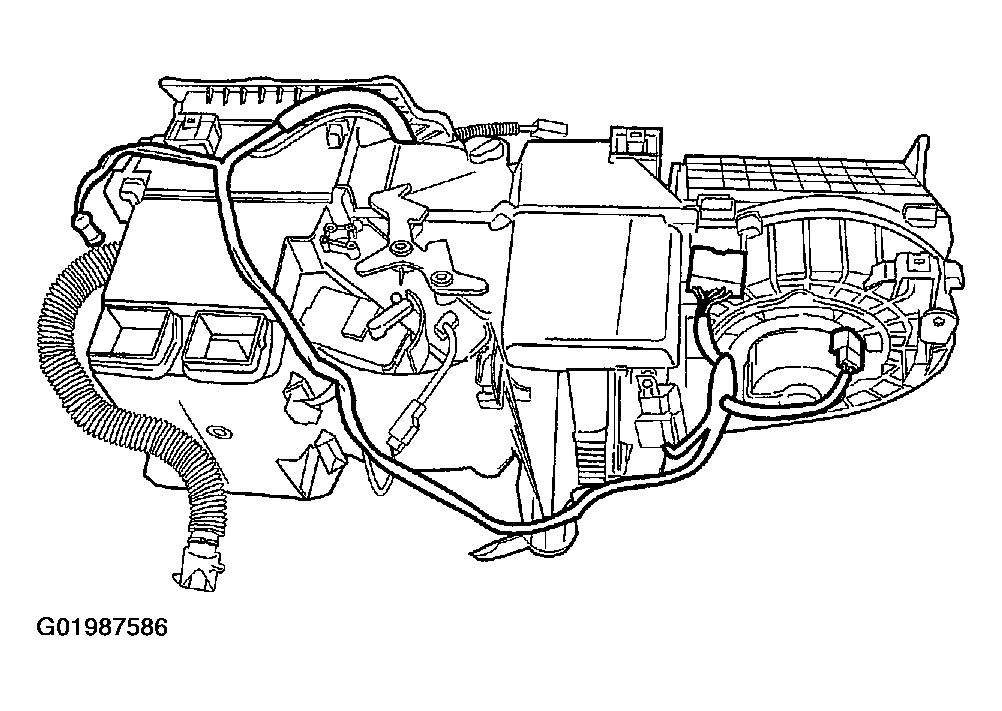

Fig 1: Removing Wiring Harness From Aircon Module

G01987586

Courtesy of SUZUKI OF AMERICA CORP.

Remove the temperature motor lever and actuator rod.

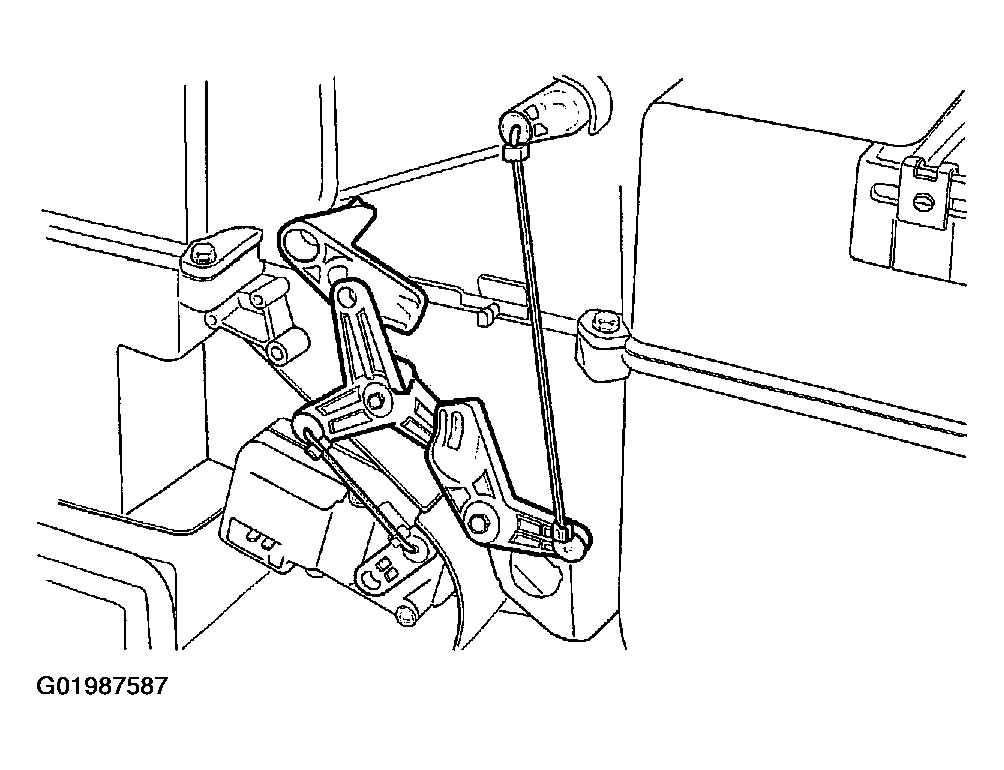

Fig 2: Removing Temperature Motor Lever & Actuator Rod

G01987587

Courtesy of SUZUKI OF AMERICA CORP.

Remove the mode motor ventilation link.

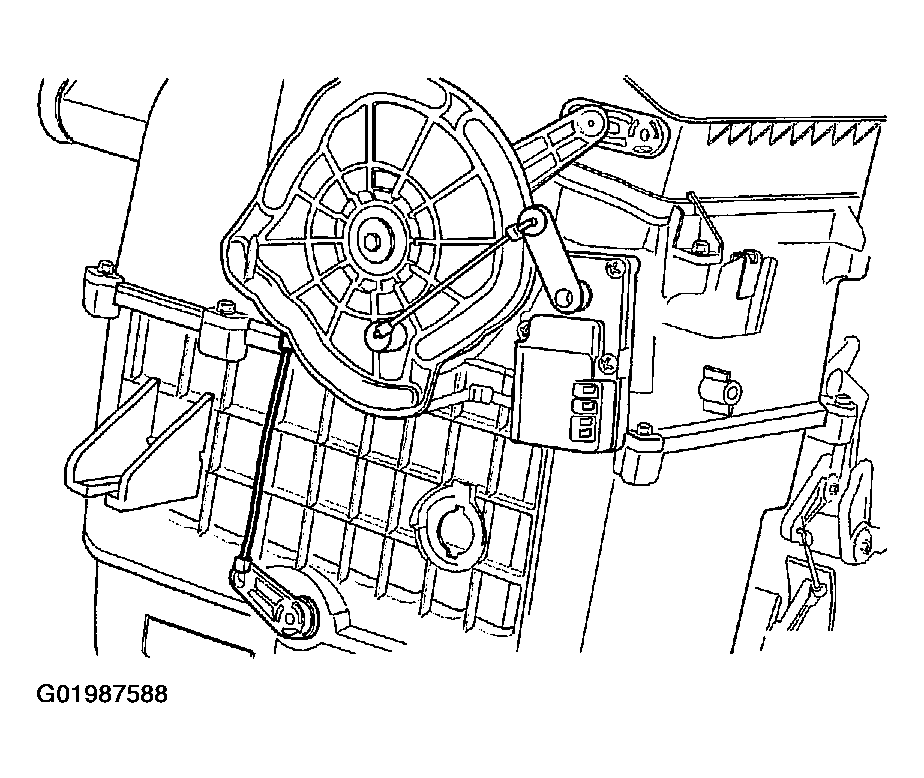

Fig 3: Removing Mode Motor Ventilation Link

G01987588

Courtesy of SUZUKI OF AMERICA CORP.

Remove the air inlet case with the screws.

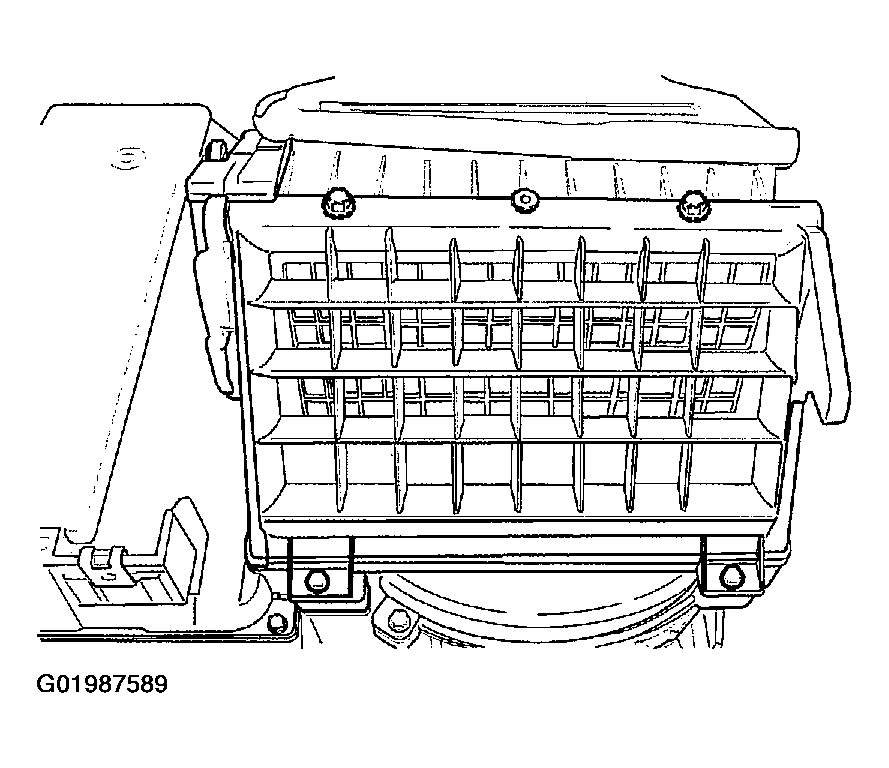

Fig 4: Removing Air Inlet Case With Screws

G01987589

Courtesy of SUZUKI OF AMERICA CORP.

Remove the evaporator core case cover.

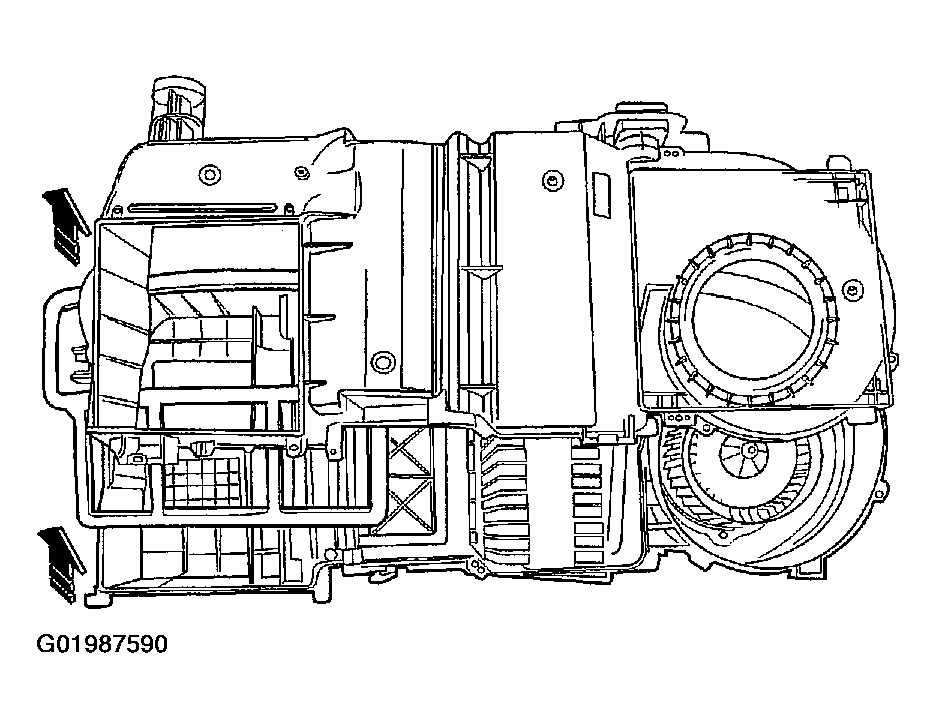

Fig 5: Removing Evaporator Core Case Cover

G01987590

Courtesy of SUZUKI OF AMERICA CORP.

Remove the heater core cover with the screws.

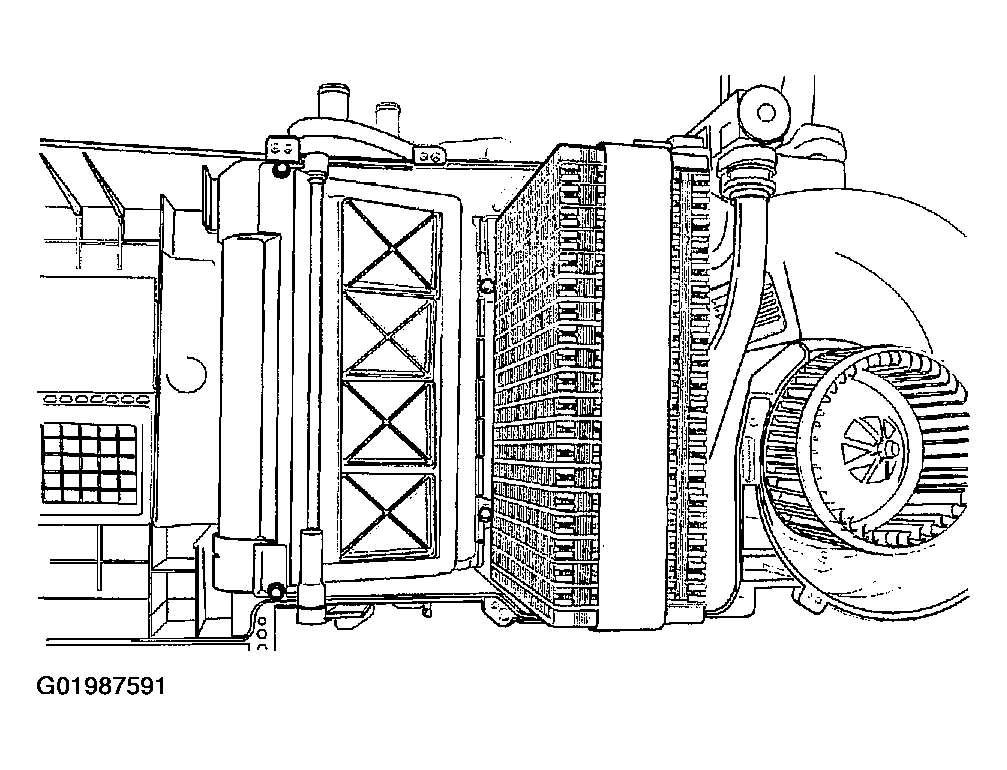

Fig 6: Removing Heater Core Cover With Screws

G01987591

Courtesy of SUZUKI OF AMERICA CORP.

Remove the heater core clip.

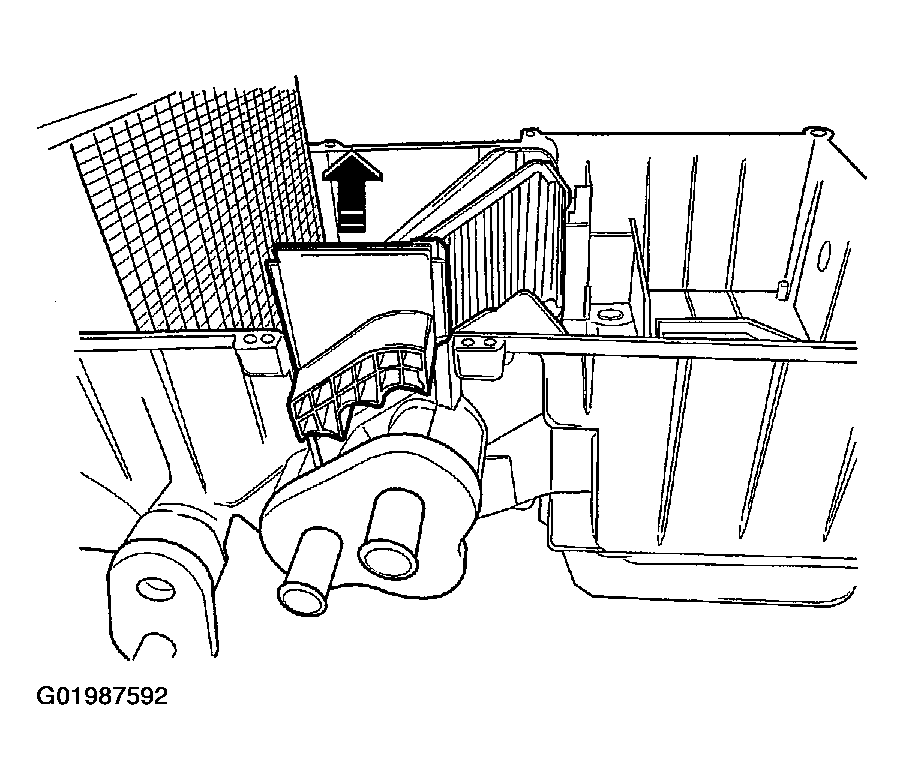

Fig 7: Removing Heater Core Clip

G01987592

Courtesy of SUZUKI OF AMERICA CORP.

Remove the heater core from the case.

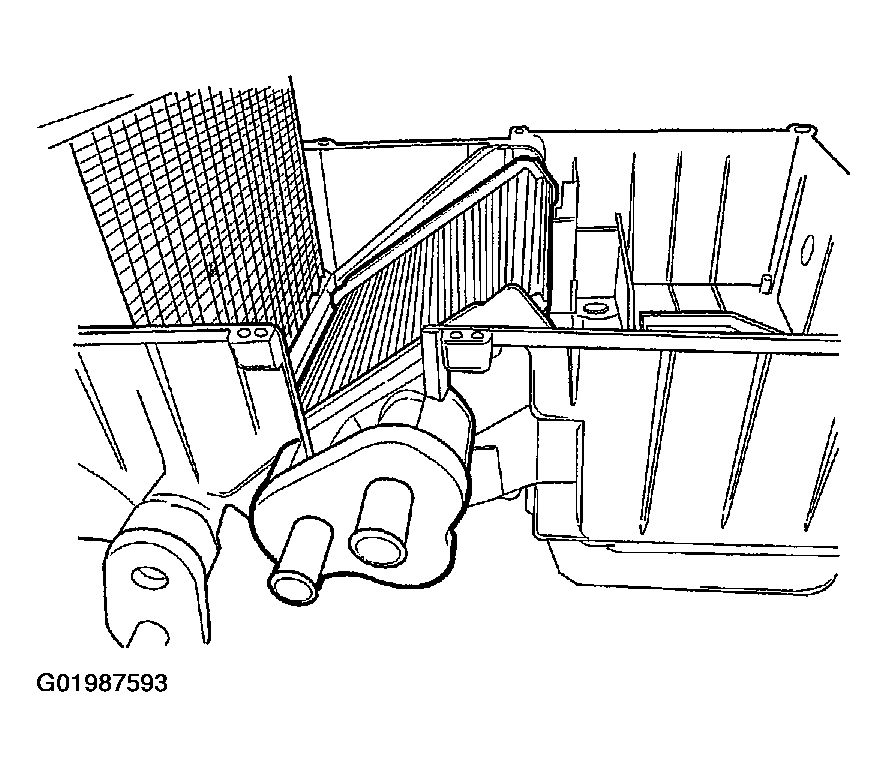

Fig 8: Removing Heater Core From Case

G01987593

Courtesy of SUZUKI OF AMERICA CORP.
