Coolant Temperature Sensor Removal

WARNING: This page is about a different car, the 2004 Suzuki Verona. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Remove the glove box lower panel cover. Refer to GLOVE BOX REMOVAL .
Turn the sensor to release it from the aircon module.
Disconnect the electrical connector.

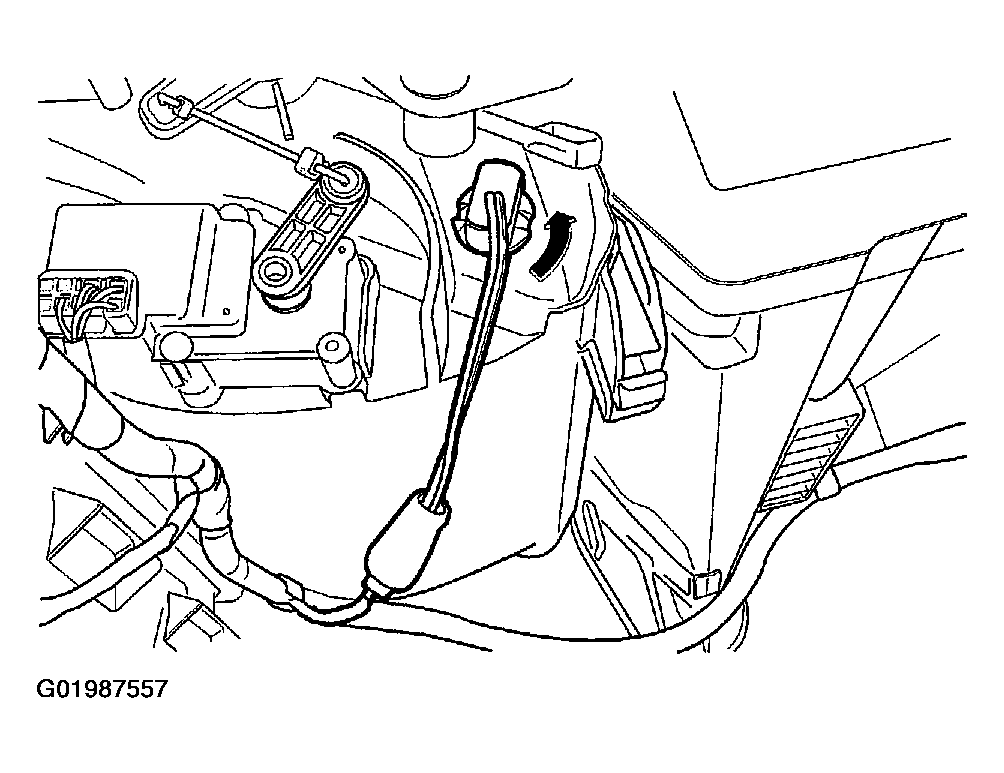

Fig 1: Disconnecting Electrical Connector

Courtesy of SUZUKI OF AMERICA CORP.
