Motor Control Table

WARNING: This page is about a different car, the 2004 Suzuki Verona. However, it is still accessible from the selected car via links, so may be relevant.

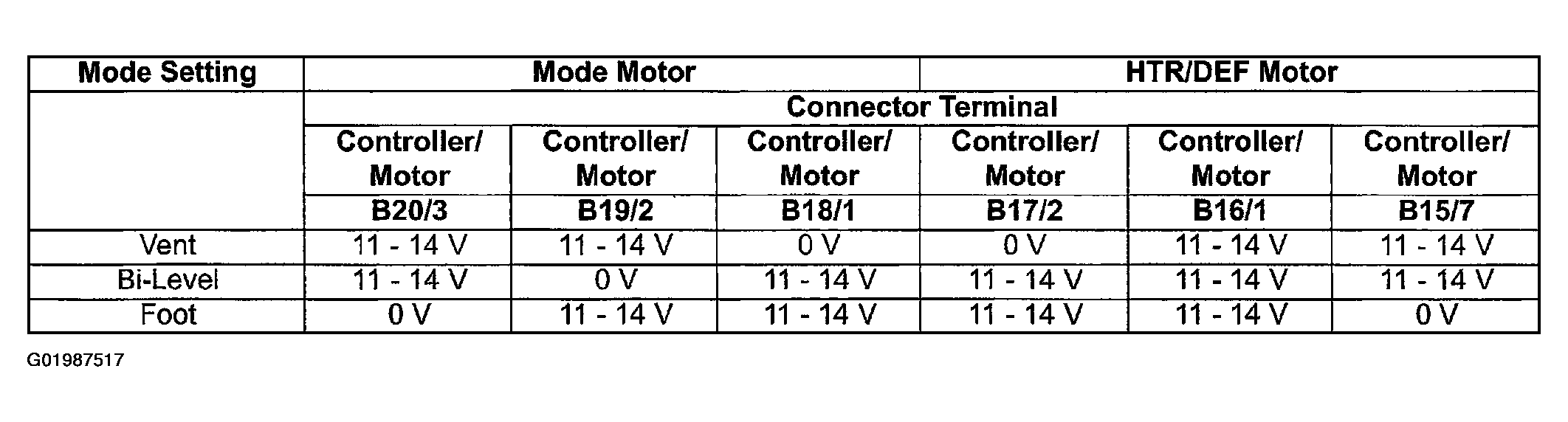

Fig 1: Identifying Motor Control Table (1 Of 2)
G01987517Courtesy of SUZUKI OF AMERICA CORP.

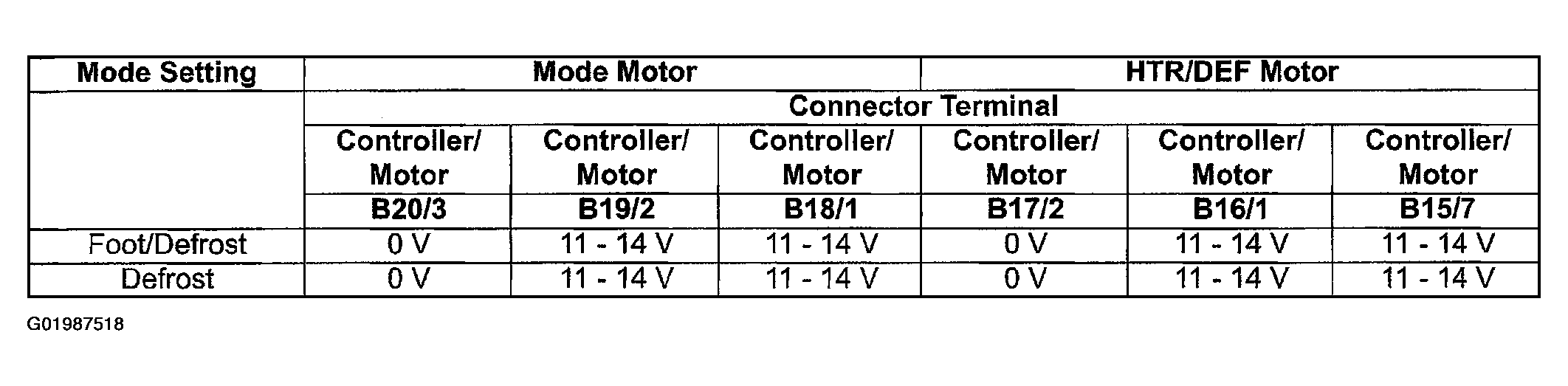

Fig 2: Identifying Motor Control Table (2 Of 2)
G01987518Courtesy of SUZUKI OF AMERICA CORP.
