Mode Controls Do Not Work

WARNING: This page is about a different car, the 2004 Suzuki Verona. However, it is still accessible from the selected car via links, so may be relevant.

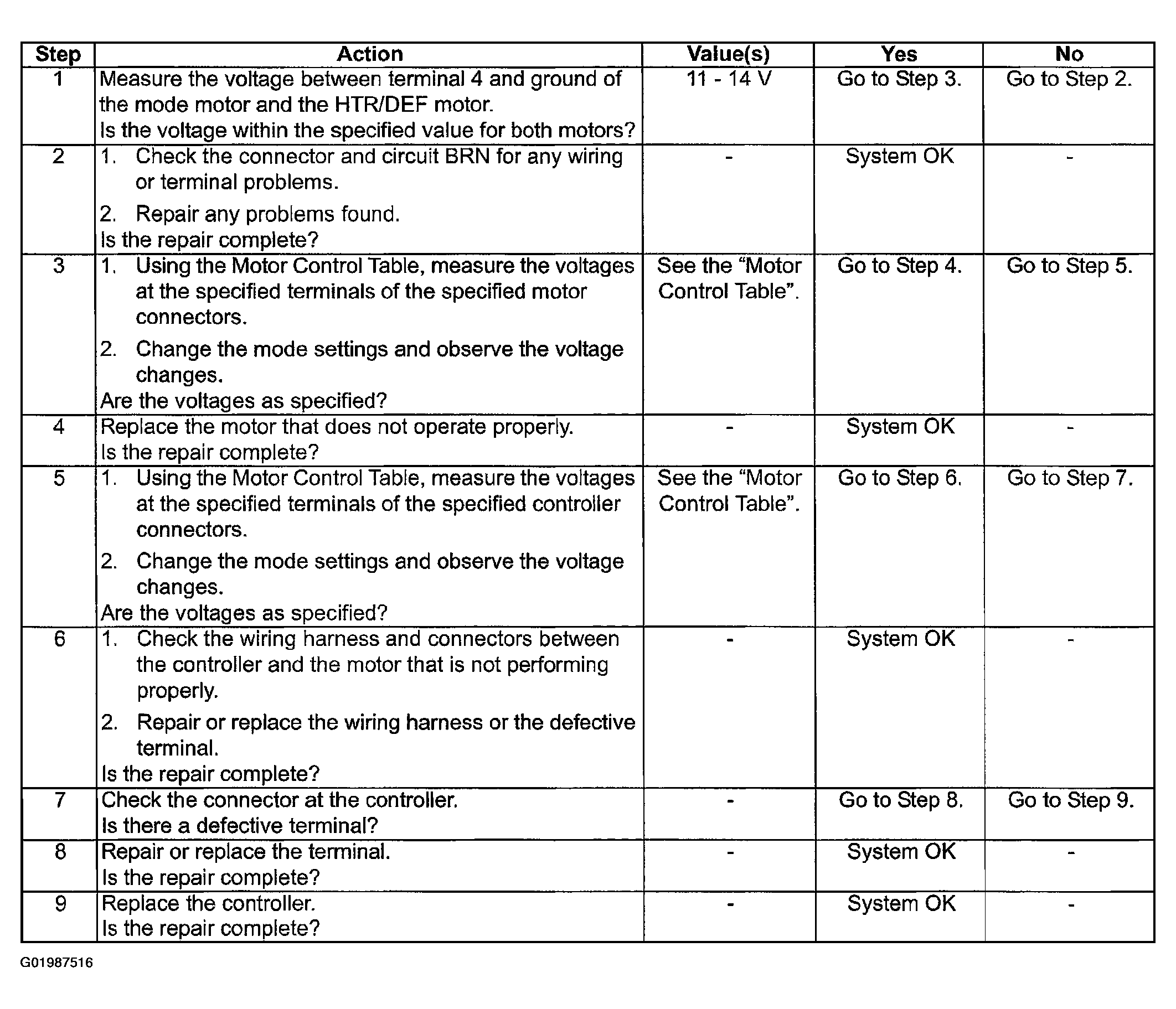

Fig 1: Identifying Controls Do Not Work Table
G01987516Courtesy of SUZUKI OF AMERICA CORP.
