Controller Does Not Illuminate When Light Switch Is ON
WARNING: This page is about a different car, the 2004 Suzuki Verona. However, it is still accessible from the selected car via links, so may be relevant.

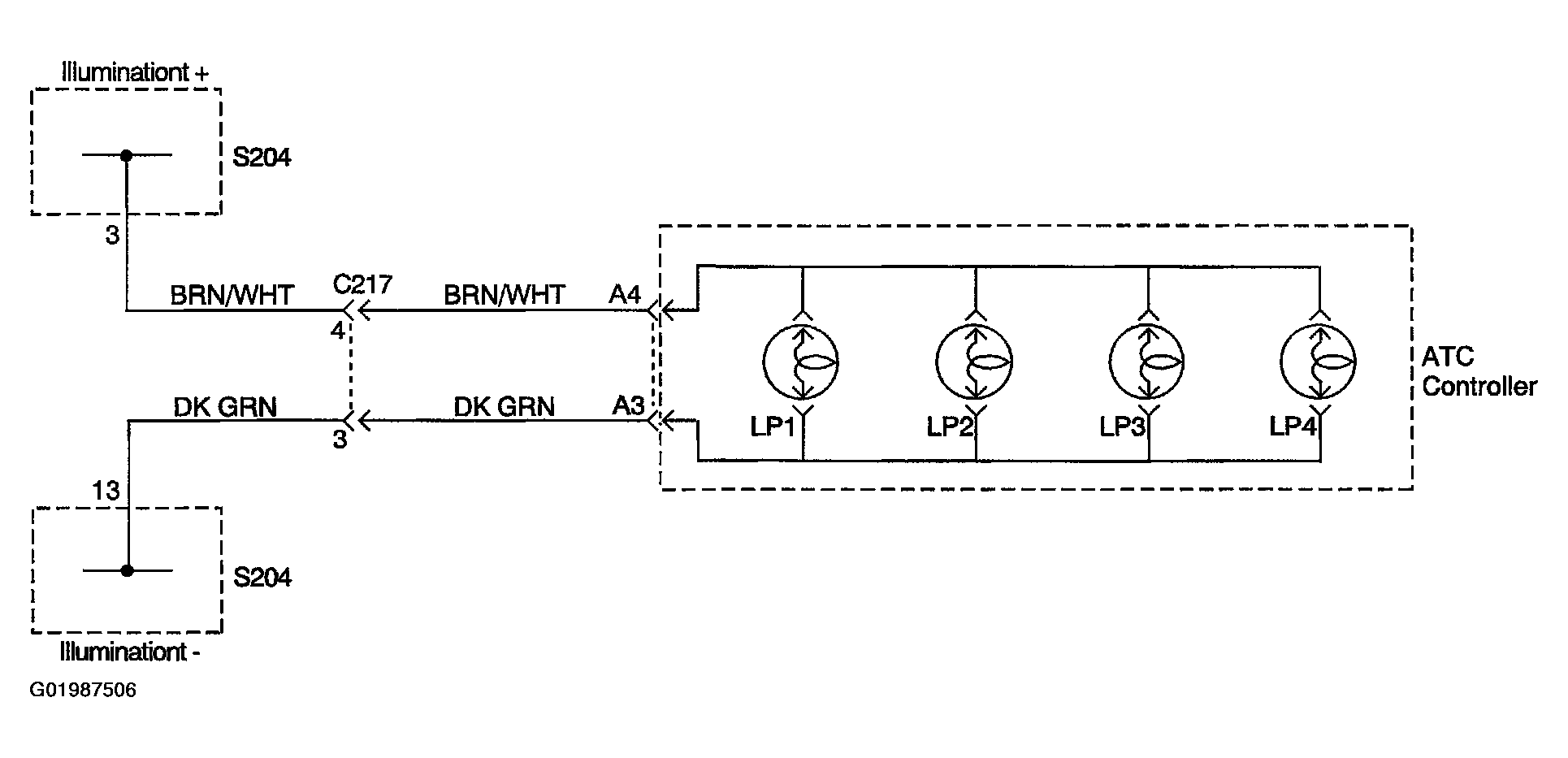

Fig 1: Controller Does Not Illuminate When Light Switch Is ON Diagram
Courtesy of SUZUKI OF AMERICA CORP.

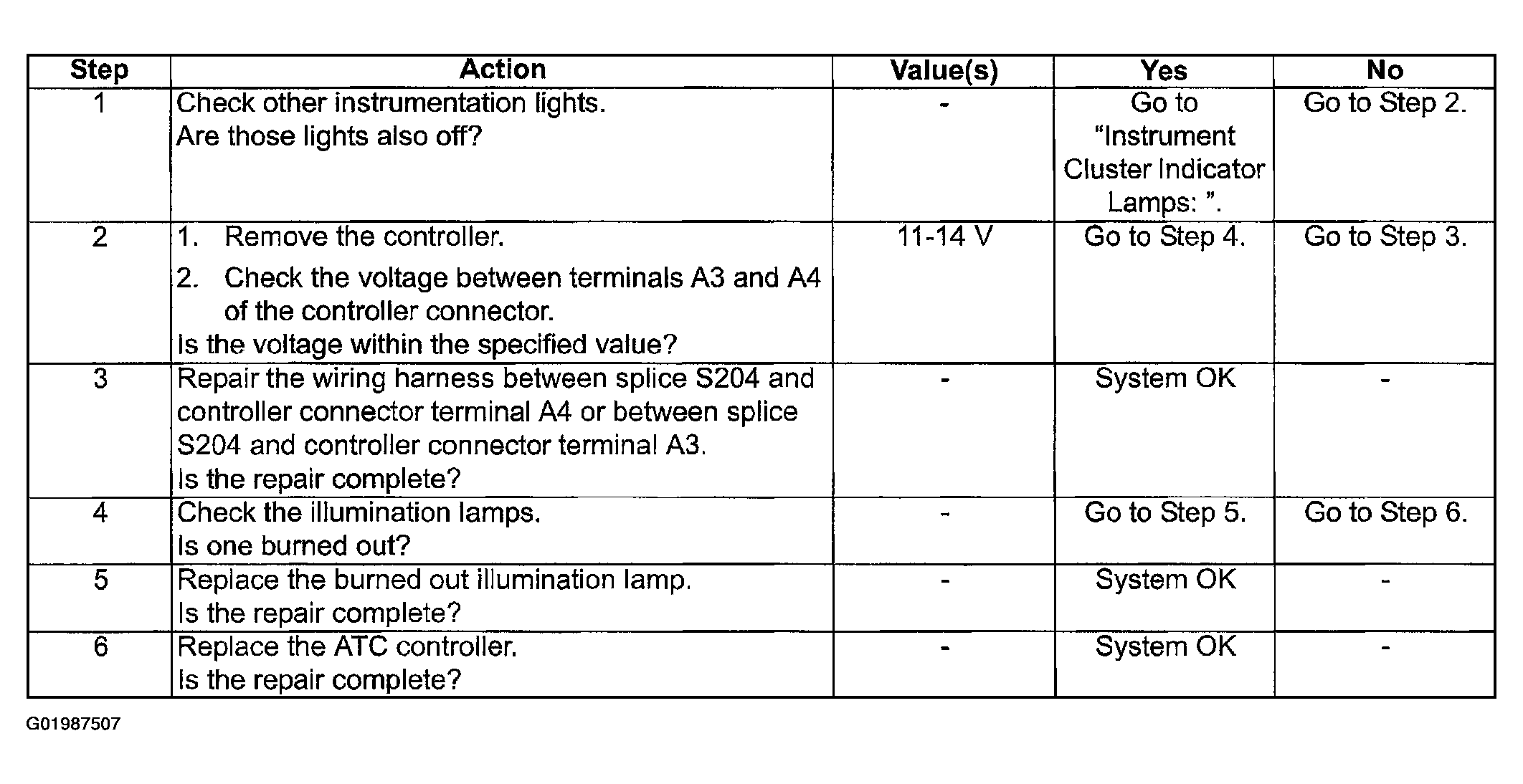

Fig 2: Identifying Controller Does Not Illuminate When Light Switch Is On Diagnostic Table
