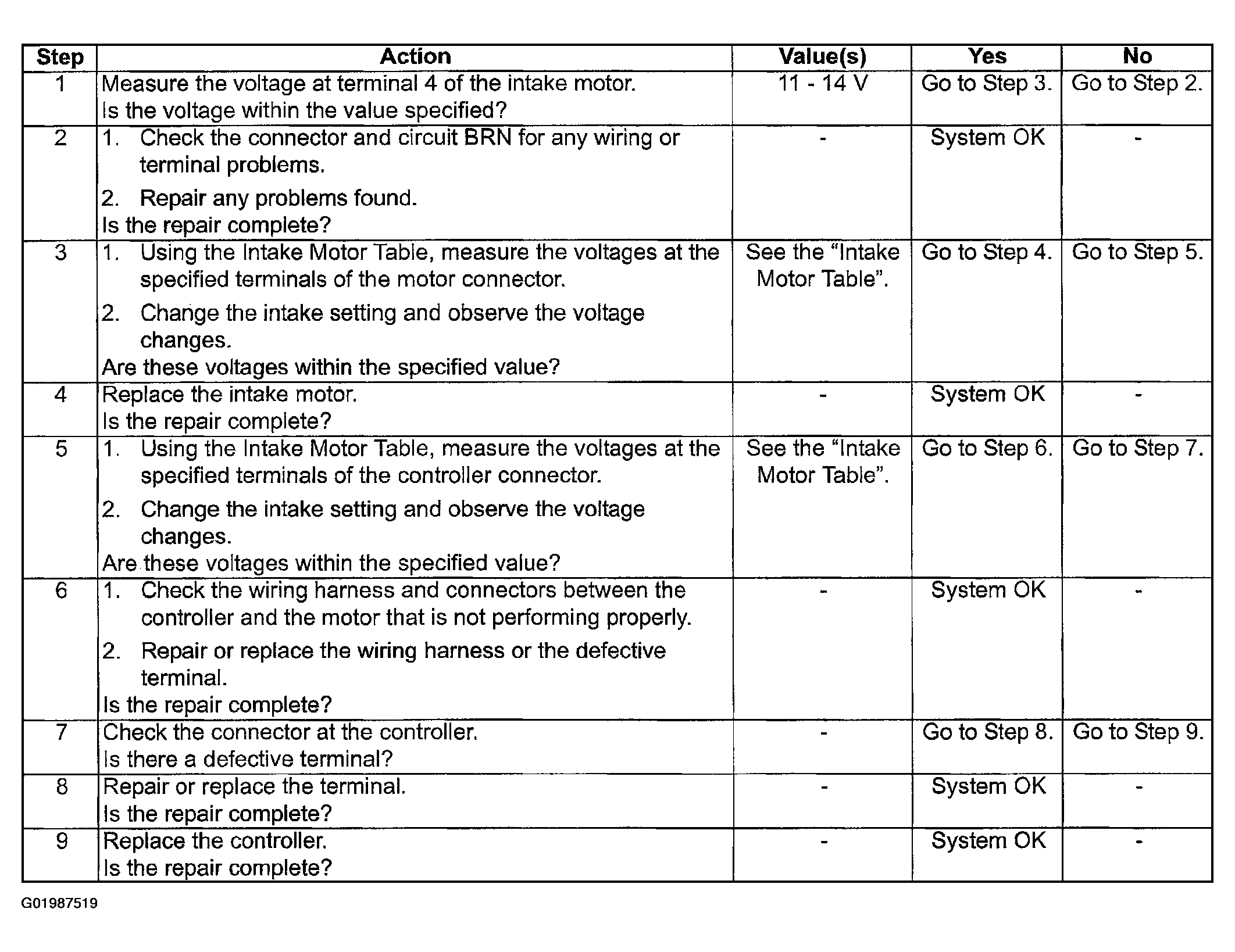

Air Source Selection Not Controlled: Notes
WARNING: This page is about a different car, the 2004 Suzuki Verona. However, it is still accessible from the selected car via links, so may be relevant.
Refer to PRESSURE-TEMPERATURE RELATIONSHIP OF R-134A for the electrical schematic diagram of the circuits described in this procedure.
