Condenser Installation
WARNING: This page is about a different car, the 2004 Suzuki Verona. However, it is still accessible from the selected car via links, so may be relevant.
- Make sure the condenser rubber mounts are in place.
- Install the condenser into the vehicle. The lower mount shock protectors must fit into the holes provided.
- Move the condenser forward into the radiator support mount holes.

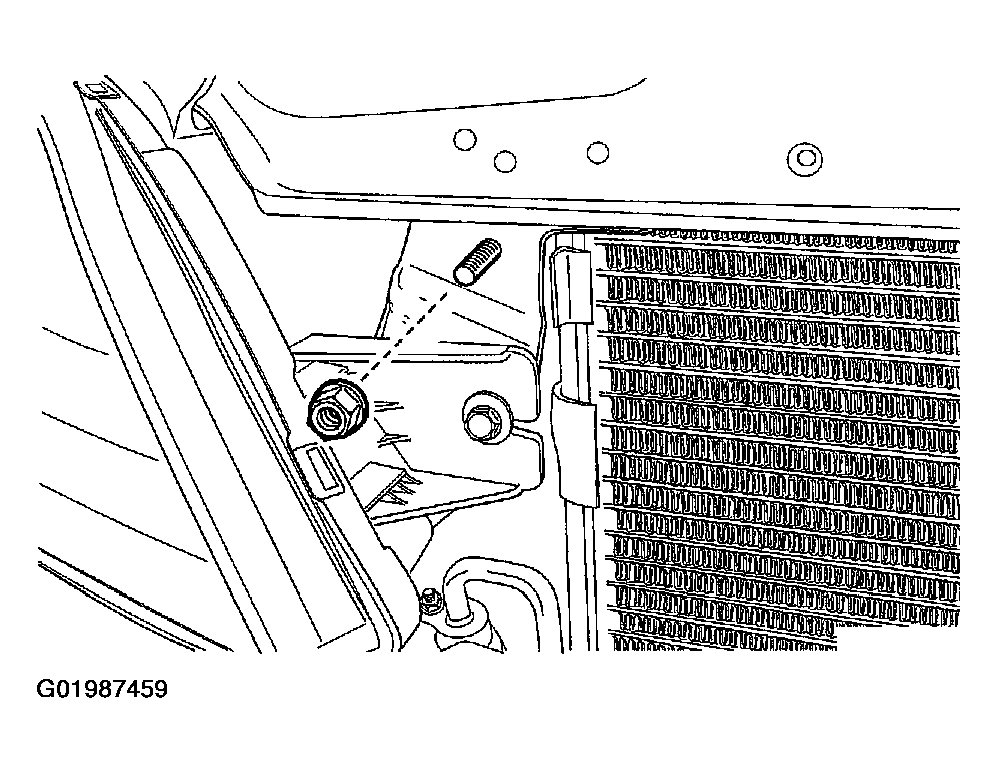

- Install the upper condenser mount nuts and the washers.
- Tighten the upper condenser mount nuts to 4 N.m (35 lb-in).
- Install a new O-ring onto the high-pressure pipe mounting block fitting on the receiver-dryer.
- Install the high-pressure pipe into the receiver-dryer.

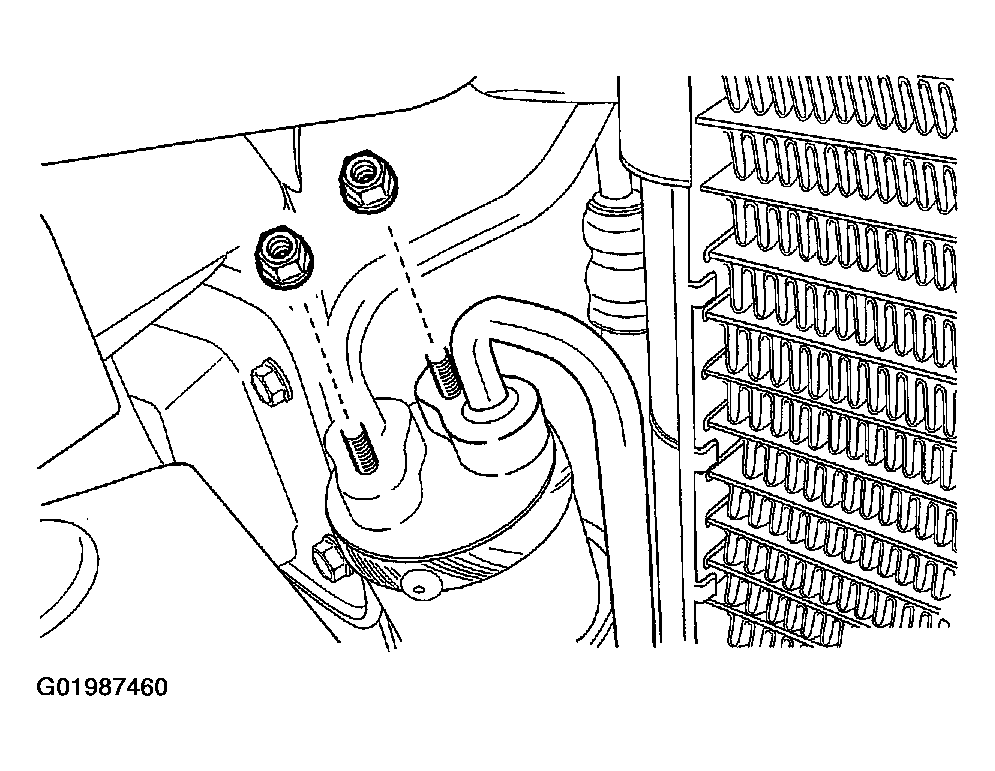

- Install the high-pressure pipe-to-receiver-dryer connecting block nut.
- Tighten the high-pressure pipe-to receiver-dryer connecting block nut to 10 N.m (89 lb-in).
- Install a new O-ring onto the discharge hose connecting block fitting.
- Install the discharge hose fitting into the condenser.

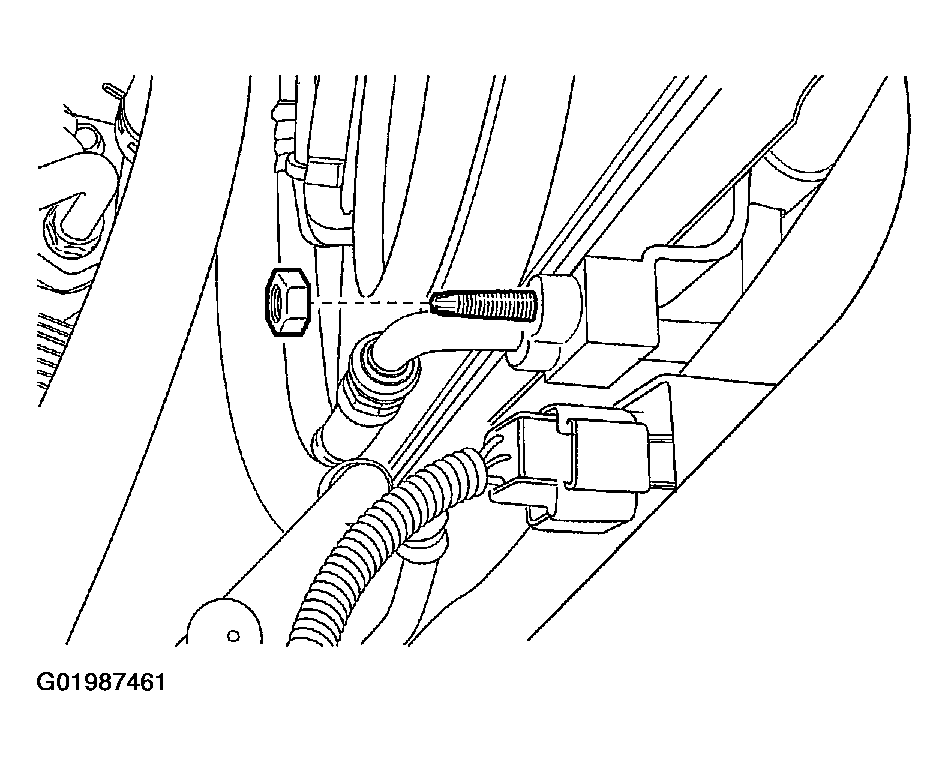

- Install the discharge hose connecting block-to-condenser retaining nut at the condenser connecting block.
- Tighten the discharge hose connecting block-to-condenser nut to 16 N.m (12 lb-ft).
- Install the radiator. Refer to RADIATOR INSTALLATION .
- Evacuate and recharge the A/C system. Refer to Discharging, Adding Oil, Evacuating, and Charging Procedures for A/C System .
- Connect the negative battery cable.
- Operate the HVAC control to verify the proper function of the heating and cooling systems.
