Clutch Plate and Hub Assembly Disassembly

WARNING: This page is about a different car, the 2004 Suzuki Verona. However, it is still accessible from the selected car via links, so may be relevant.

Tools Required

J-33013-B Hub and Drive Plate Remover/Installer
J-33022 Shaft Nut Socket
J-33027 Clutch Hub Holding Tool
J-34992 Compressor Holding Fixture

Remove the compressor. Refer to Compressor Removal .
Install the compressor holding fixture J-34992 to the compressor and hold the compressor holding fixture using a bench vise.
Use the clutch hub holding tool J-33027 to keep the clutch drive plate and the hub assembly from turning.

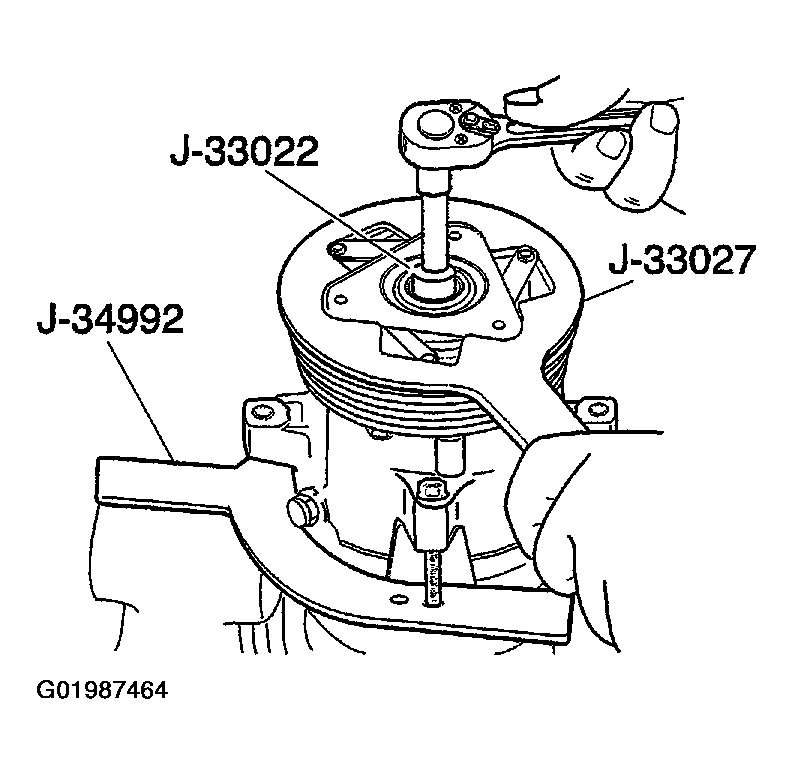

Remove the shaft nut using the shaft nut socket J-33022.

Fig 1: Removing Shaft Nut Using Shaft Nut Socket

Courtesy of SUZUKI OF AMERICA CORP.

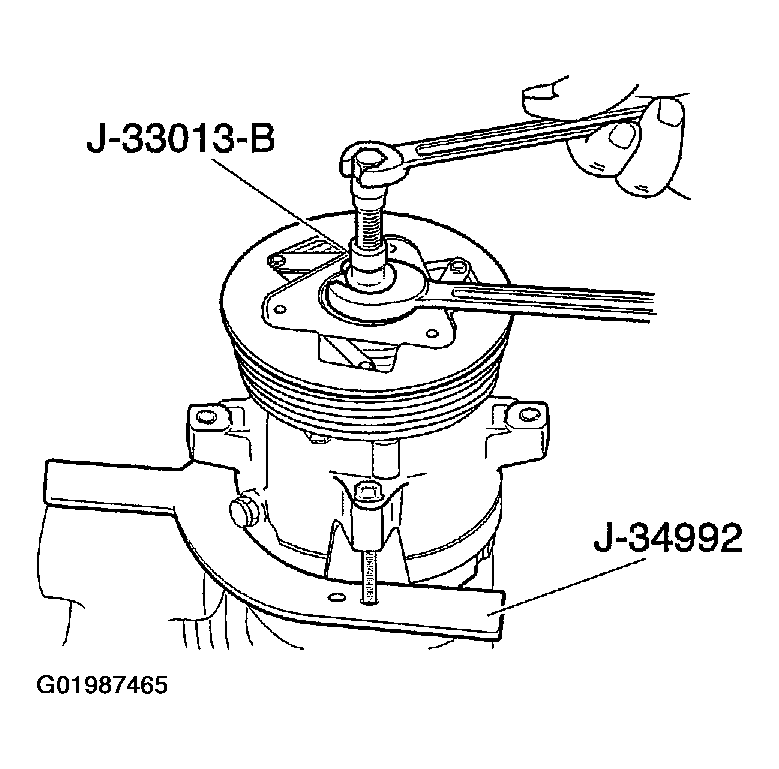

Thread the hub and drive plate remover J-33013-B into the hub. Hold the body of the remover with a wrench and turn the center screw into the remover body to remove the clutch drive plate and the hub assembly.
Remove the clutch hub key. Retain the key for assembly.

Fig 2: Removing Clutch Hub Key

Courtesy of SUZUKI OF AMERICA CORP.
