A/C Pressure Transducer Removal

WARNING: This page is about a different car, the 2004 Suzuki Verona. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Release the connector lock and pull the transducer wire connector out.

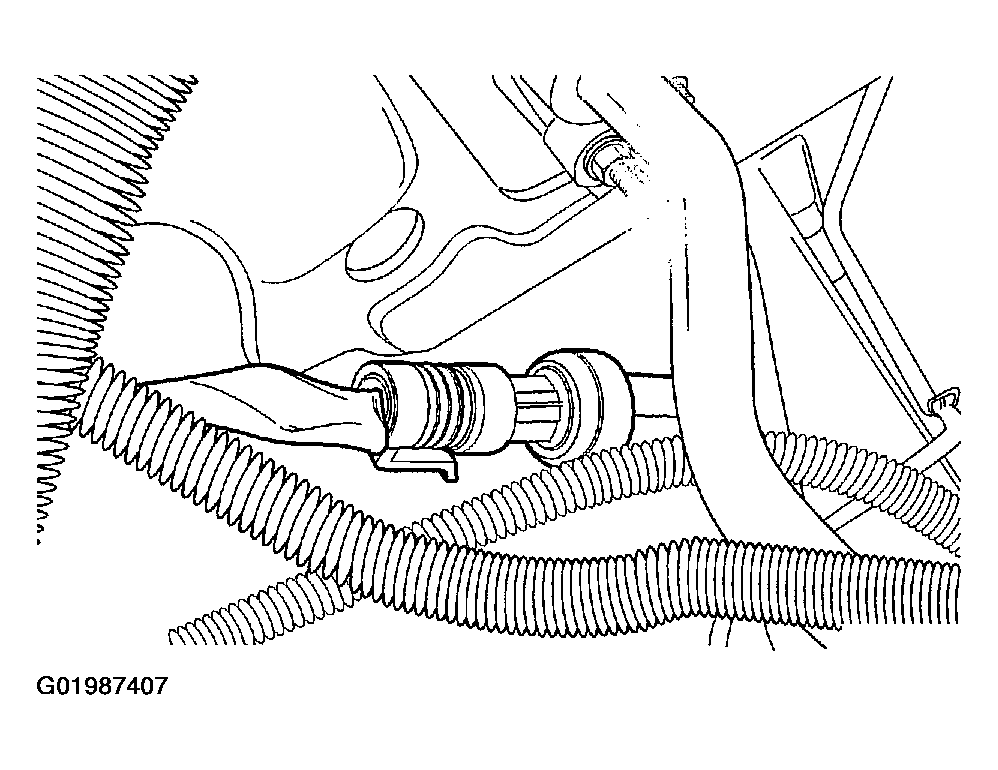

Fig 1: Releasing Connector Lock & Pulling Transducer Wire Connector Out

Courtesy of SUZUKI OF AMERICA CORP.

Remove the transducer with a wrench.
Discard the O-ring seal.

Fig 2: Discarding O-Ring Seal

Courtesy of SUZUKI OF AMERICA CORP.
