A/C High-Pressure Pipe Line Removal

WARNING: This page is about a different car, the 2004 Suzuki Verona. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Recover the refrigerant. Refer to Discharging, Adding Oil, Evacuating, and Charging Procedures for A/C System .
Remove the nut at the compressor hose connecting block.
Disconnect the electrical connector at the pressure transducer.

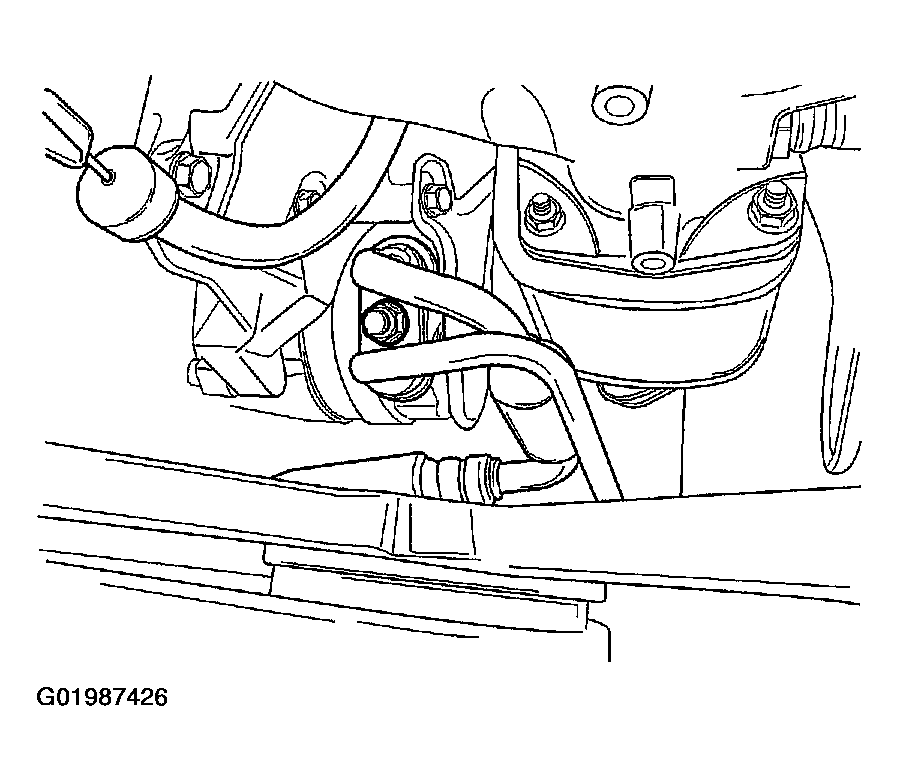

Fig 1: Disconnecting Electrical Connector At Pressure Transducer

G01987426

Courtesy of SUZUKI OF AMERICA CORP.

Remove the nut at the condenser connecting block.

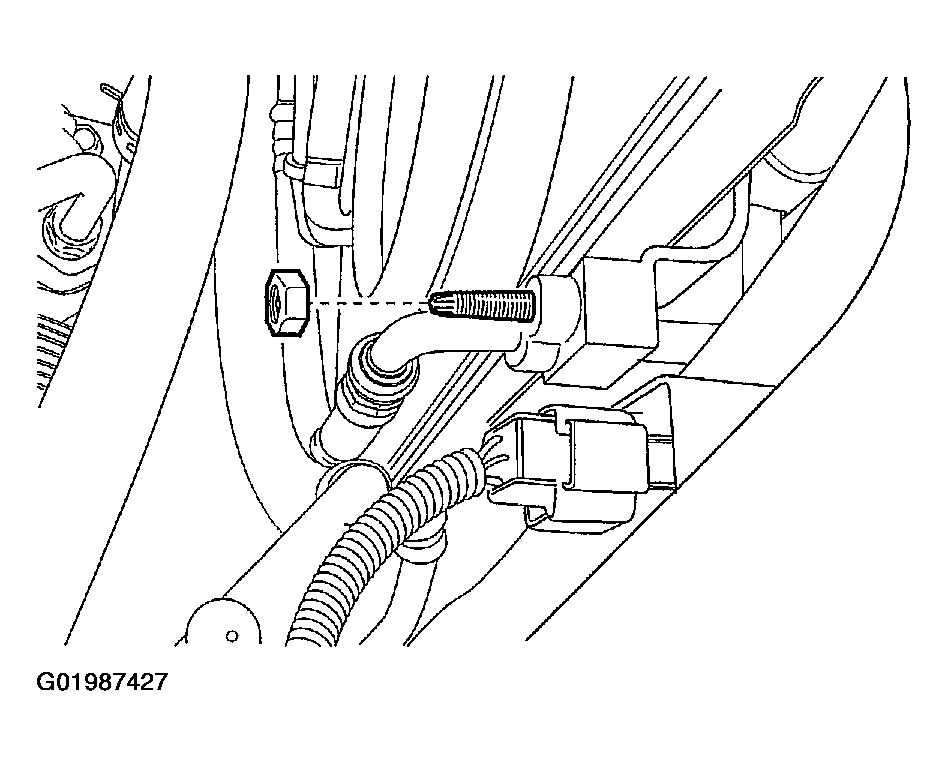

Fig 2: Removing Nut At Condenser Connecting Block

G01987427

Courtesy of SUZUKI OF AMERICA CORP.

Remove the high-pressure pipe-to-receiver-dryer connecting block retaining nut.

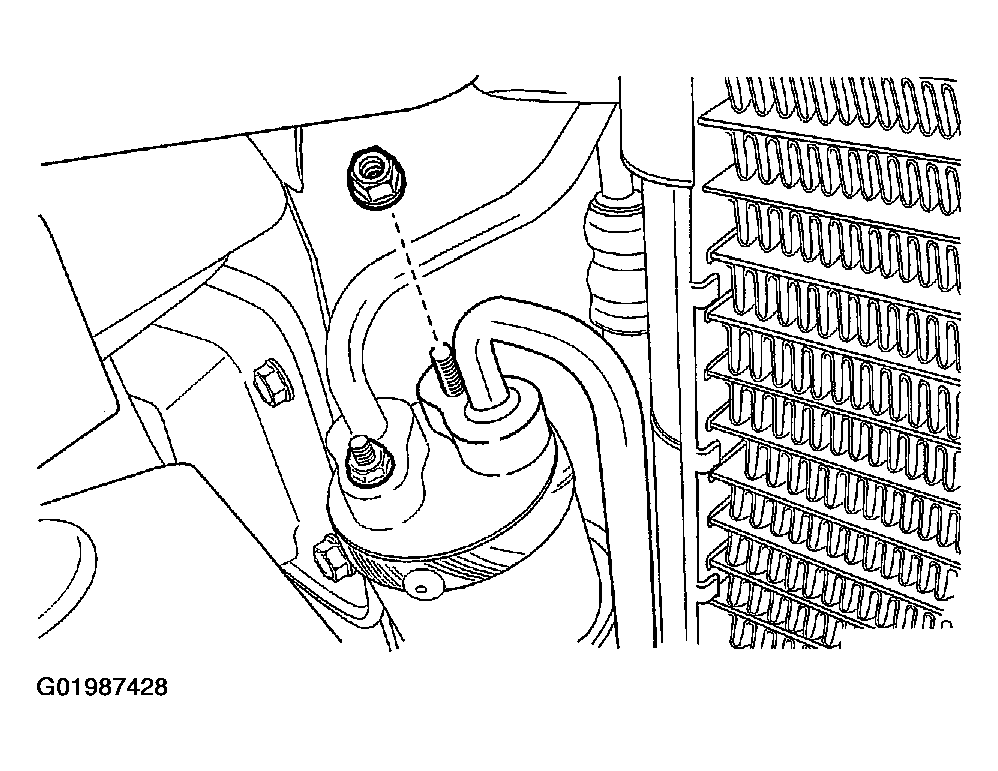

Fig 3: Removing High-Pressure Pipe-To-Receiver-Dryer Connecting Block Retaining Nut

G01987428

Courtesy of SUZUKI OF AMERICA CORP.

Remove the surge tank. Refer to SURGE TANK REMOVAL .
Remove the high-pressure pipe-to-evaporator flange connecting block retaining nut.

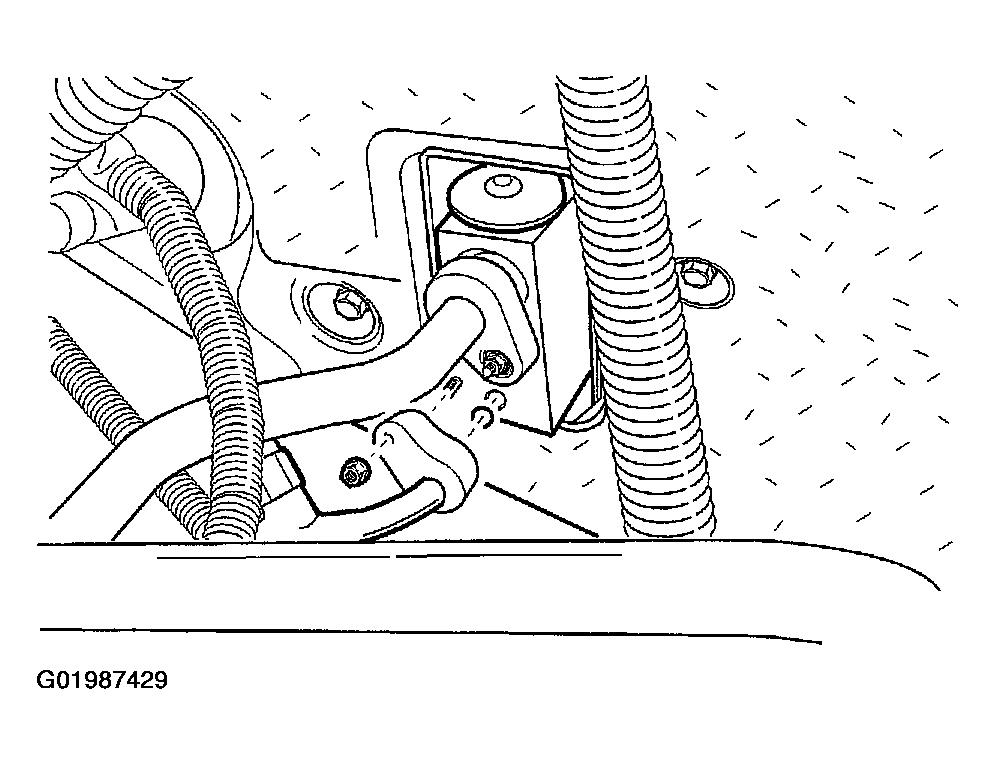

Fig 4: Removing High-Pressure Pipe-To-Evaporator Flange Connecting Block Retaining Nut

G01987429

Courtesy of SUZUKI OF AMERICA CORP.

Remove the bolt and the nut which secure the clamps that hold the high pressure pipe to the vehicle.
Remove the high-pressure pipe from the vehicle.
Cap the opening at the receiver-dryer to prevent contamination.

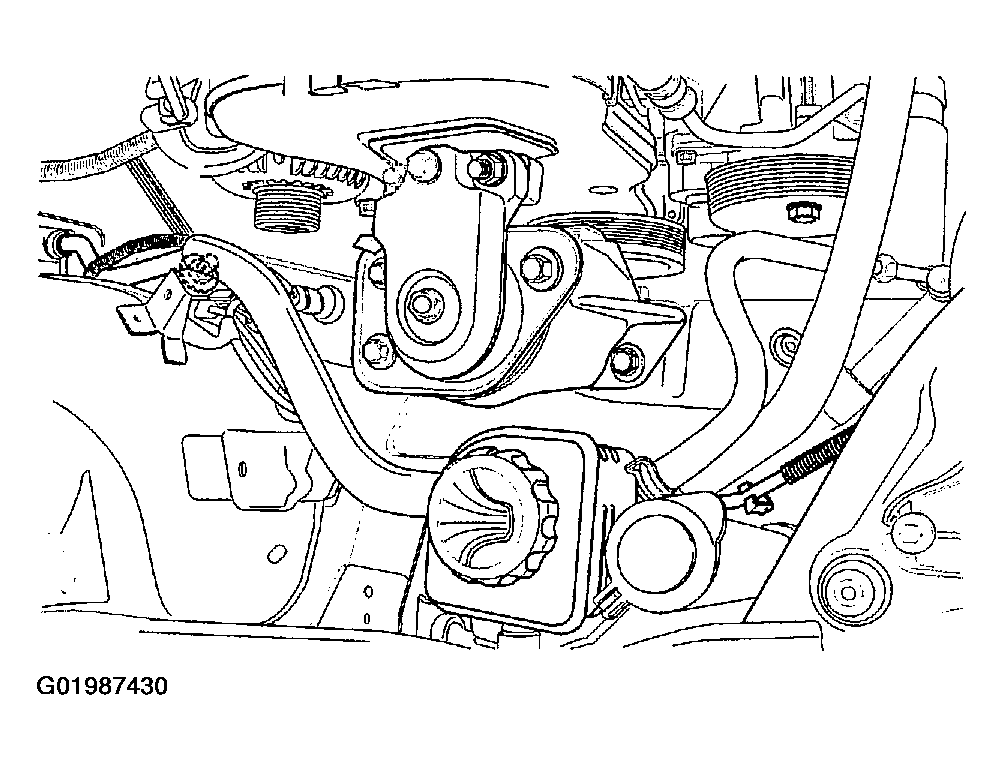

Fig 5: Capping Opening At Receiver-Dryer

G01987430

Courtesy of SUZUKI OF AMERICA CORP.
