A/C Expansion Valve Installation

WARNING: This page is about a different car, the 2004 Suzuki Verona. However, it is still accessible from the selected car via links, so may be relevant.

Clean the O-ring surface areas of dirt or contamination.
Install the new O-rings on the evaporator lines.
Install a new expansion valve onto the evaporator lines.
Insert the expansion valve bolts through the expansion valve into the mount surface of the evaporator flange.
1. Tighten the expansion valve bolts to 10 N.m (89 lb-in).

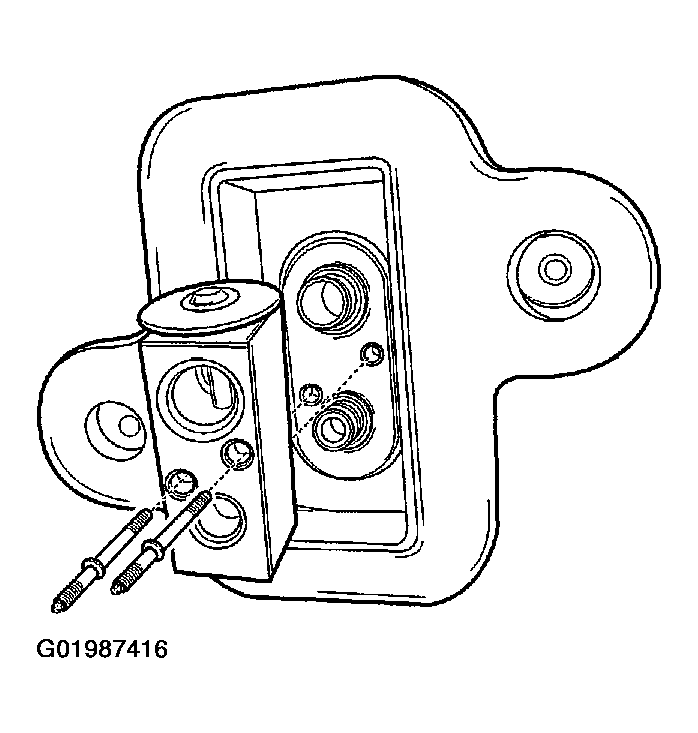

Fig 1: Inserting Expansion Valve Bolts Through Expansion Valve Into Mount Surface

Courtesy of SUZUKI OF AMERICA CORP.

Install the retaining nuts that secure the suction hose and the liquid evaporator pipe blocks at the fire wall.

Tighten the suction hose and the liquid evaporator pipe retaining nuts to 10 N.m (89 lb-in).

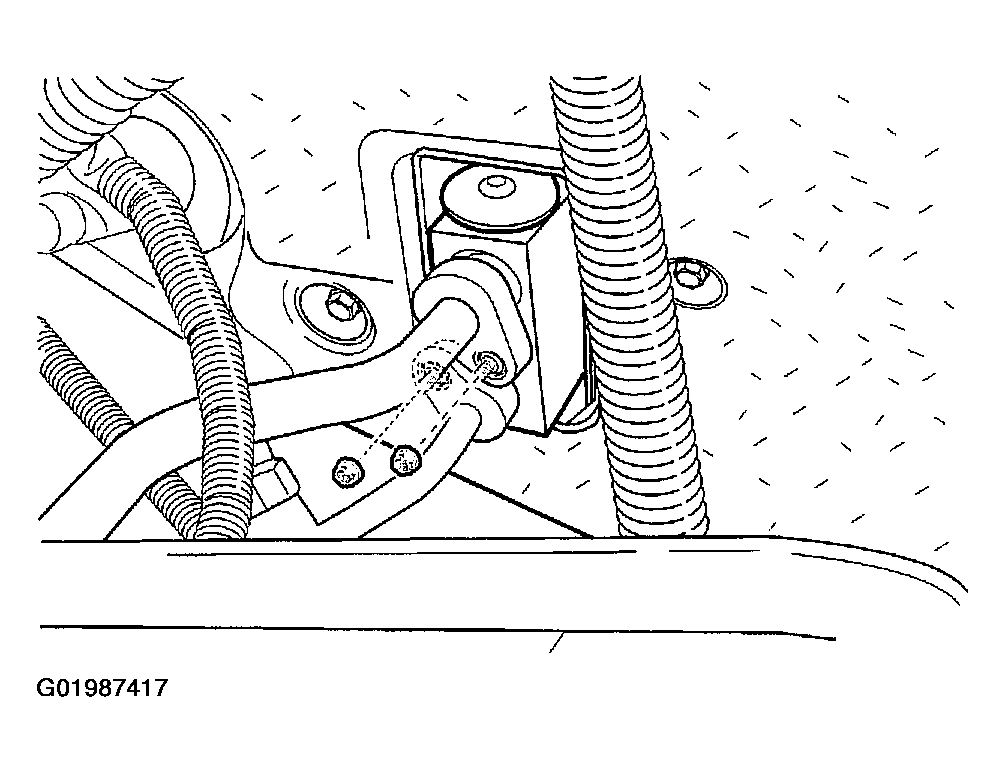

Fig 2: Installing Retaining Nuts Securing Suction Hose

Courtesy of SUZUKI OF AMERICA CORP.
