A/C Discharge Hose-Compressor to Condenser Removal

WARNING: This page is about a different car, the 2004 Suzuki Verona. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Recover the refrigerant. Refer to Discharging, Adding Oil, Evacuating, and Charging Procedures for A/C System .
Remove the nut at the compressor hose connecting block.

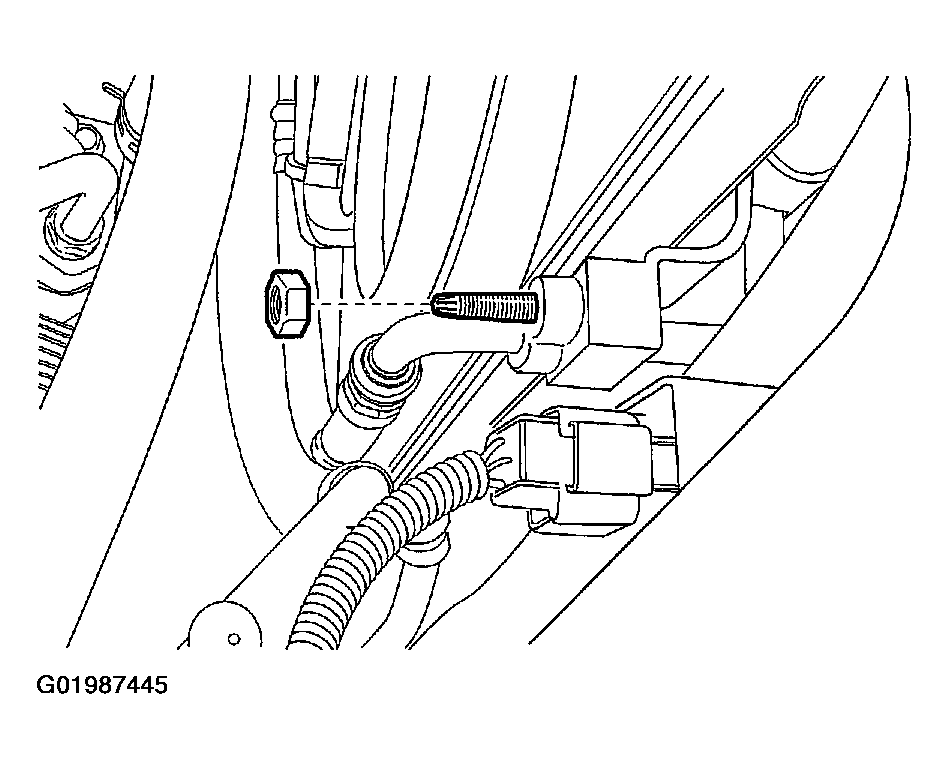

Fig 1: Removing Nut At Compressor Hose Connecting Block

Courtesy of SUZUKI OF AMERICA CORP.

Remove the nut at the condenser connecting block.
Remove the hose from the vehicle.

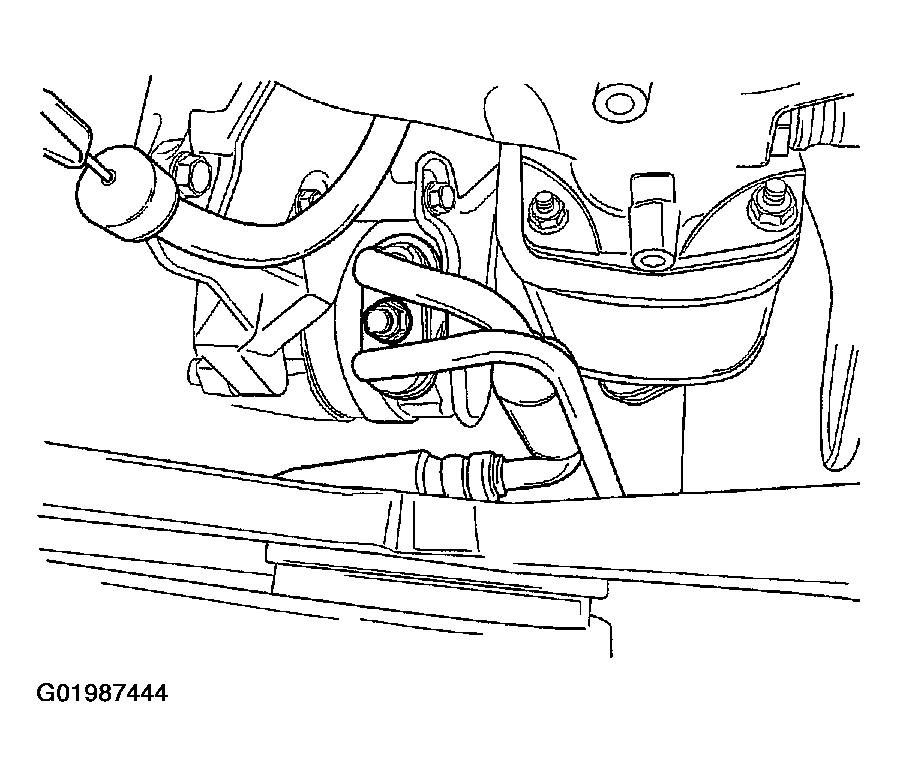

Fig 2: Removing Hose From Vehicle

Courtesy of SUZUKI OF AMERICA CORP.
