A/C Discharge Hose-Compressor to Condenser Installation

WARNING: This page is about a different car, the 2004 Suzuki Verona. However, it is still accessible from the selected car via links, so may be relevant.

Install new sealing washers at the compressor connecting block end and a new O-ring at the condenser connecting block end.
Position the hose into the vehicle, and install the nut at the condenser connecting block.
1. Tighten the discharge hose connecting block-to-condenser retaining nut to 16 N.m (12 lb-ft).

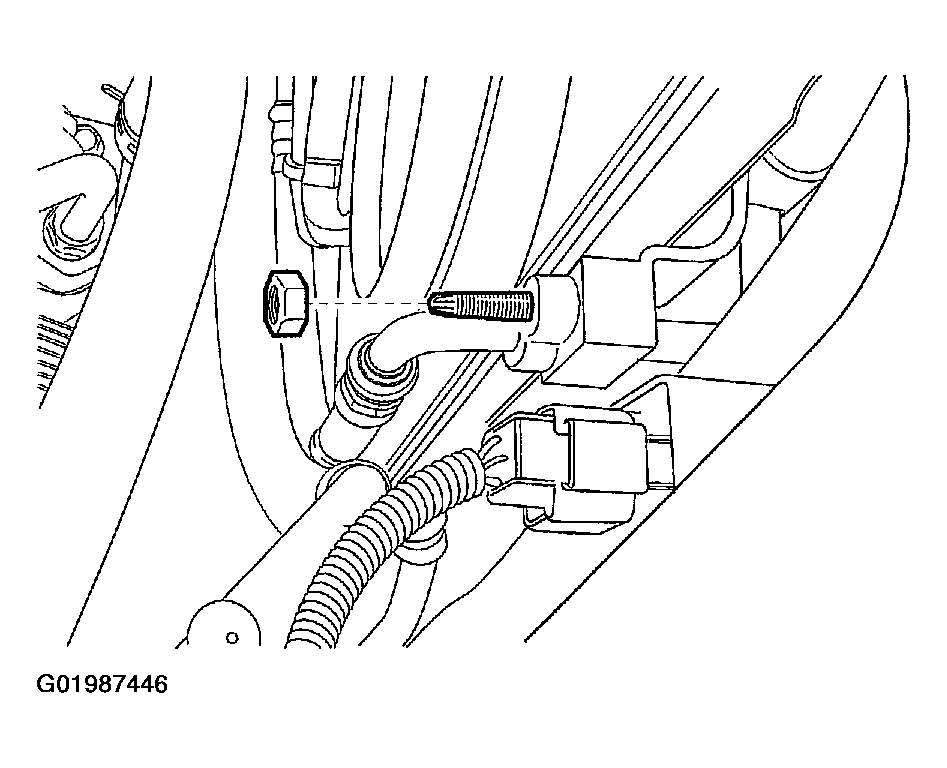

Fig 1: Installing Nut At Condenser Connecting Block

Courtesy of SUZUKI OF AMERICA CORP.

Mate the hose connecting the connecting block to the compressor, and install the retaining nut.
1. Tighten the discharge hose connecting block-to-compressor retaining nut to 38 N.m (28 lb-ft).
Evacuate and recharge the A/C system. Refer to Discharging, Adding Oil, Evacuating, and Charging Procedures for A/C System .
Connect the negative battery cable.
