A/C Compressor Relay Removal

WARNING: This page is about a different car, the 2004 Suzuki Verona. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Pull the relay straight up and out from its location in the engine fuse block at the left front corner.

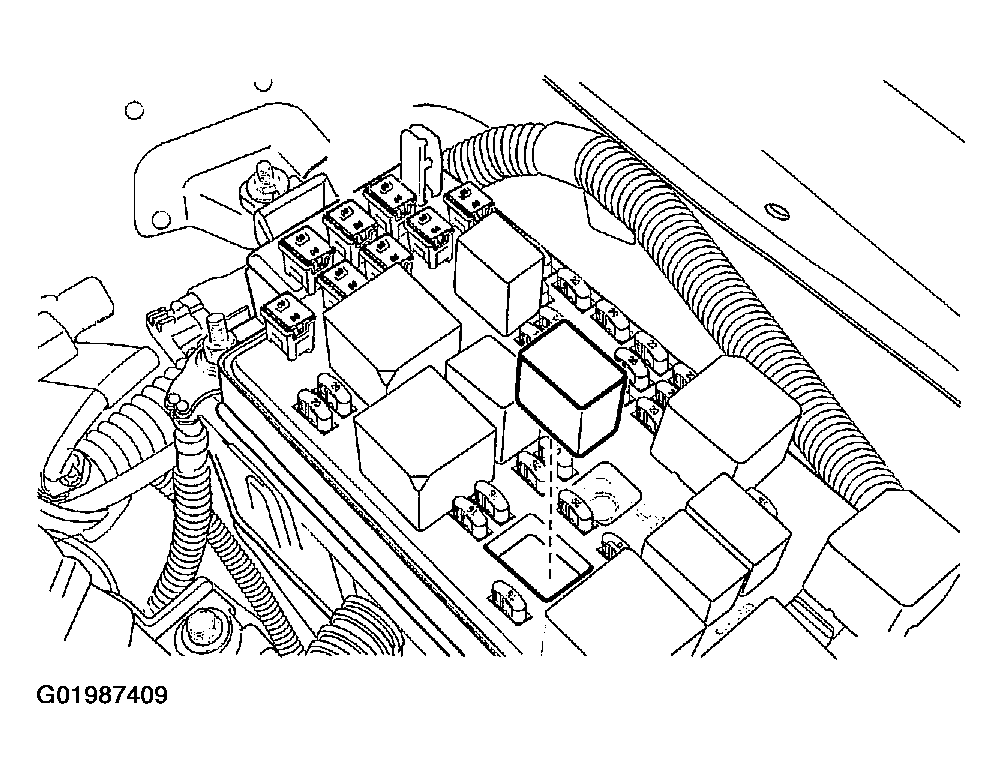

Fig 1: Pulling Relay Straight Up & Out From Its Location
G01987409Courtesy of SUZUKI OF AMERICA CORP.
