Water Pump Removal

WARNING: This page is about a different car, the 2004 Suzuki Verona. However, it is still accessible from the selected car via links, so may be relevant.

Drain the engine cooling system to a level below the thermostat housing. Refer to Draining and Refilling the Cooling System .
Remove the accessory drive belt. Refer to SERPENTINE ACCESSORY DRIVE BELT REMOVAL .

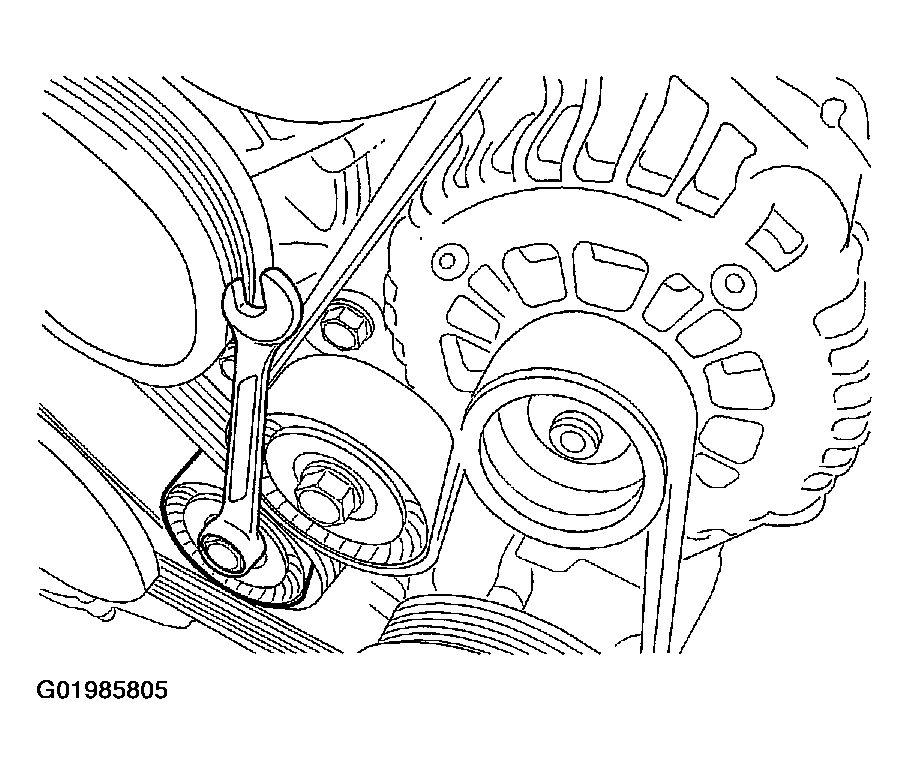

Fig 1: Removing Accessory Drive Belt

Courtesy of SUZUKI OF AMERICA CORP.

Loosen the hose clamp on the coolant hose at the thermostat housing and the coolant pump.
Disconnect the coolant hose from the thermostat housing and the coolant pump.

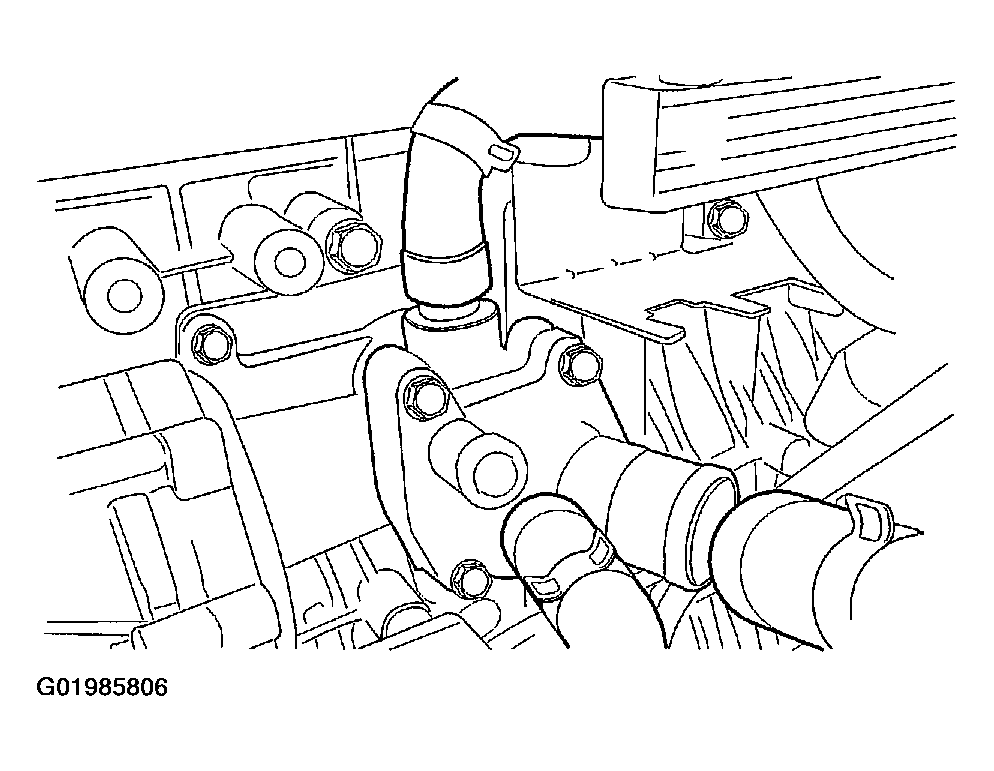

Fig 2: Disconnecting Coolant Hose From Thermostat Housing

Courtesy of SUZUKI OF AMERICA CORP.

Remove the power steering pump mounting bolts.

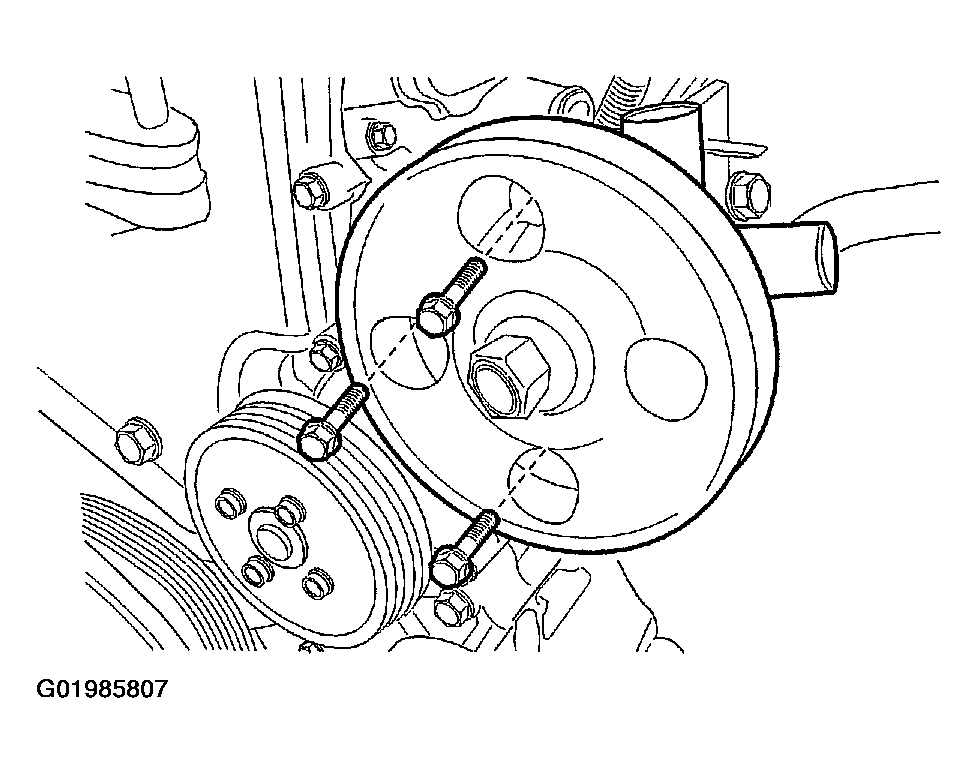

Fig 3: Removing Power Steering Pump Mounting Bolts

Courtesy of SUZUKI OF AMERICA CORP.

Remove the power steering pump upper bracket bolts.

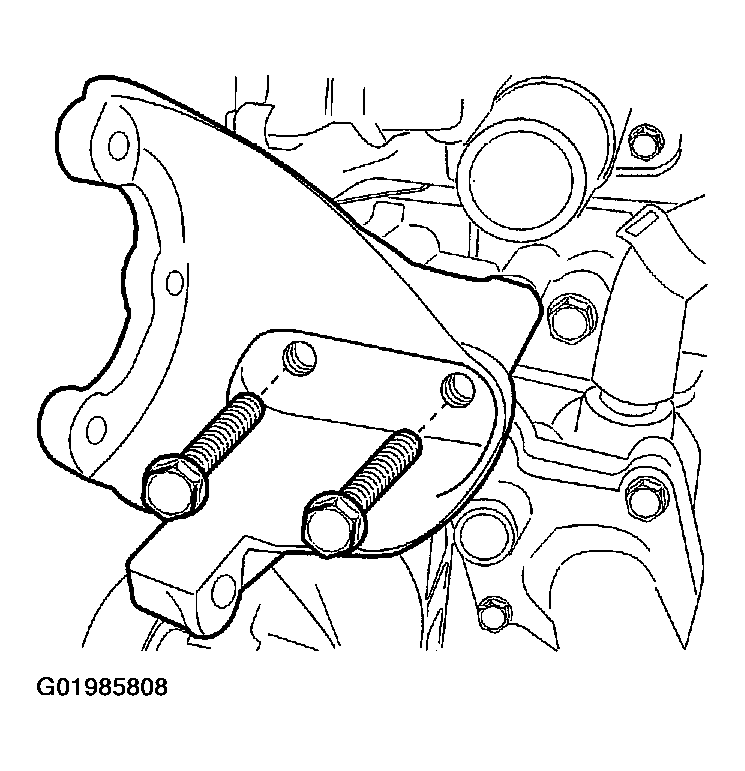

Fig 4: Removing Power Steering Pump Upper Bracket Bolts

Courtesy of SUZUKI OF AMERICA CORP.

Remove the power steering pump lower bracket bolt.
Remove the auto tensioner bolt.
Remove the auto tensioner.

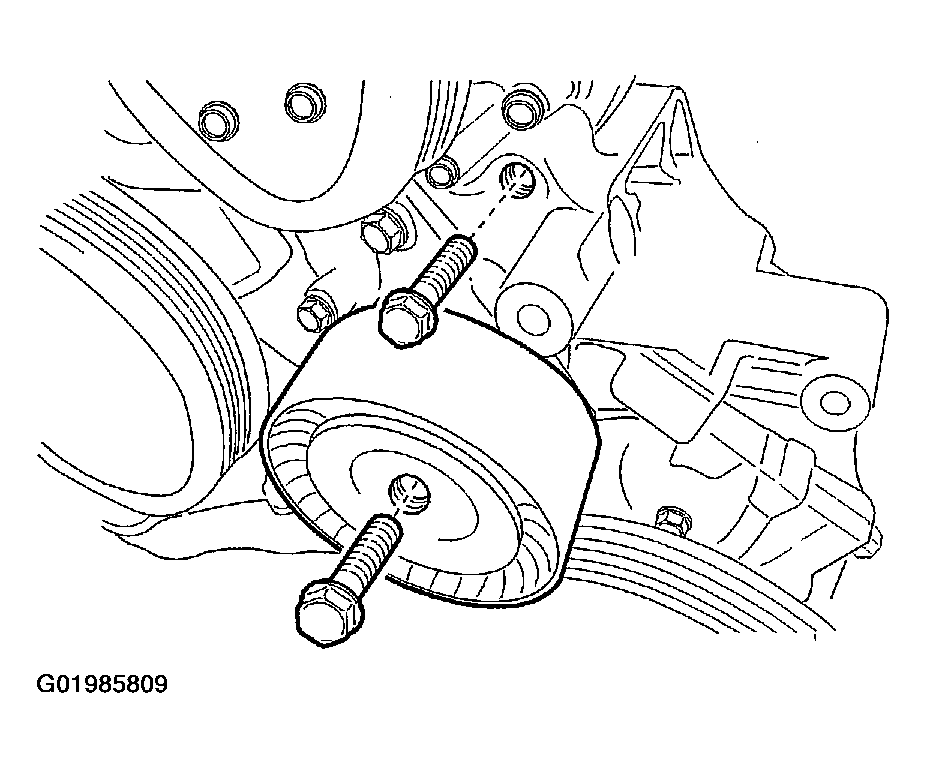

Fig 5: Removing Auto Tensioner

Courtesy of SUZUKI OF AMERICA CORP.

Remove the coolant pump mounting bolts.
Remove the coolant pump.
Remove the coolant pump gasket.
Inspect the water pump body for cracks and leaks.
Clean the mating surfaces of the water pump and the engine block.

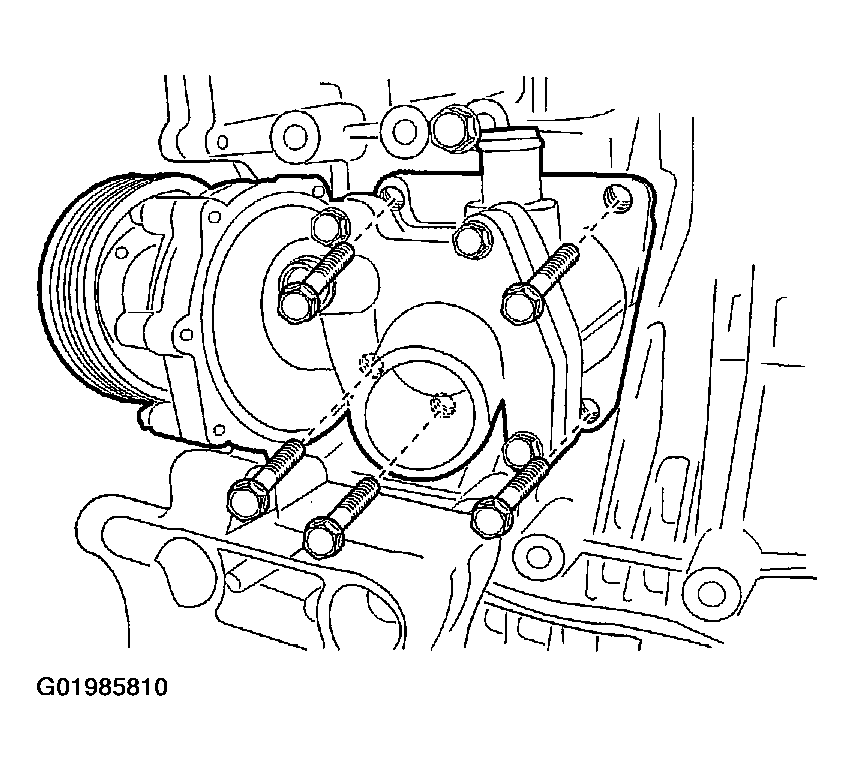

Fig 6: Cleaning Mating Surface Of Water Pump & Engine Block

Courtesy of SUZUKI OF AMERICA CORP.
