Electric Cooling Fan Removal

WARNING: This page is about a different car, the 2004 Suzuki Verona. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Remove the air cleaner inlet hose bolts.
Remove the air cleaner inlet hose.

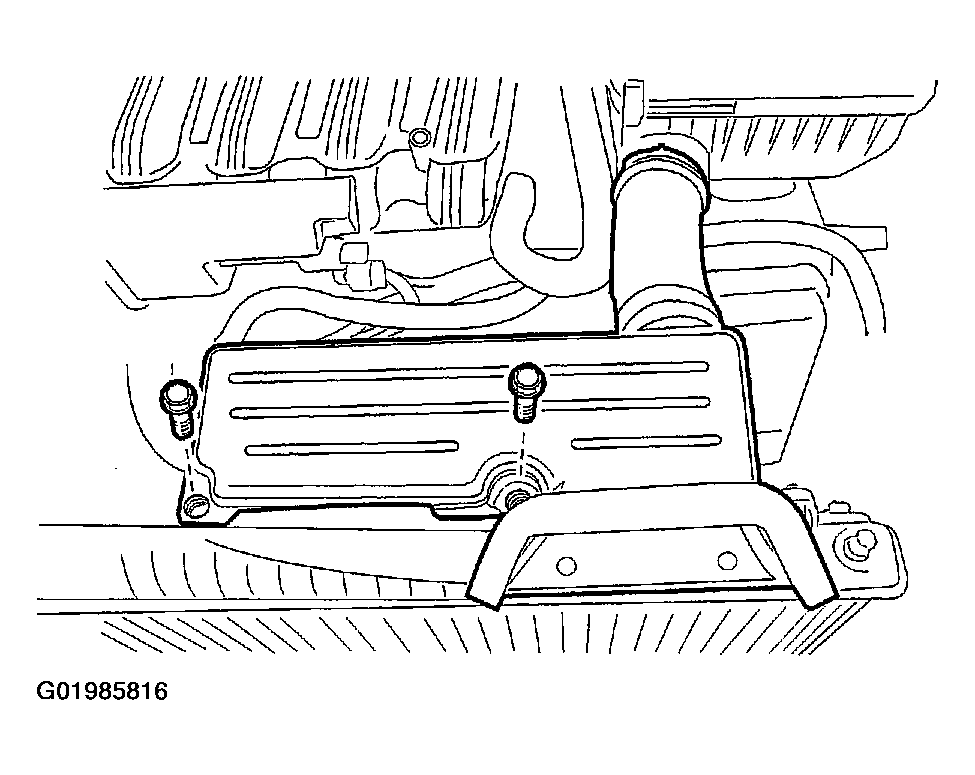

Fig 1: Removing Air Cleaner Inlet Hose

Courtesy of SUZUKI OF AMERICA CORP.

Drain the coolant. Refer to Draining and Refilling the Cooling System .
Disconnect the upper radiator hose.

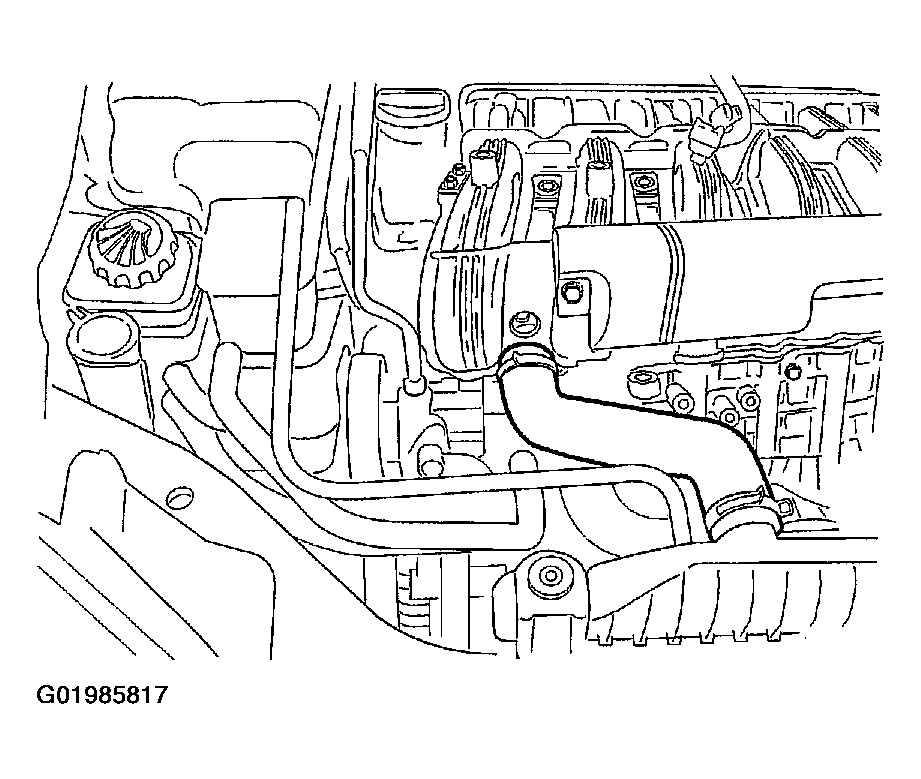

Fig 2: Disconnecting Upper Radiator Hose

Courtesy of SUZUKI OF AMERICA CORP.

Disconnect the cooling fan electrical connector.

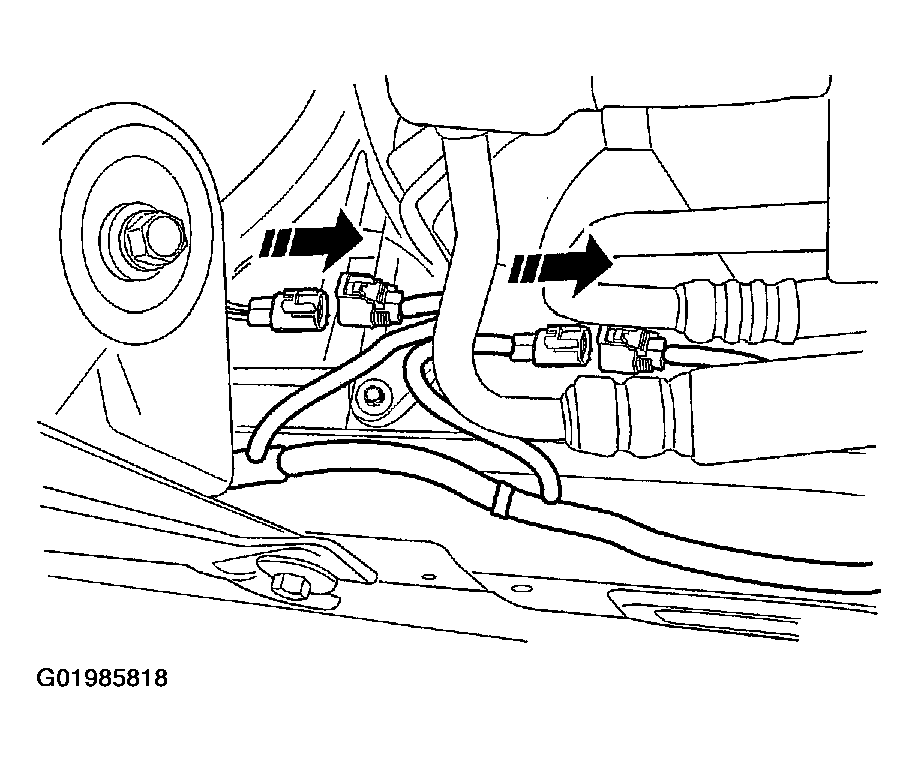

Fig 3: Disconnecting Cooling Fan Electrical Connector

Courtesy of SUZUKI OF AMERICA CORP.

Remove the fan shroud assembly upward and remove the fan shroud assembly from the vehicle.

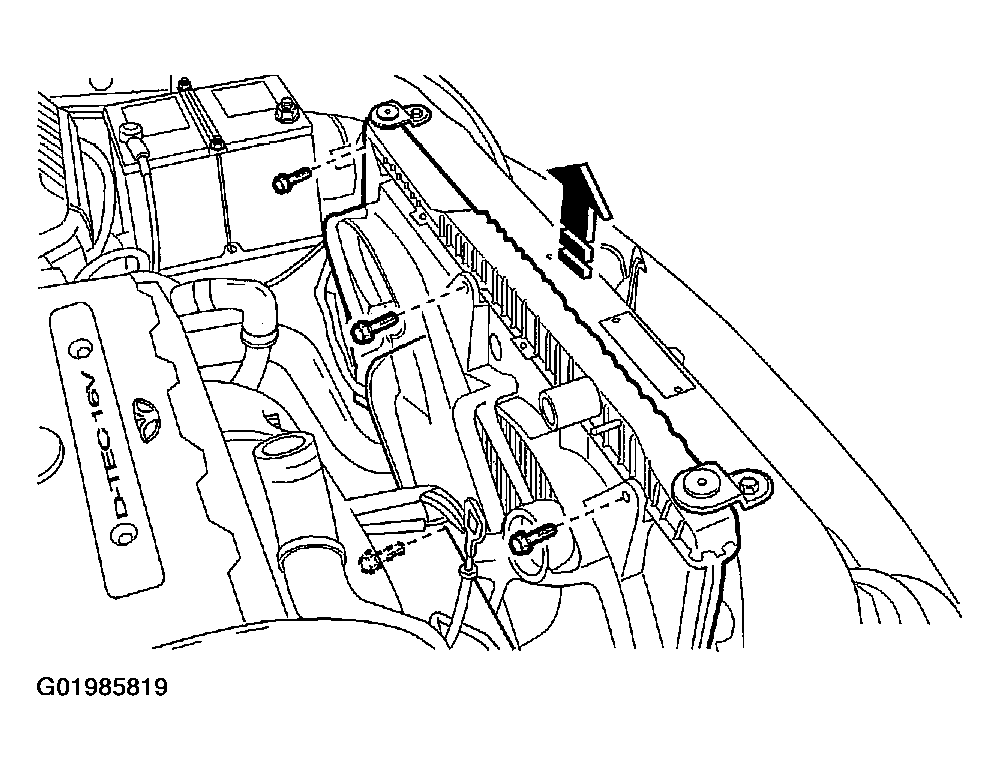

Fig 4: Removing Fan Shroud Assembly

Courtesy of SUZUKI OF AMERICA CORP.
