Combination Meter Circuit Diagram

WARNING: This page is about a different car, the 2004 Suzuki Aerio and 2003 Suzuki Aerio. However, it is still accessible from the selected car via links, so may be relevant.

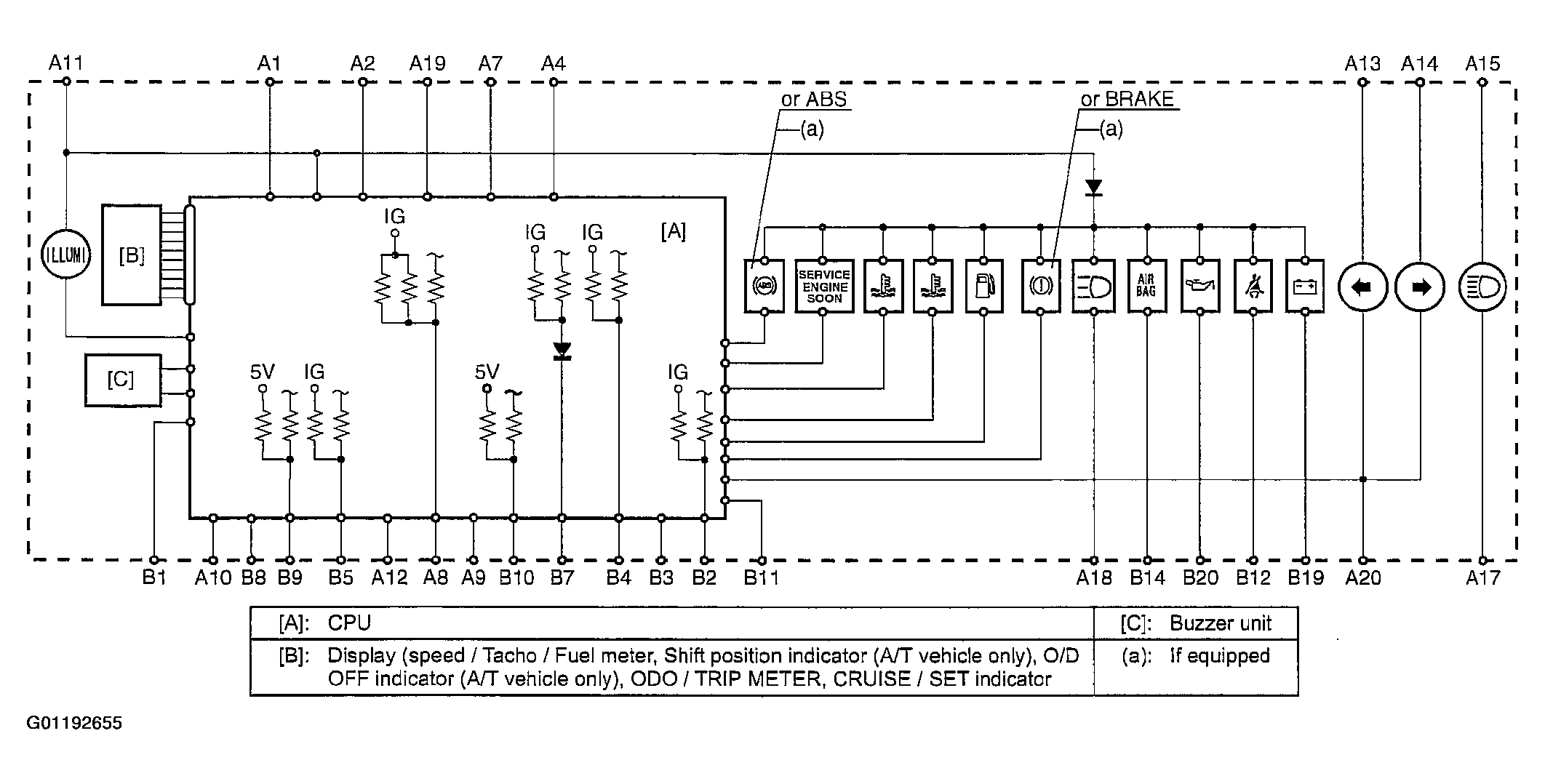

Fig 1: Combination Meter Circuit Diagram
G01192655Courtesy of SUZUKI OF AMERICA CORP.

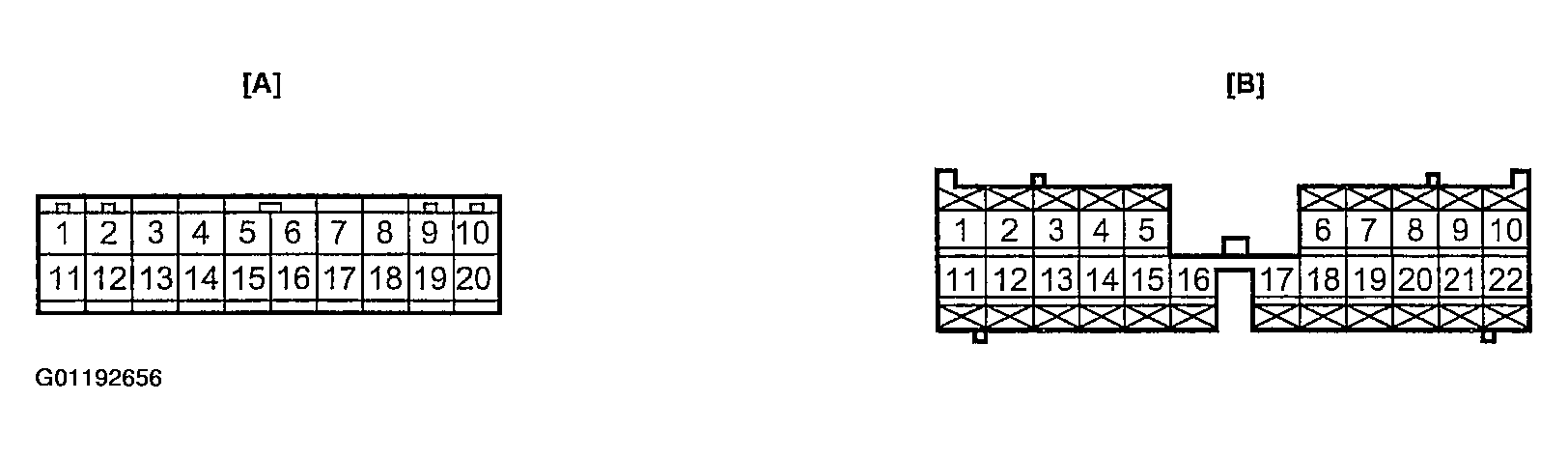

Fig 2: Identifying Combination Meter Terminals
G01192656Courtesy of SUZUKI OF AMERICA CORP.

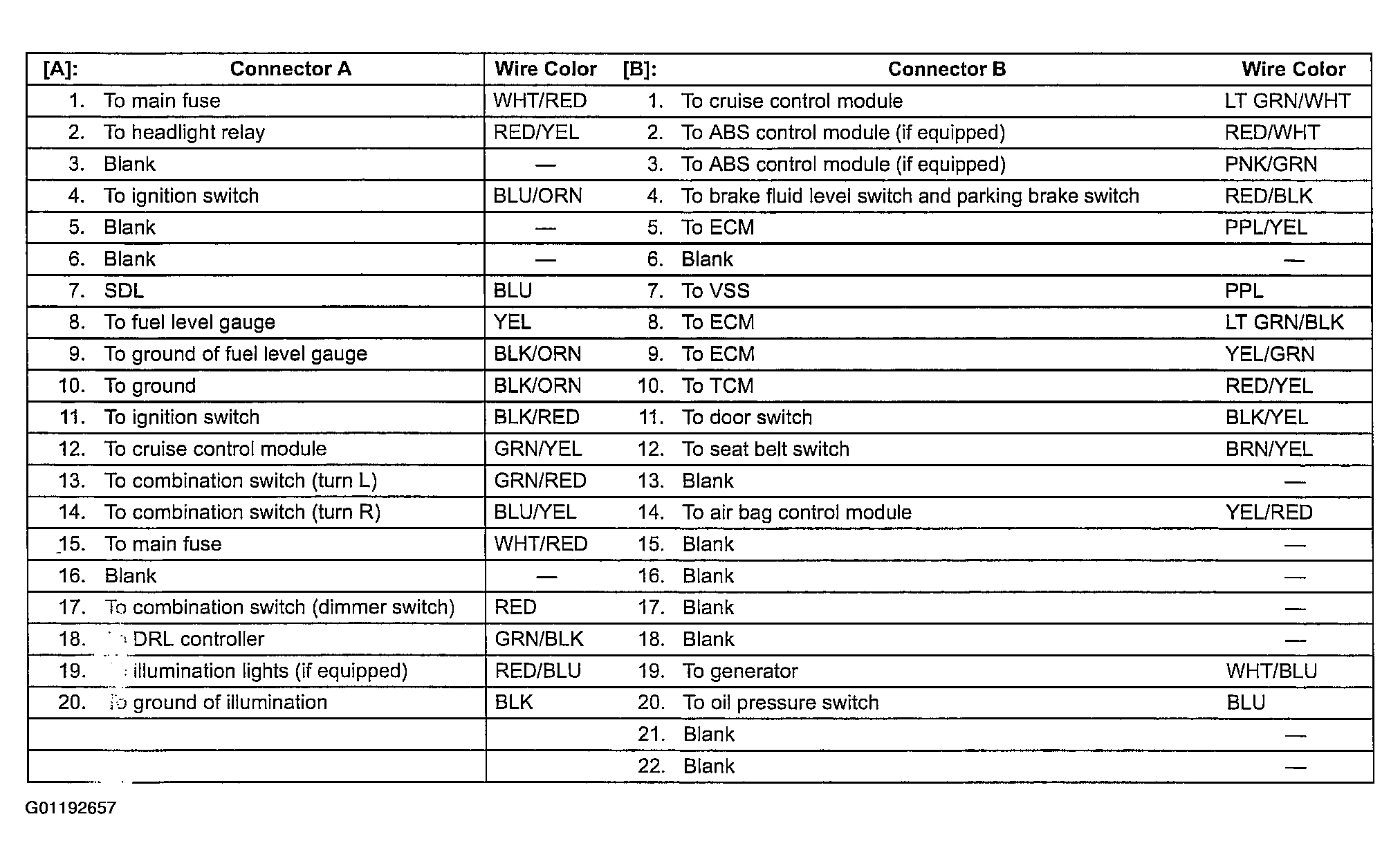

Fig 3: Identifying Combination Meter Terminal Circuits
G01192657Courtesy of SUZUKI OF AMERICA CORP.
