Ignition Switch Removal and Installation: Installation
WARNING: This page is about a different car, the 2004 Suzuki Aerio and 2003 Suzuki Aerio. However, it is still accessible from the selected car via links, so may be relevant.
Reverse removal procedure noting the following.

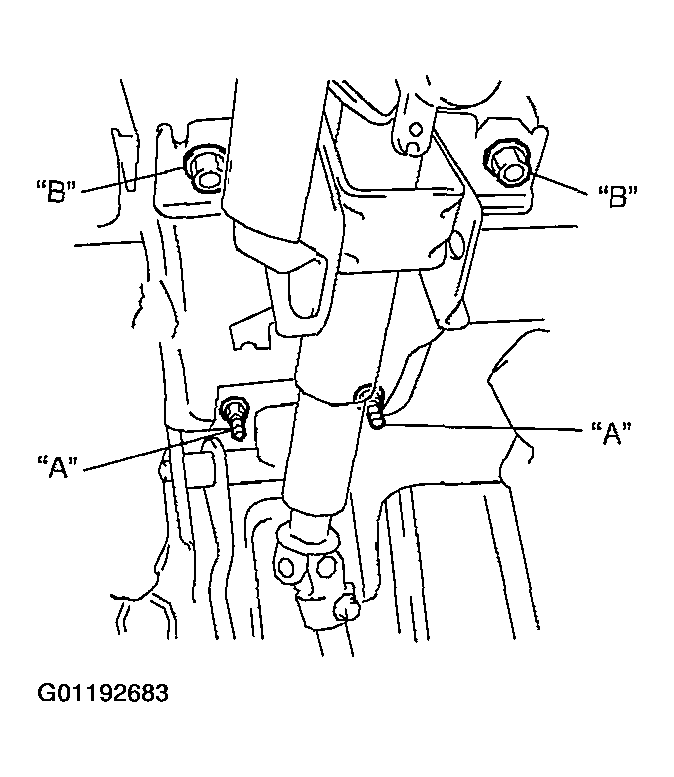

- Tighten mounting nuts to specified torque in the order "A" - "B" indicated in figure.
Tightening torque
Steering column mounting nut: 14 N-m (1.4 kg-m, 10.5 lb-ft)
Courtesy of SUZUKI OF AMERICA CORP.
