Ignition Switch Inspection

WARNING: This page is about a different car, the 2004 Suzuki Aerio and 2003 Suzuki Aerio. However, it is still accessible from the selected car via links, so may be relevant.

Remove steering column referring to STEERING COLUMN ASSEMBLY REMOVAL AND INSTALLATION .
Check for continuity between terminals at each switch position. If check result is not as specified, replace switch.

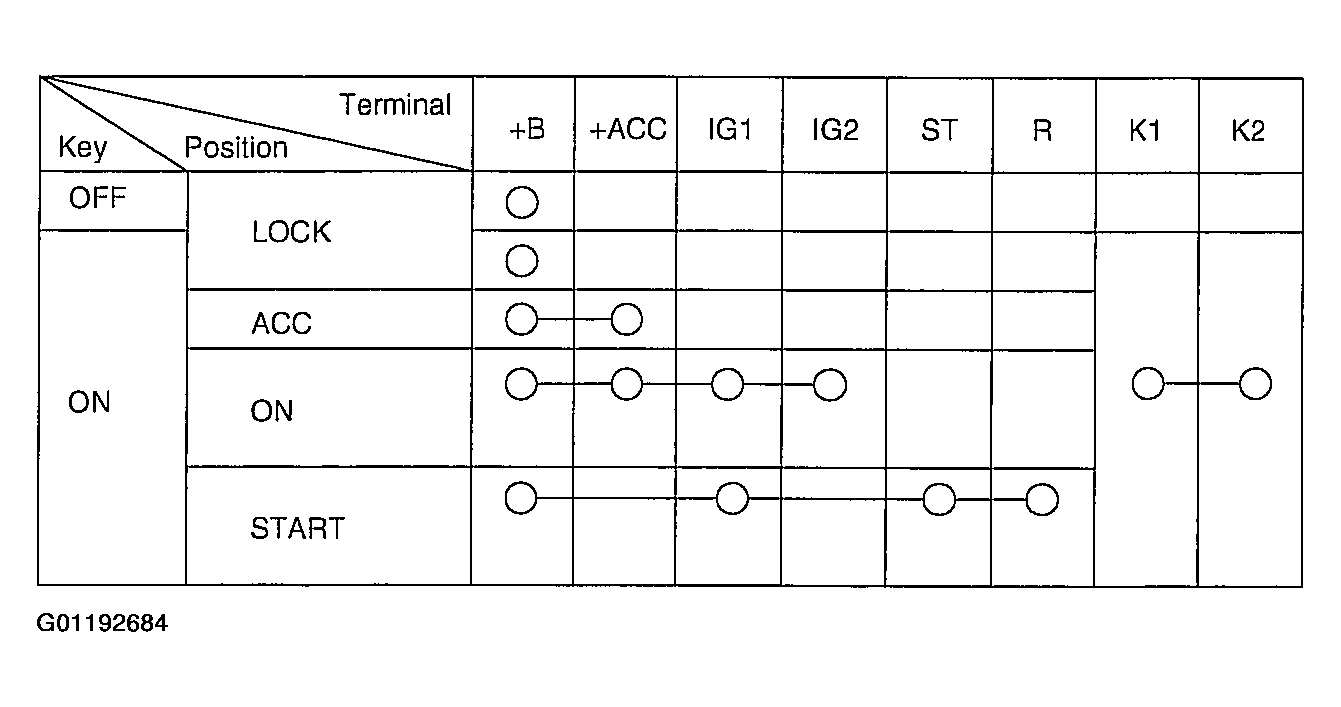

Fig 1: Ignition Switch Continuity Chart
Courtesy of SUZUKI OF AMERICA CORP.

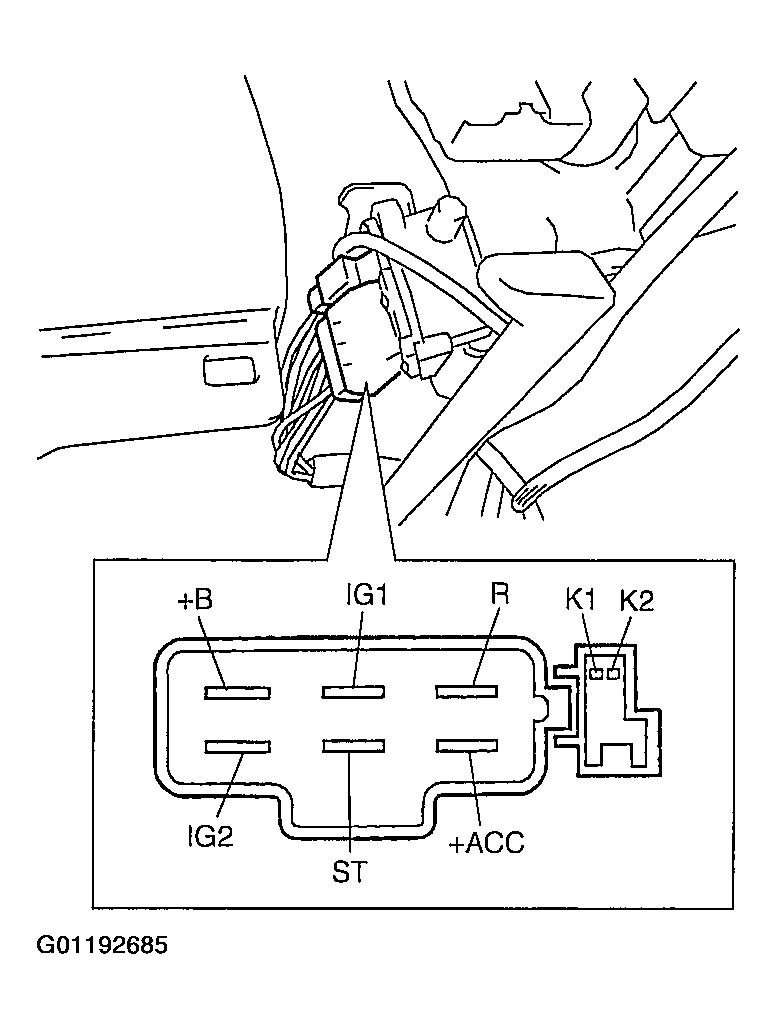

Fig 2: Identifying Ignition Switch Terminals
Courtesy of SUZUKI OF AMERICA CORP.
