Combination Meter Removal and Installation: Removal

WARNING: This page is about a different car, the 2004 Suzuki Aerio and 2003 Suzuki Aerio. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect negative (-) cable at battery.
  2. Remove instrument cluster panel (1) and combination meter hole cover (2).
  3. Remove screws (3) fastening combination meter.
  4. Disconnect combination meter connectors and pull out combination meter (4) through combination meter hole.

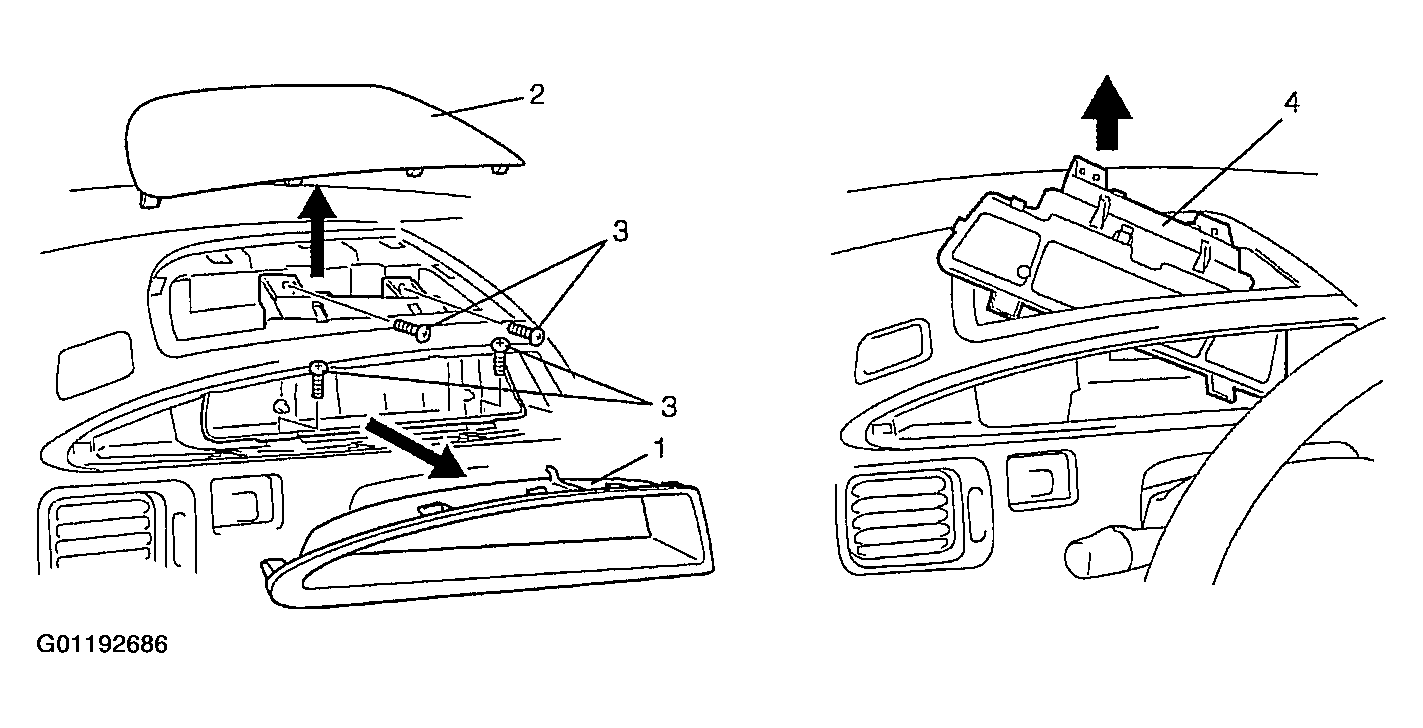

    Fig 1: Locating Components
    G01192686Courtesy of SUZUKI OF AMERICA CORP.
