Engine Construction Description
WARNING: This page is about a different car, the 2004 Suzuki Aerio, 2003 Suzuki Aerio, and 2002 Suzuki Aerio. However, it is still accessible from the selected car via links, so may be relevant.

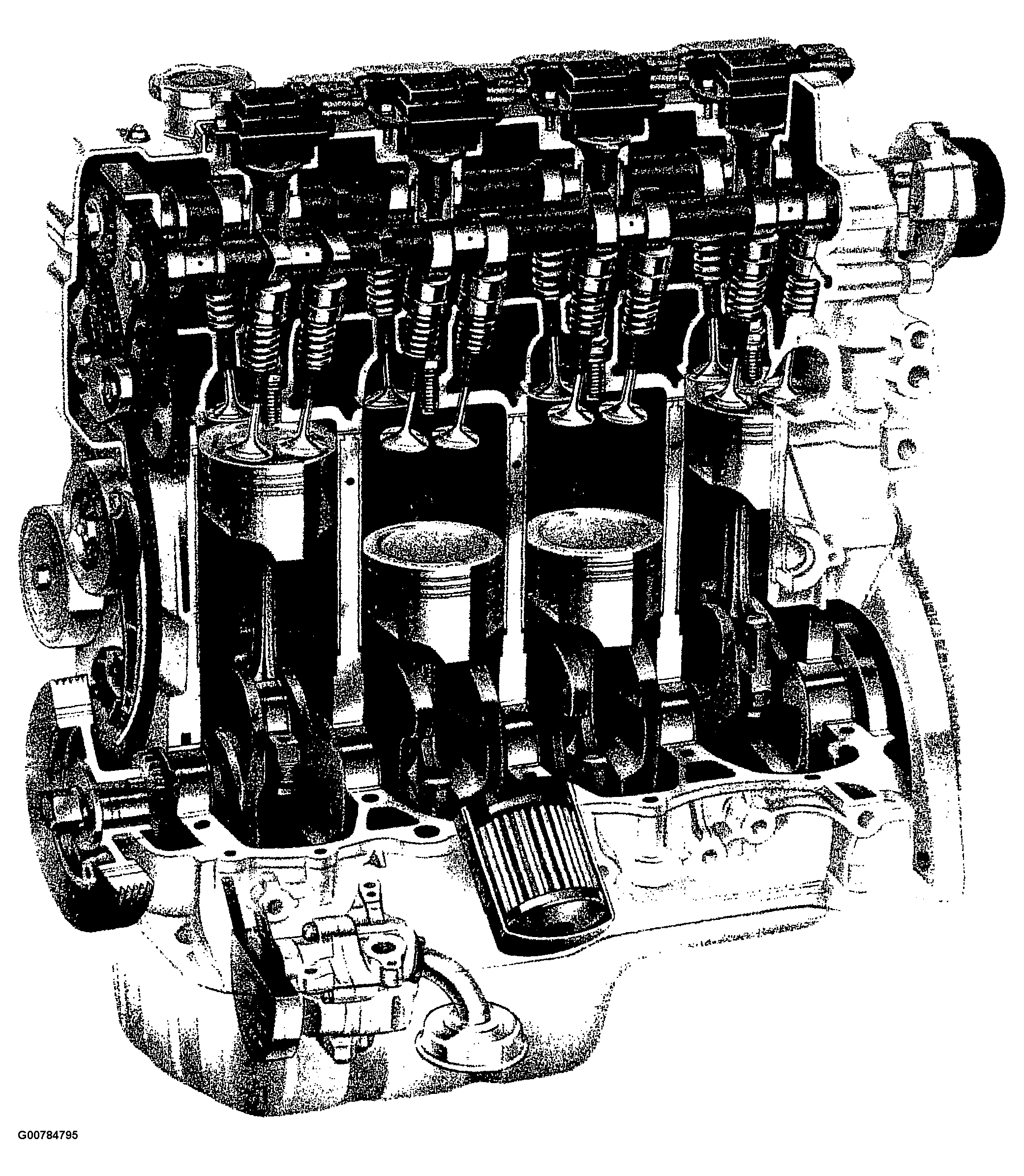

The engine is water-cooled, in line 4 cylinders, 4 stroke cycle gasoline unit with its DOHC (Double overhead camshaft) valve mechanism arranged for "V" type valve configuration consisting of 16 valves (4 valves/one cylinder). The double overhead camshaft is mounted over the cylinder head; it is driven from crankshaft through timing chains, and no push rods are provided in the valve train system.
