Blower Motor Controller Removal and Installation: Removal

WARNING: This page is about a different car, the 2004 Suzuki Aerio. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect negative (-) cable at battery.
  2. Disconnect blower motor controller connector.
  3. Remove blower motor controller (1).

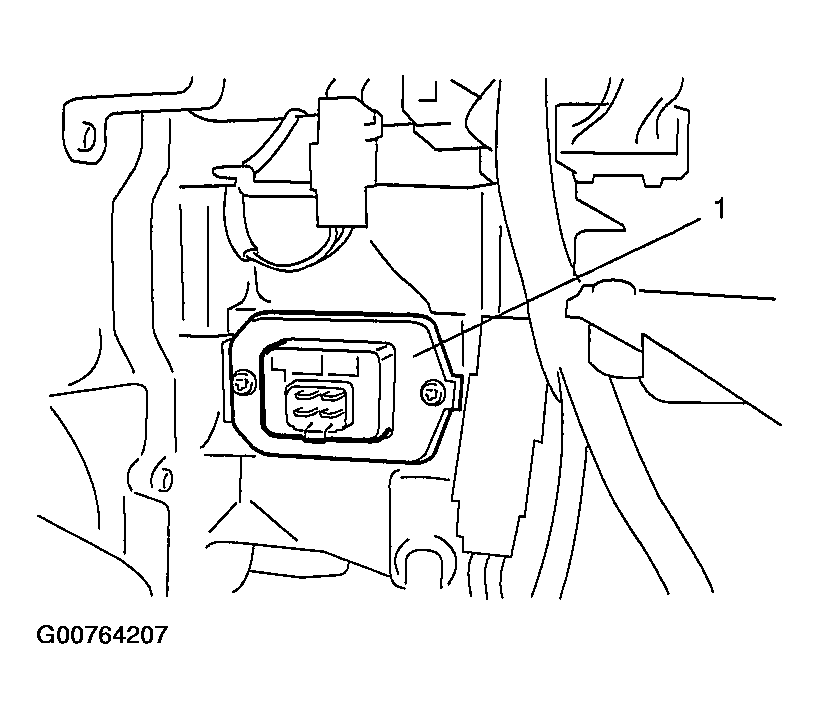

Fig 1: Removing Blower Motor Controller
G00764207Courtesy of SUZUKI OF AMERICA CORP.
