Air Flow Control Actuator Removal and Installation: Installation

WARNING: This page is about a different car, the 2004 Suzuki Aerio. However, it is still accessible from the selected car via links, so may be relevant.

Set position of air flow control actuator lever to DEF position referring to Air Flow Control Actuator Inspection .

Fig 1: Setting Position Of Air Flow Control Actuator Lever To DEF Position
Courtesy of SUZUKI OF AMERICA CORP.
Install air flow control actuator on the heater and cooling unit.
Set position of linkage to DEF position by moving a protrusion (1) to the arrow direction till the end.
Put air flow control actuator rod (2) on the clip (3).

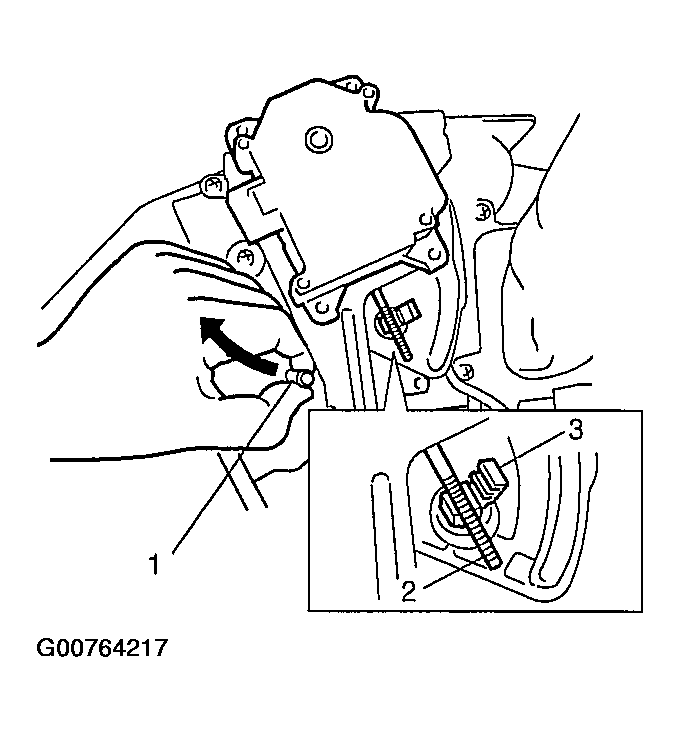

Fig 2: Putting Air Flow Control Actuator Rod On The Clip

Courtesy of SUZUKI OF AMERICA CORP.
