A/C Evaporator Outlet Air Temperature Sensor Inspection
WARNING: This page is about a different car, the 2004 Suzuki Aerio. However, it is still accessible from the selected car via links, so may be relevant.

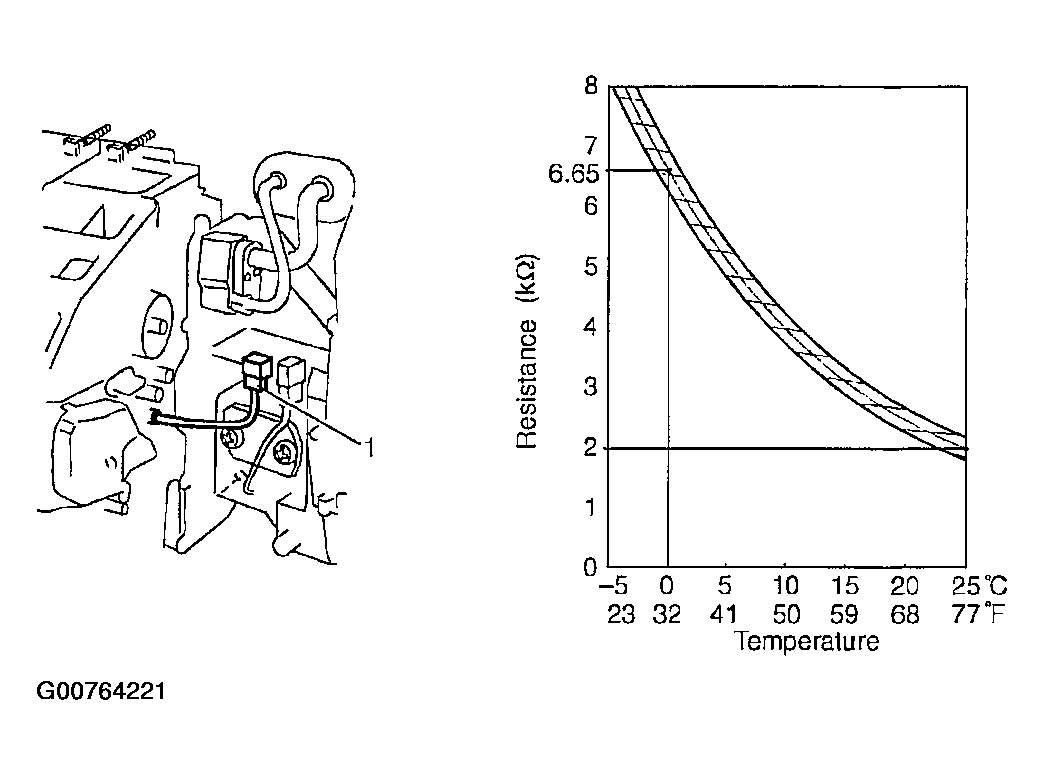

Check resistance between terminals for A/C evaporator outlet air temperature sensor (1).
If measured resistance is out of specification, replace A/C evaporator outlet air temperature sensor with new one.
A/C evaporator outlet air temperature sensor resistance
0 °C (32 °F): 6.4 - 6.9 k/ohms
25 °C (77 °F): 1.8 - 2.2 k/ohms
