Visual Inspection

WARNING: This page is about a different car, the 2004 Suzuki Aerio. However, it is still accessible from the selected car via links, so may be relevant.

Check visually the following parts and systems.

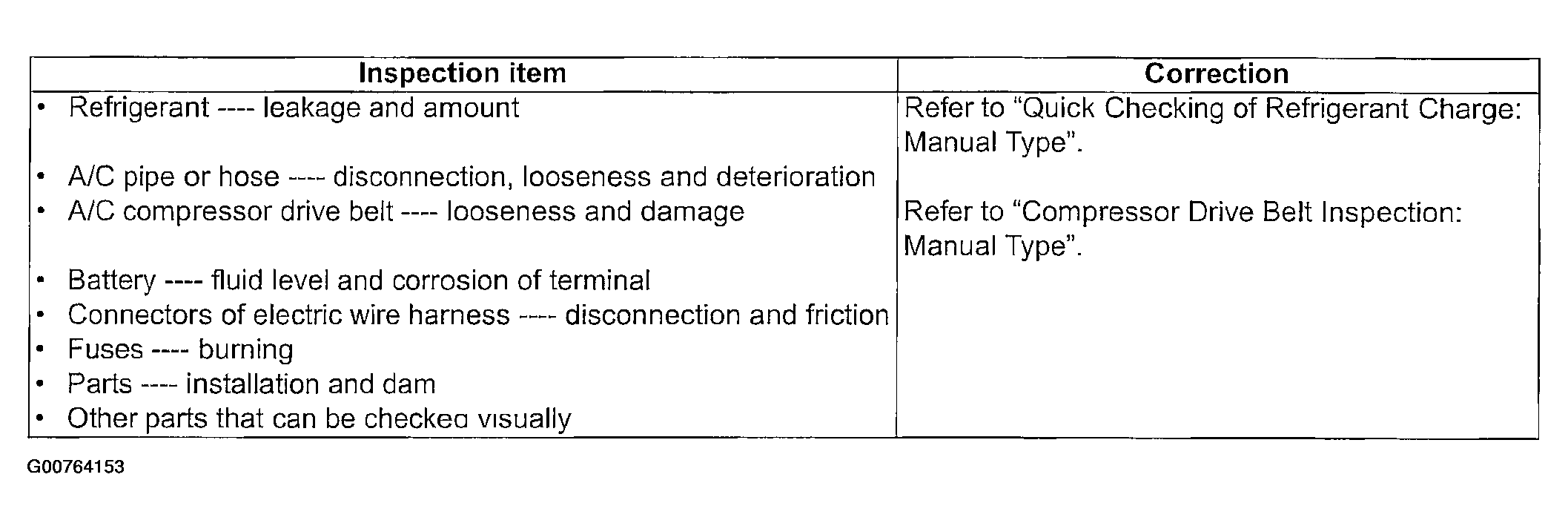

Fig 1: Visual Inspection
G00764153Courtesy of SUZUKI OF AMERICA CORP.
