Major Components of A/C System

WARNING: This page is about a different car, the 2004 Suzuki Aerio. However, it is still accessible from the selected car via links, so may be relevant.

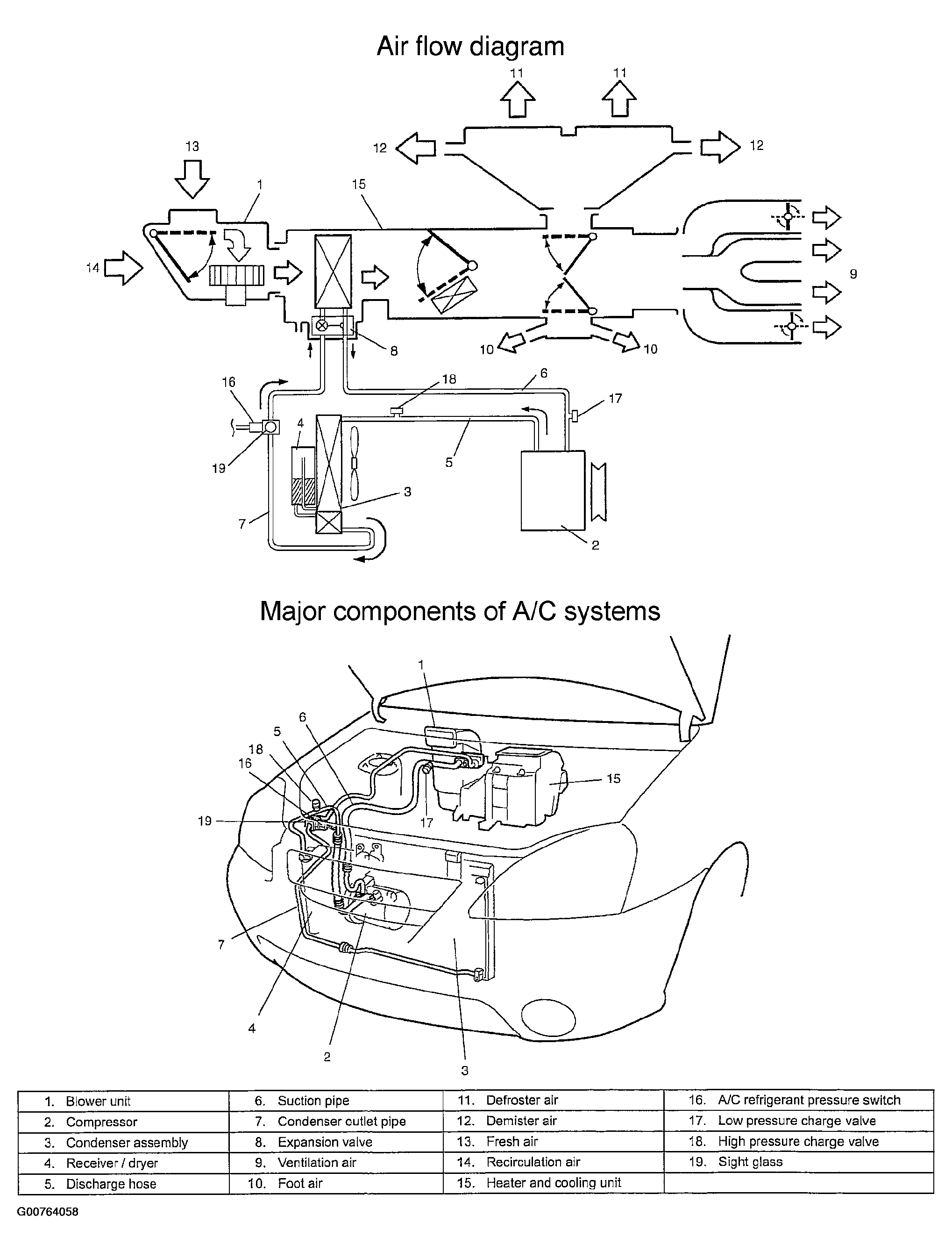

Fig 1: Identifying A/C System Components
G00764058Courtesy of SUZUKI OF AMERICA CORP.
