Condenser Cooling Fan Inspection: Notes
WARNING: This page is about a different car, the 2004 Suzuki Aerio. However, it is still accessible from the selected car via links, so may be relevant.

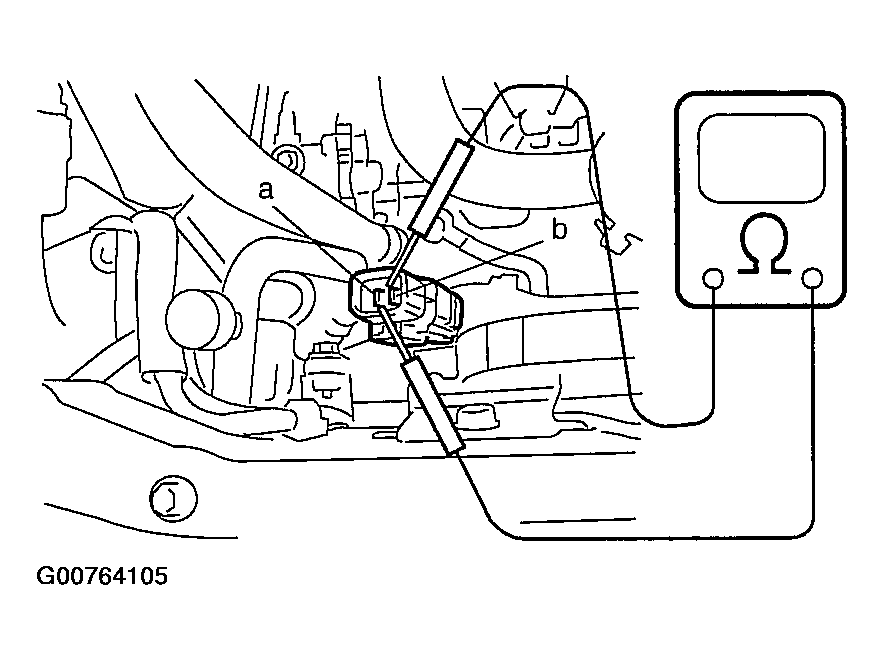

- Check condenser cooling fan motor for continuity between terminal "a" and "b" as shown.
If there is no continuity, replace condenser cooling fan motor.

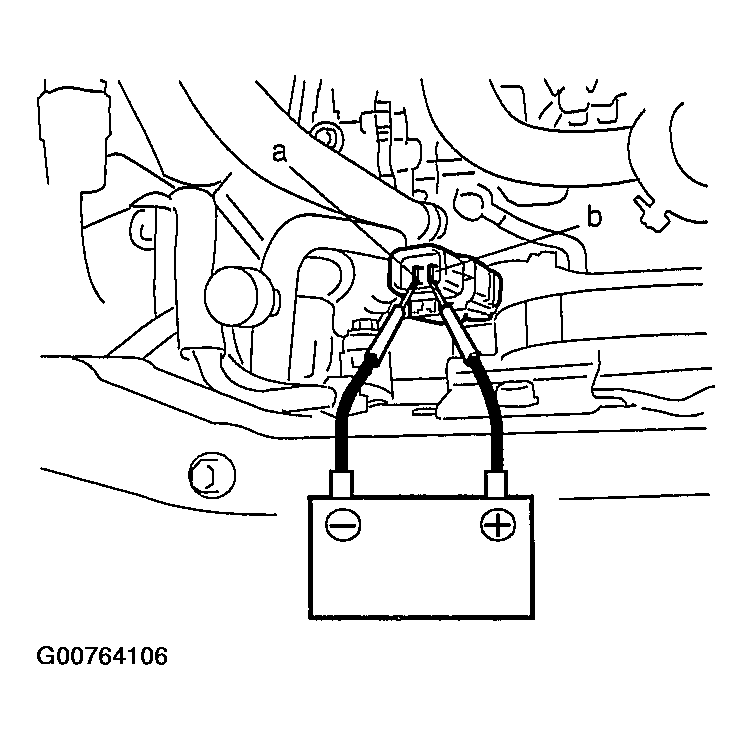

- Connect battery to condenser cooling fan motor terminal "a" and "b" as shown in figure, then check that the condenser cooling fan motor operates smoothly.
