Compressor Relay and Condenser Cooling Fan Relay Inspection
WARNING: This page is about a different car, the 2004 Suzuki Aerio. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect negative (-) cable at battery.

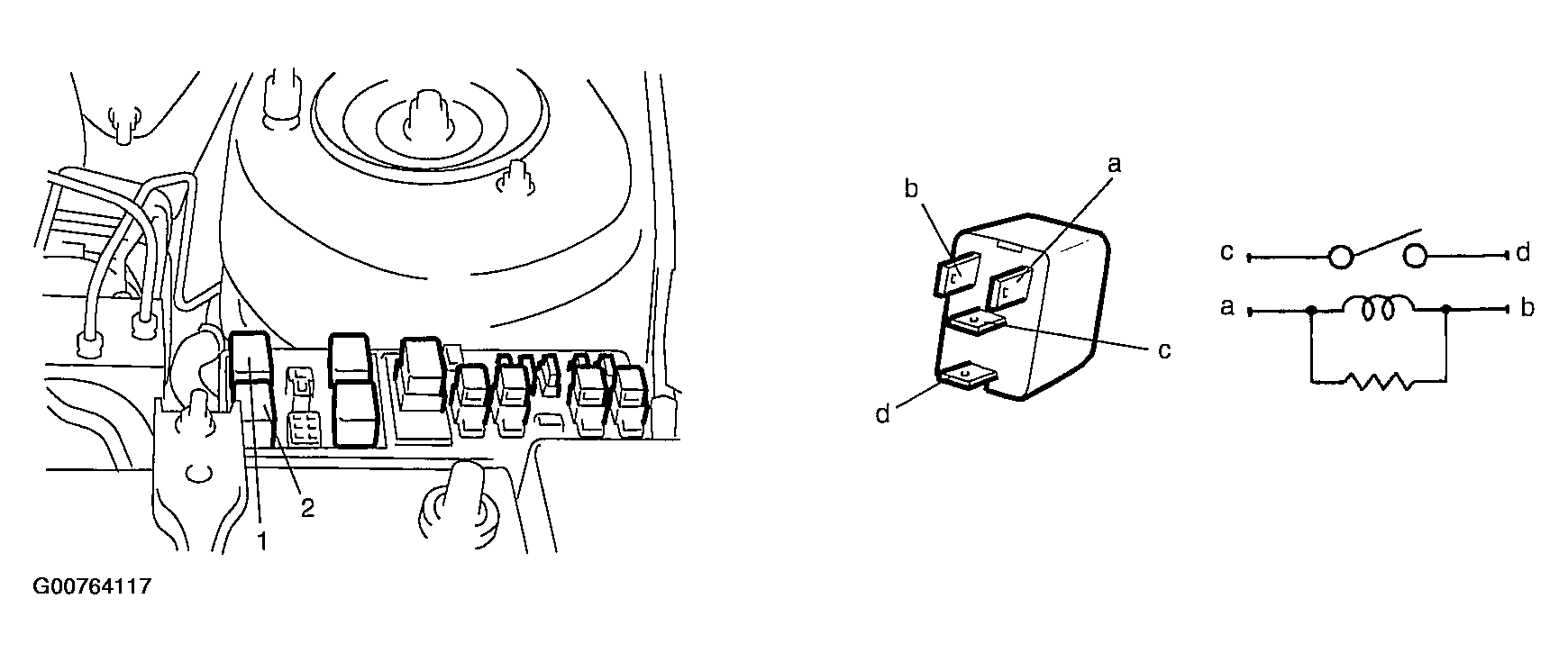

- Remove condenser cooling fan relay (1) and compressor relay (2) from main fuse box.
- Check that there is no continuity between terminal "c" and "d". If there is continuity, replace relay.
- Connect that there is continuity between terminals "c" and "d" when a 12 V battery is connected to terminals "a" and "b". If malfunction is found, replace it with a new one.
