Checking Refrigerant Charge

WARNING: This page is about a different car, the 2004 Suzuki Aerio. However, it is still accessible from the selected car via links, so may be relevant.

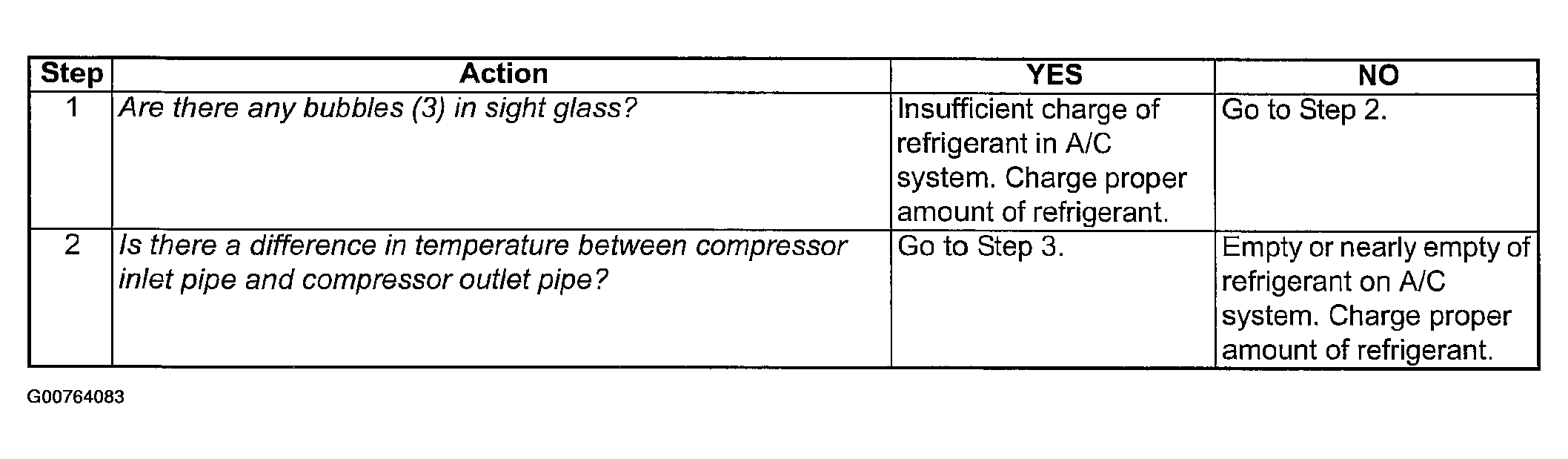

Fig 1: Checking Refrigerant Charge Chart (1 Of 2)

Courtesy of SUZUKI OF AMERICA CORP.

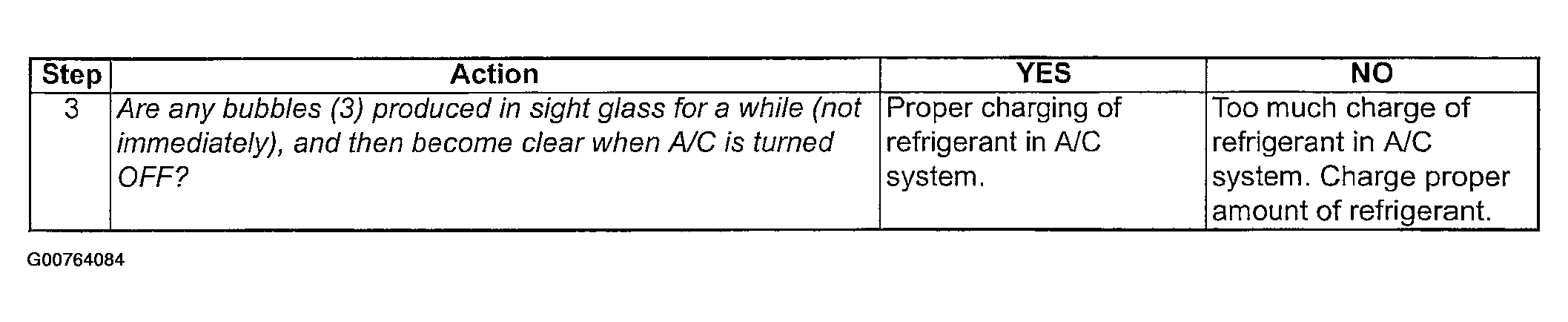

Fig 2: Checking Refrigerant Charge Chart (2 Of 2)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 3: Checking Refrigerant Sight Glass

Courtesy of SUZUKI OF AMERICA CORP.

NOTE: Charge proper amount of refrigerant referring to Operation Procedure for Refrigerant Charging , if necessary.
