A/C Refrigerant Pressure Switch Removal and Installation: Installation
WARNING: This page is about a different car, the 2004 Suzuki Aerio. However, it is still accessible from the selected car via links, so may be relevant.
Reverse removal procedure to install A/C refrigerant pressure switch noting the following instruction.
- Tighten A/C refrigerant pressure switch as specified torque.
Tightening torque

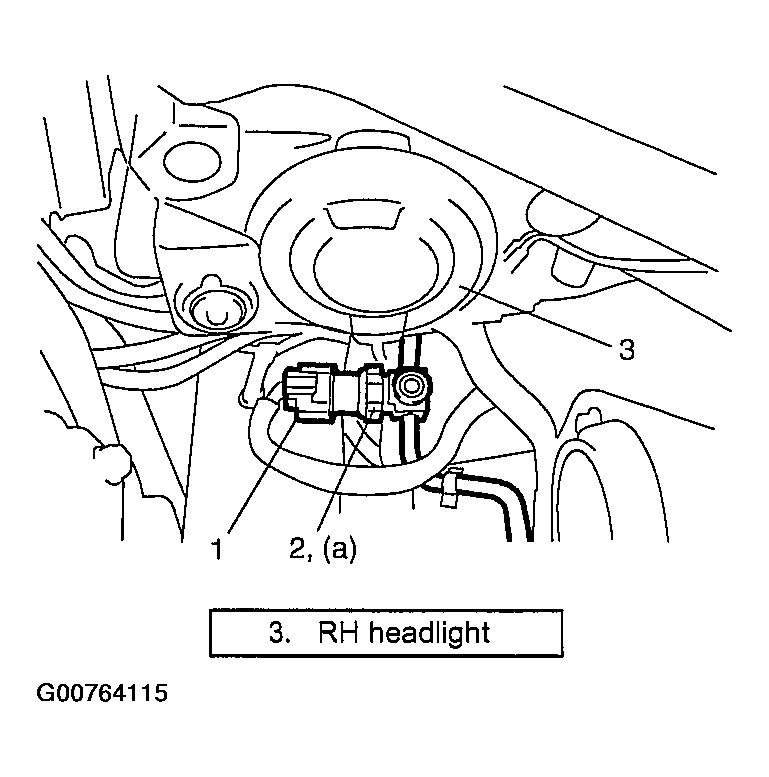

A/C refrigerant pressure switch (a): 11 N.m (1.1 kg-m, 8.0 lb-ft)
