Radiator Cooling Fan and A/C Condenser Cooling Fan Control Pressure Switch

WARNING: This page is about a different car, the 2004 Suzuki Aerio. However, it is still accessible from the selected car via links, so may be relevant.

Connect manifold gauge set to charging valves.
Run engine and A/C switch ON.
Check continuity between "c" and "d" terminals of A/C refrigerant pressure switch (1) when A/C refrigerant pressure is changed, as shown in figure.
If operation is not as specified, replace A/C refrigerant pressure switch.

A/C refrigerant pressure switch specifications

"A": Approx. 200 kPa (2.0 kg/cm² , 28.5 psi)

"B": Approx. 230 kPa (2.3 kg/cm² , 32.5 psi)

"C": Approx. 2600 kPa (26 kg/cm² , 370 psi)

"D": Approx. 3200 kPa (32 kg/cm² , 455 psi)

"E": Approx. 1100 kPa (11 kg/cm² , 156 psi)

"F": Approx. 1500 kPa (15 kg/cm² , 213 psi)

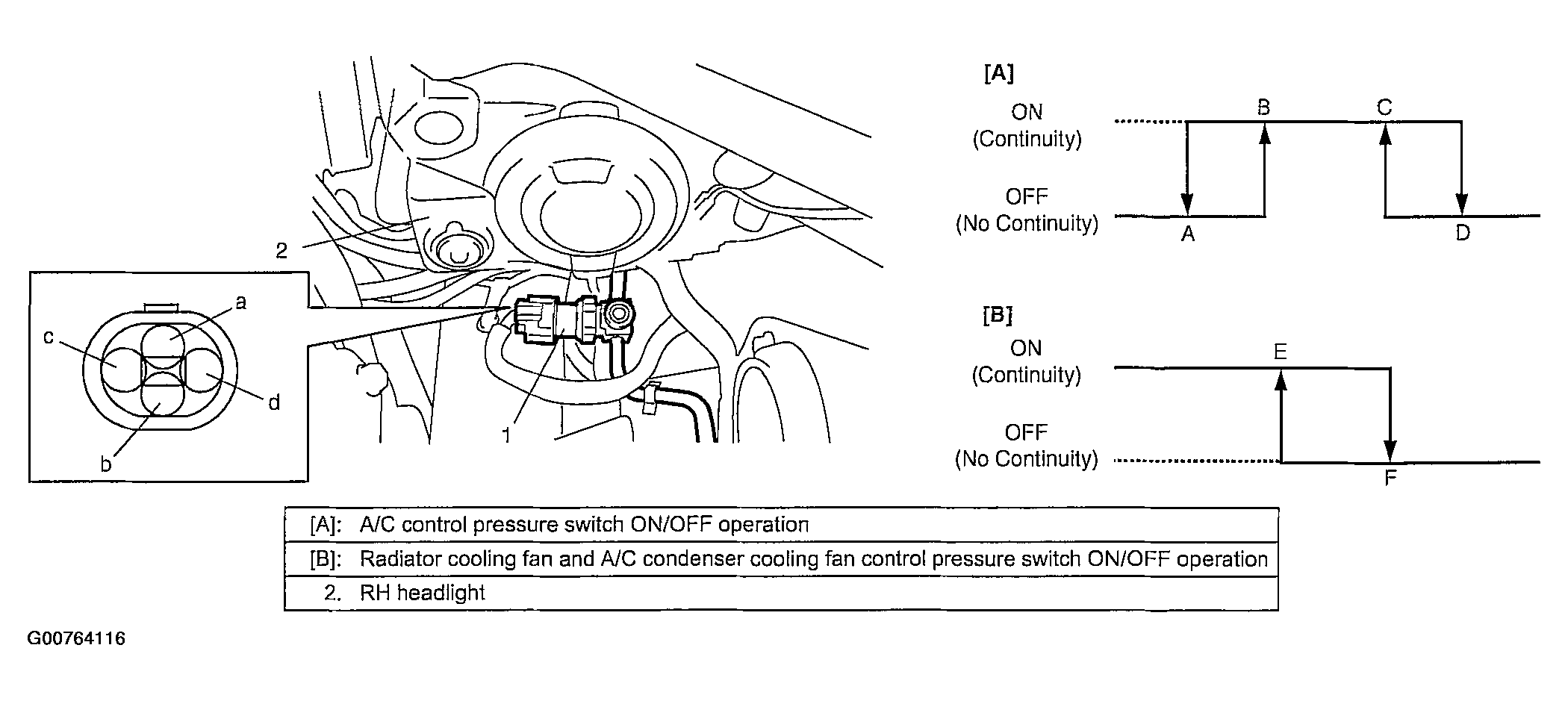

Fig 1: Checking A/C Refrigerant Pressure Switch

Courtesy of SUZUKI OF AMERICA CORP.
