Heater Unit Components

WARNING: This page is about a different car, the 2004 Suzuki Aerio. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: If vehicle is equipped with A/C system, refer to HEATER AND COOLING UNIT COMPONENTS .

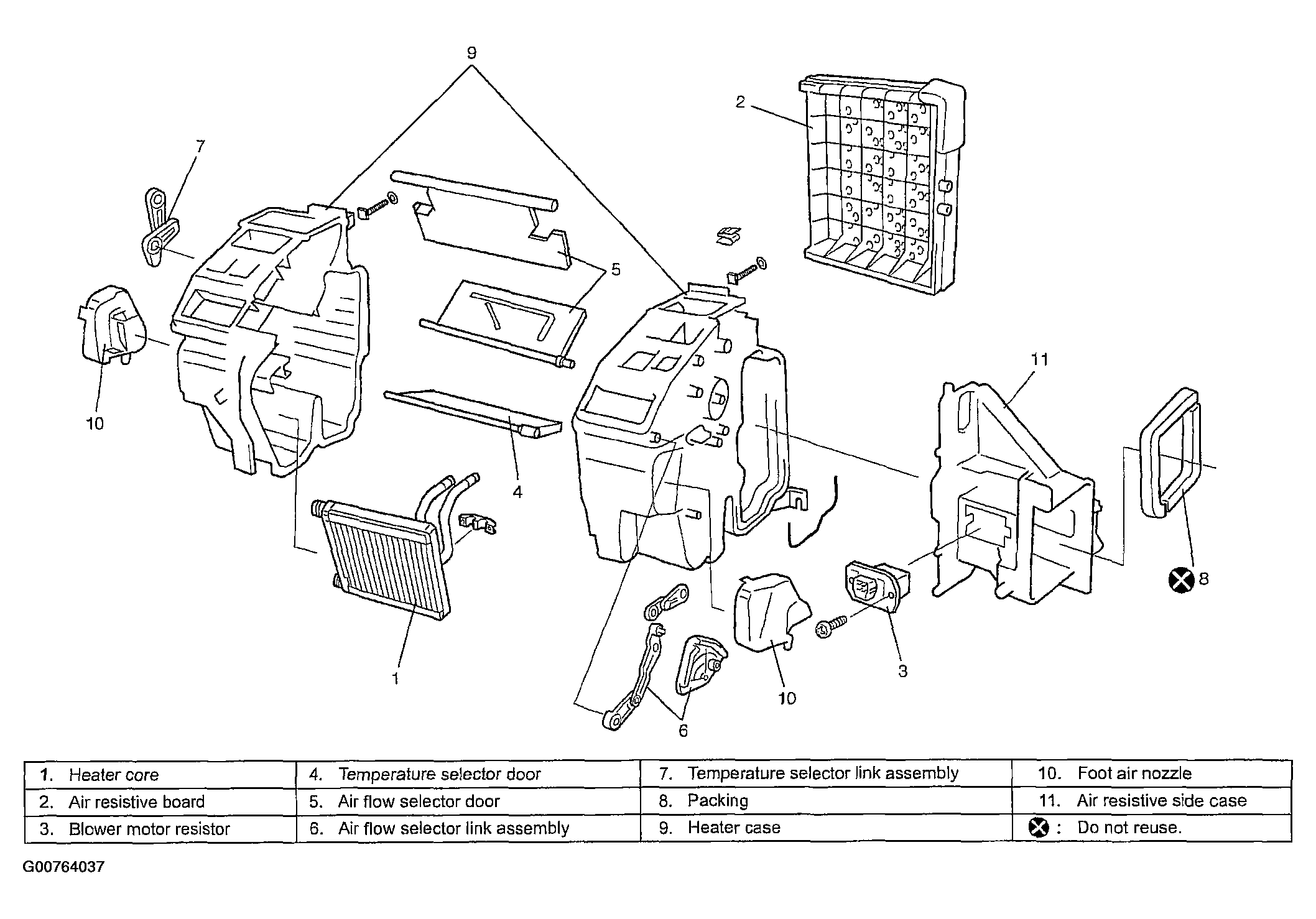

Fig 1: Exploded View Of Heater Unit Components

Courtesy of SUZUKI OF AMERICA CORP.
