Heater Controller Removal and Installation: Installation

WARNING: This page is about a different car, the 2004 Suzuki Aerio. However, it is still accessible from the selected car via links, so may be relevant.

Reverse removal procedure to install heater controller noting the following instructions.

Adjust the following items.

Set air flow selector (1) and temperature selector (2) as shown in figure.

Fig 1: Setting Selectors
Courtesy of SUZUKI OF AMERICA CORP.

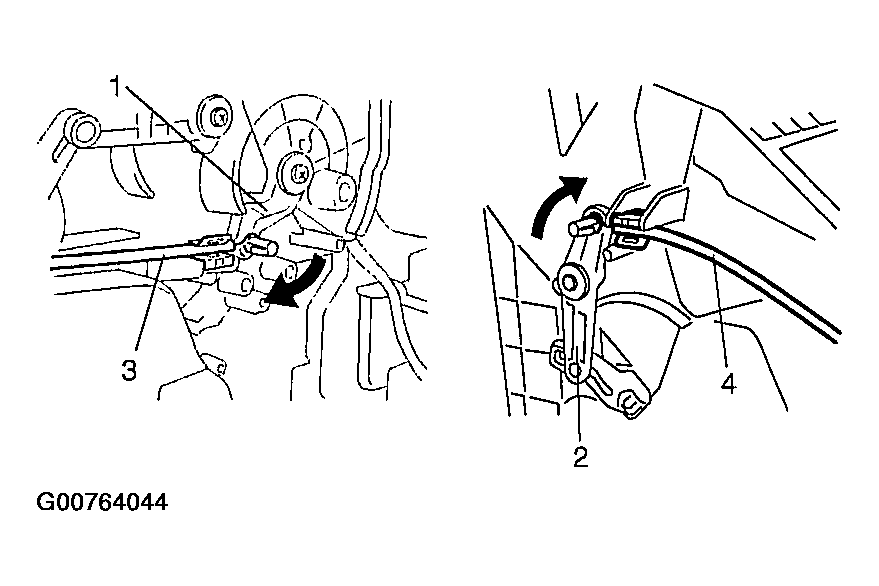

Push air flow selector link (1) and temperature selector link (2) fully in arrow direction.
Fix air flow selector cable (3) and temperature selector cable (4) with clamp in position as shown in figure.

Fig 2: Fixing Selector Cables

Courtesy of SUZUKI OF AMERICA CORP.

NOTE: After installing selector cables, be sure that air flow selector and temperature selector move smoothly and stop at proper position.
