Heater Controller Inspection

WARNING: This page is about a different car, the 2004 Suzuki Aerio. However, it is still accessible from the selected car via links, so may be relevant.

Check blower speed selector for each terminal to terminal continuity. If check result is not as specified, replace.

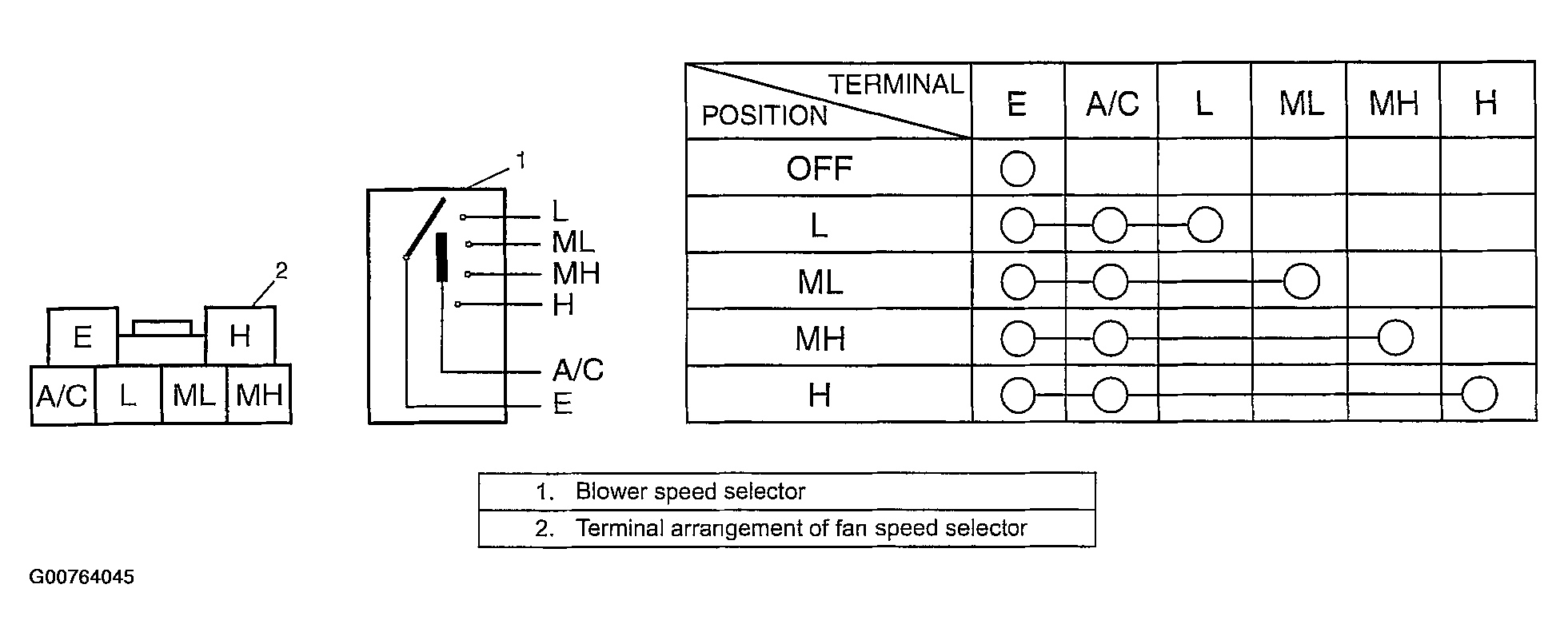

Fig 1: Checking Blower Speed Selector Continuity
Courtesy of SUZUKI OF AMERICA CORP.
Check air inlet selector for each terminal to terminal continuity. If check result is not as specified, replace.

Fig 2: Checking Air Inlet Selector For Continuity

Courtesy of SUZUKI OF AMERICA CORP.
