Blower Motor Inspection: Notes

WARNING: This page is about a different car, the 2004 Suzuki Aerio. However, it is still accessible from the selected car via links, so may be relevant.

Check motor coil for continuity between terminals as shown. If there are no continuity, replace blower motor assembly (1).

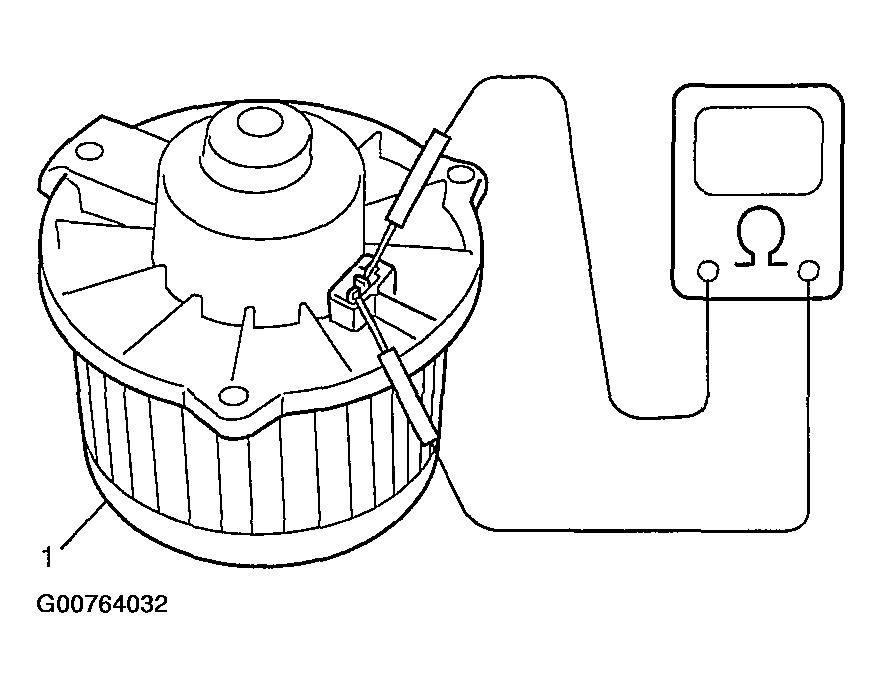

Fig 1: Checking Motor Coil For Continuity
Courtesy of SUZUKI OF AMERICA CORP.
Check motor for operation and current.
1. Fix blower motor assembly (1) using soft-jawed vise.
2. Connect battery to blower motor assembly (1) as shown.

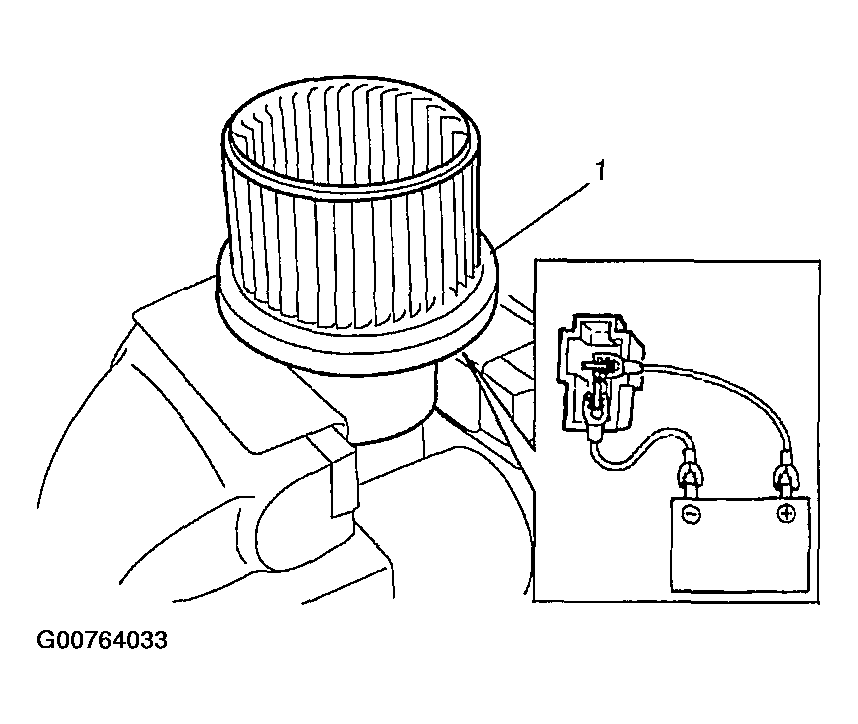

  Fig 2: Connecting Battery To Blower Motor Assembly
  Courtesy of SUZUKI OF AMERICA CORP.
3. Check that blower motor operates smoothly and doesn't make abnormal noise.
4. Check that ammeter indicates specified current.

If current is out of specification, replace blower motor.
