Throttle Body Assembly Removal

WARNING: This page is about a different car, the 2004 Suzuki Verona. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Remove the air filter outlet hose.

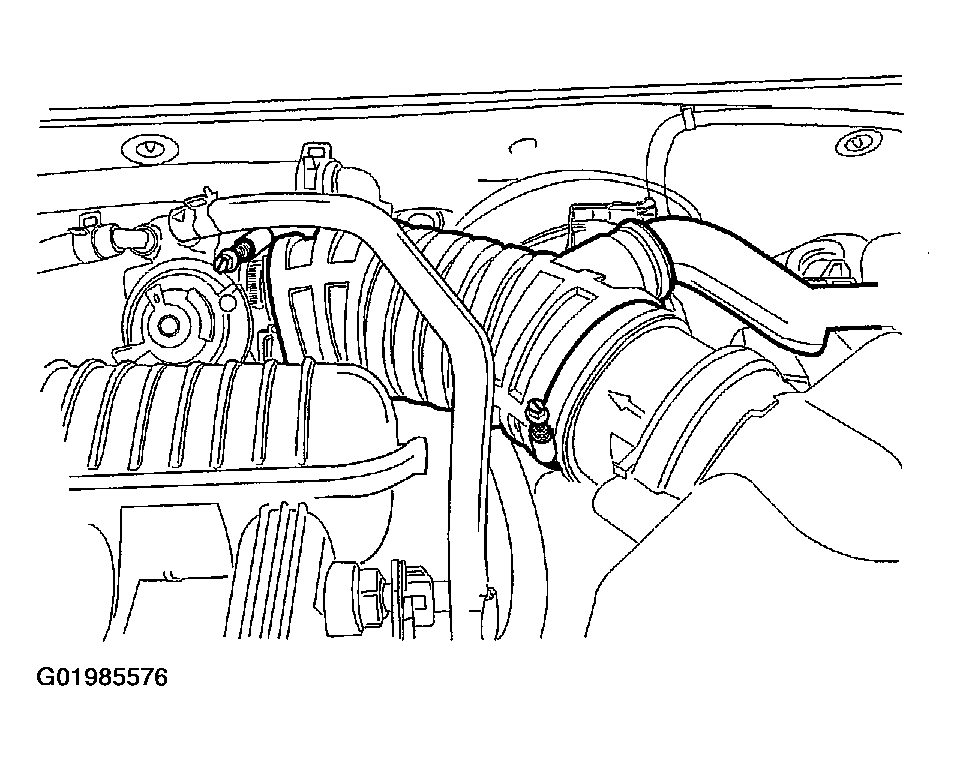

Fig 1: Removing Air Filter Outlet Hose

Courtesy of SUZUKI OF AMERICA CORP.

Disconnect the throttle cable by opening the throttle and moving the cable through the release slot.

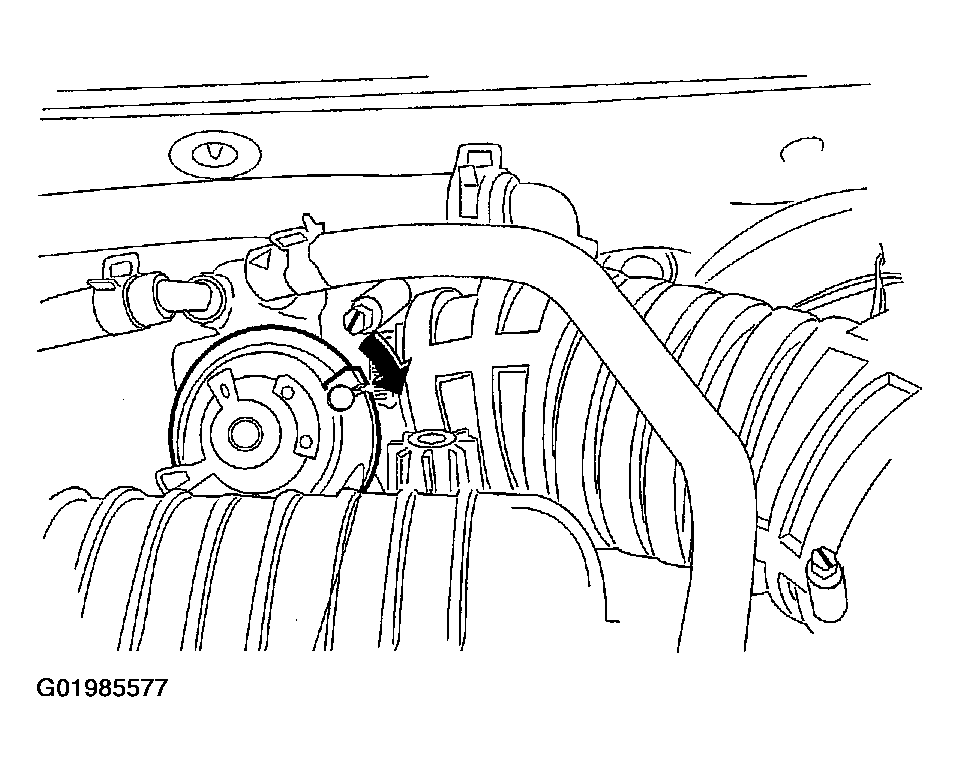

Fig 2: Disconnecting Throttle Cable

Courtesy of SUZUKI OF AMERICA CORP.

Remove the coolant inlet and outlet hoses from the throttle body assembly.
Disconnect the main throttle idle actuator (MTIA) connector.

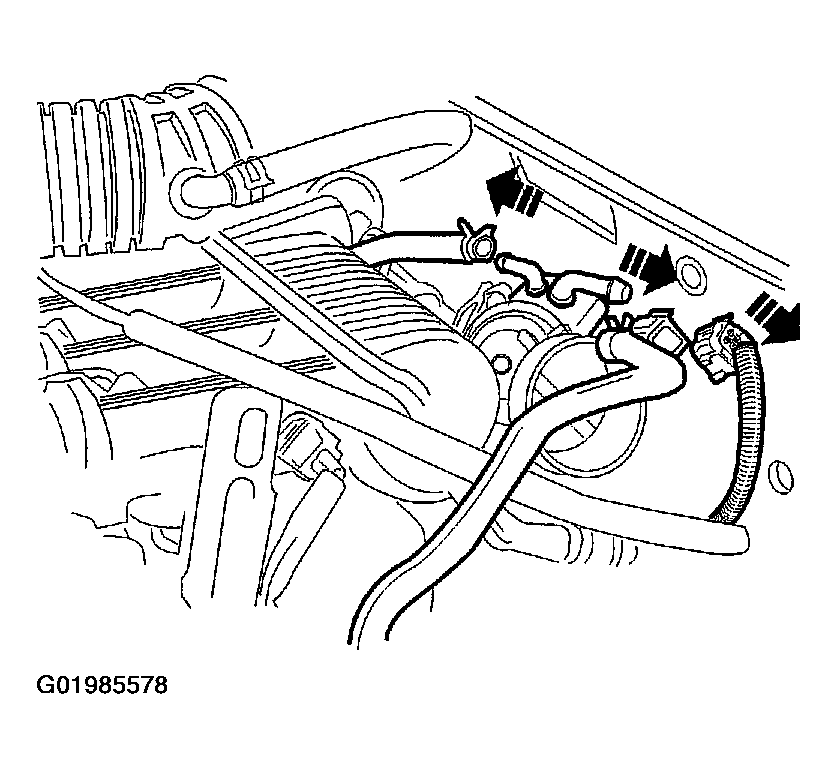

Fig 3: Disconnecting MTIA Connector

Courtesy of SUZUKI OF AMERICA CORP.

Remove the throttle body assembly.
Remove the throttle body gasket.
NOTE: Inspect the throttle body gasket for a distortion or damage.

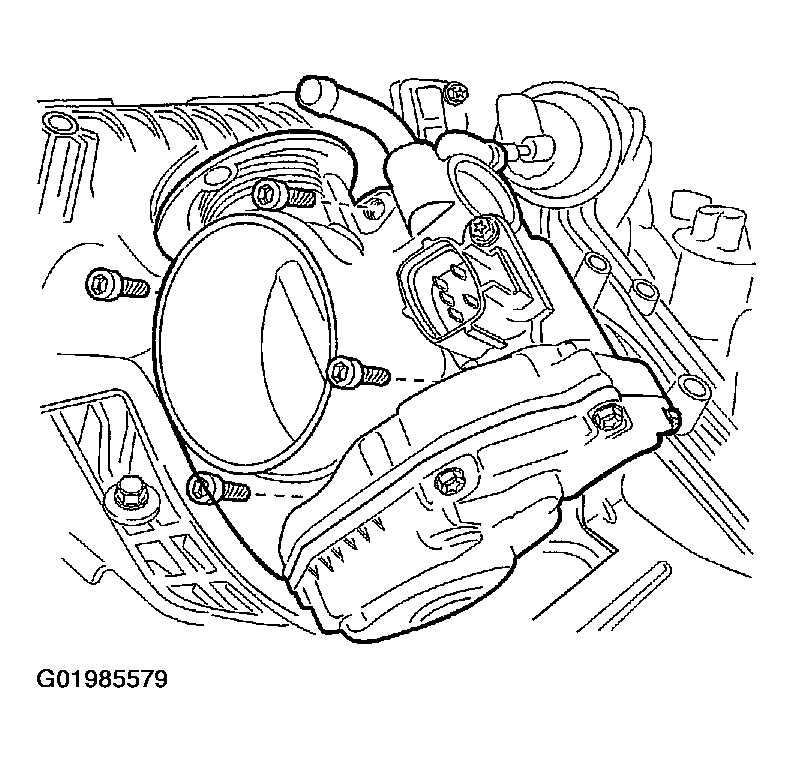

Fig 4: Removing Throttle Body Gasket

Courtesy of SUZUKI OF AMERICA CORP.
