Engine Mount (RH) Installation

WARNING: This page is about a different car, the 2004 Suzuki Verona. However, it is still accessible from the selected car via links, so may be relevant.

Installation should follow the removal procedure in the reverse order.
Install the engine mount (RH).
Tighten
1. Tighten the engine mount bracket-to-hydro mount nut to 55-70 N.m (41-52 lb-ft).
2. Tighten the engine mount bracket bolt to 42-60 N.m (31-44 lb-ft).
3. Tighten the two (2) engine mount bracket nuts to 42-60 N.m (31-44 lb-ft).

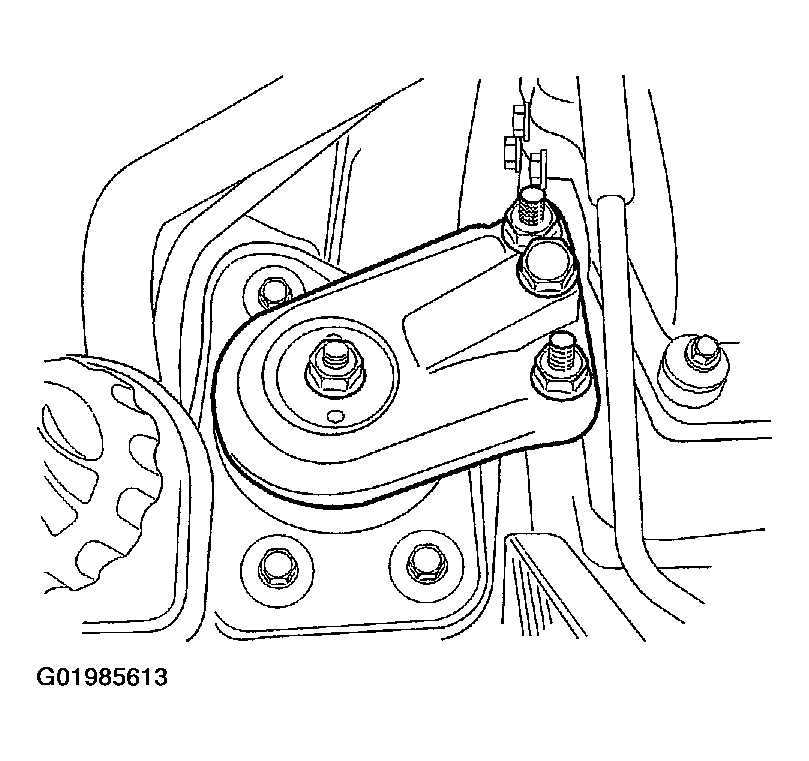

Fig 1: Installing Engine Mount (RH)

Courtesy of SUZUKI OF AMERICA CORP.
