Engine Assembly Removal

WARNING: This page is about a different car, the 2004 Suzuki Verona. However, it is still accessible from the selected car via links, so may be relevant.

Tools Required

  1. DW110-060 Engine Assembly Lift Support
  2. DW010-010 Power Pack Stand
  1. Remove the fuel pump fuse.
  2. Start the engine and repeat cranking until the remaining fuel in the fuel line is all consumed.
  3. Disconnect the negative battery cable.
  4. Drain the engine coolant. Refer to DRAINING AND REFILLING THE COOLING SYSTEM .
  5. Drain the engine oil.
  6. Drain the transaxle oil.
  7. Drain the power steering oil.
  8. Recover the refrigerant. Refer to MANUAL HVAC SYSTEM .
  9. Remove the engine beautification cover.

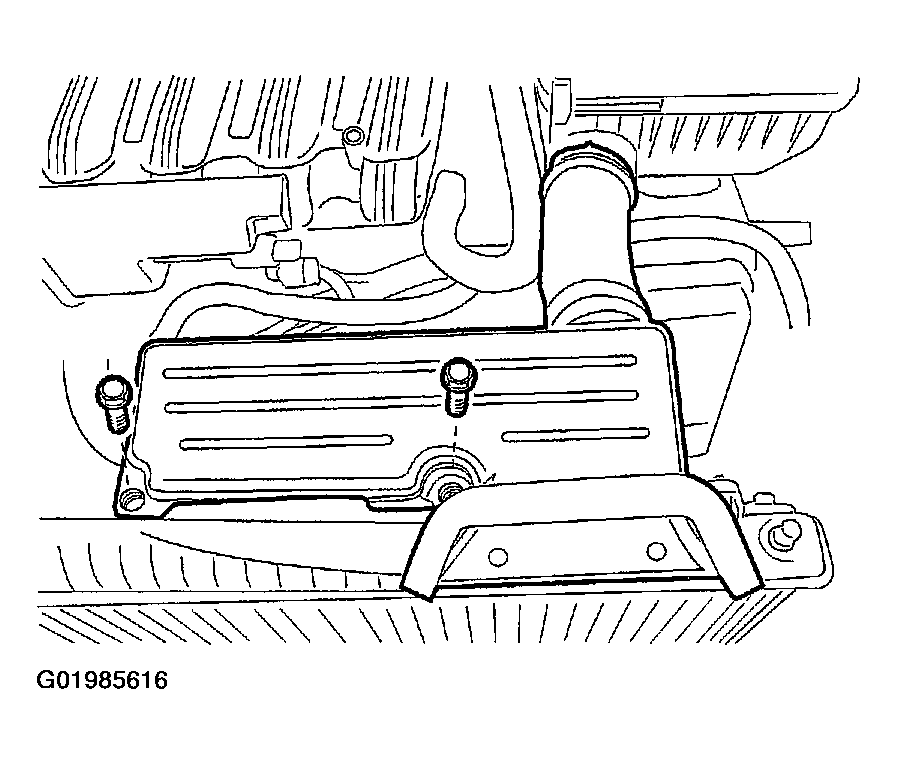

  10. Remove the air filter snorkel.
  11. Fig 1: Removing Air Filter Snorkel
    G01985616Courtesy of SUZUKI OF AMERICA CORP.

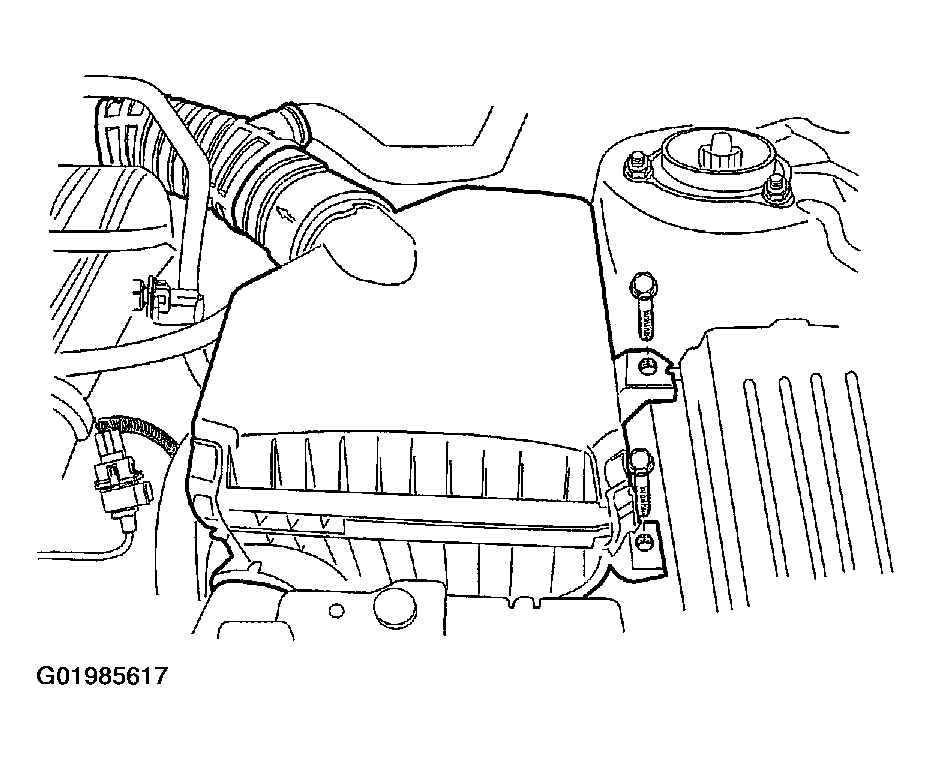

  12. Remove the air filter housing assembly.
  13. Fig 2: Removing Air Filter Housing Assembly
    G01985617Courtesy of SUZUKI OF AMERICA CORP.
  14. Remove the breather hose.
  15. Disconnect the throttle cable from the throttle body assembly.

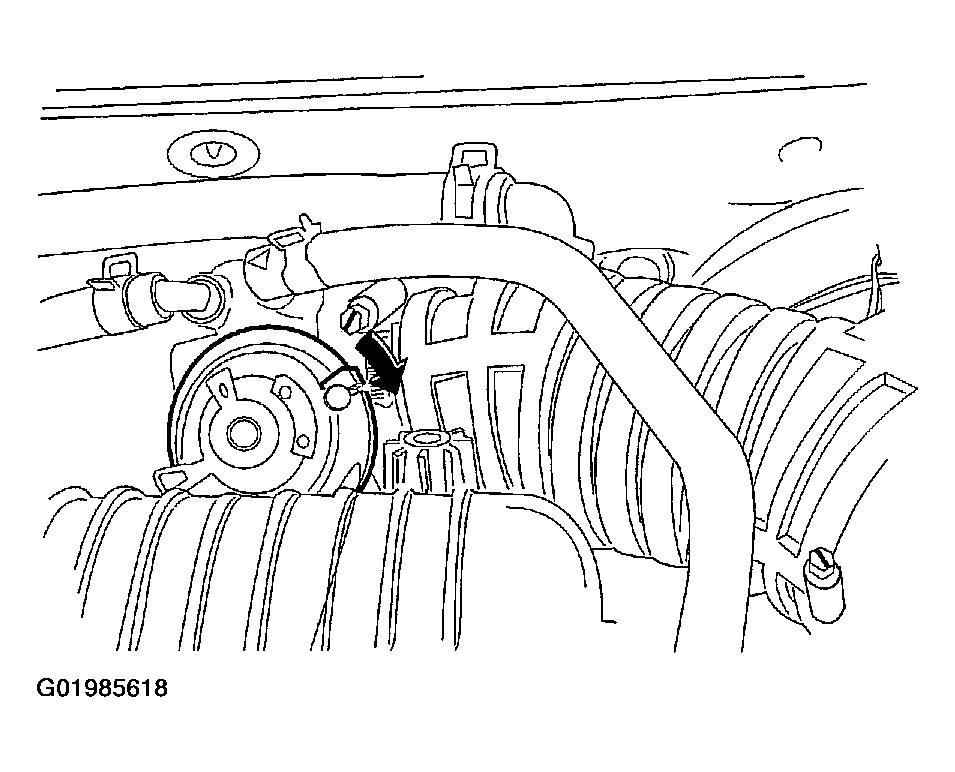

  16. Fig 3: Disconnecting Throttle Cable From Throttle Body Assembly
    G01985618Courtesy of SUZUKI OF AMERICA CORP.
  17. Disconnect the coolant reservoir hoses.
  18. Remove the coolant reservoir. Refer to SURGE TANK REMOVAL .

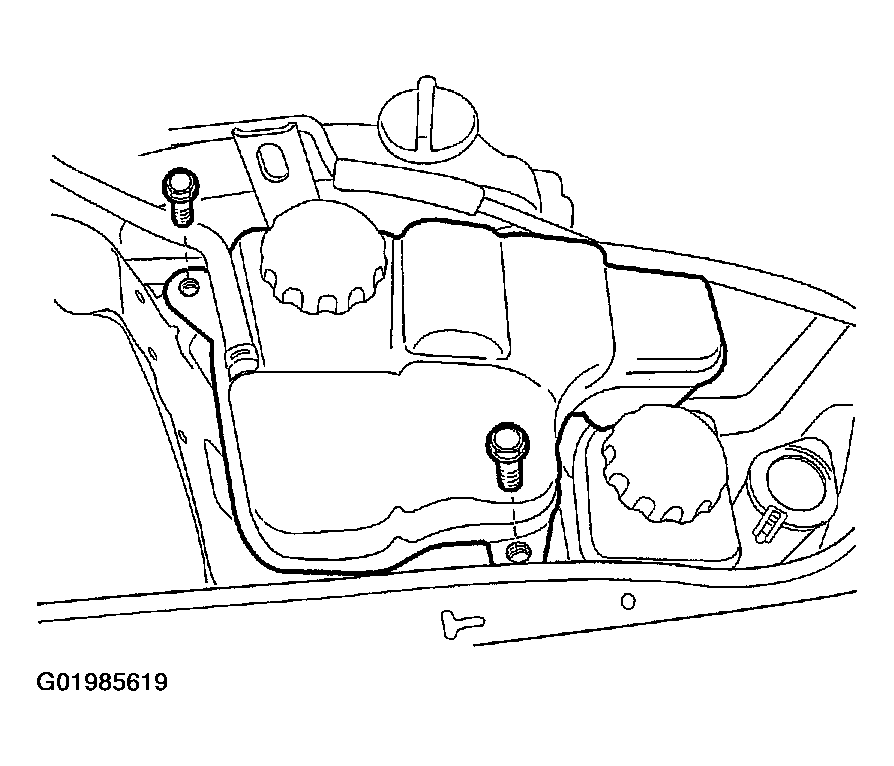

  19. Fig 4: Removing Coolant Reservoir
    G01985619Courtesy of SUZUKI OF AMERICA CORP.
  20. Disconnect the power steering pump outlet pipe.
  21. Disconnect the fuel rail hose and fuel feeding/return pipe.

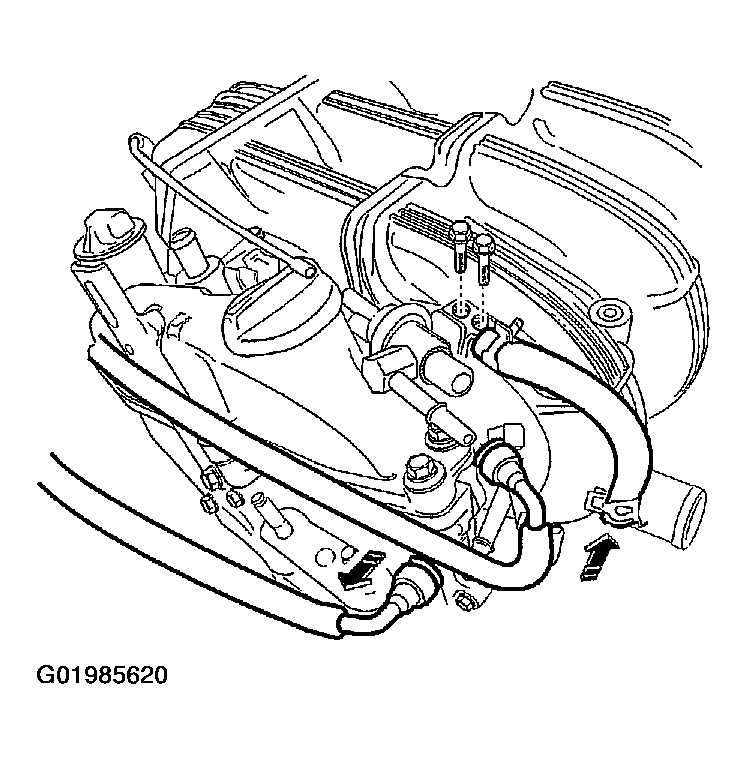

  22. Fig 5: Disconnecting Fuel Rail Hose & Fuel Feeding/Return Pipe
    G01985620Courtesy of SUZUKI OF AMERICA CORP.
  23. Disconnect the connectors on the O2S, EGR, charcoal canister purge solenoid valve, MAP sensor, Throttle body, engine oil pressure sensor, CMP sensor, knock sensor, VIS, and the engine coolant temperature sensor.

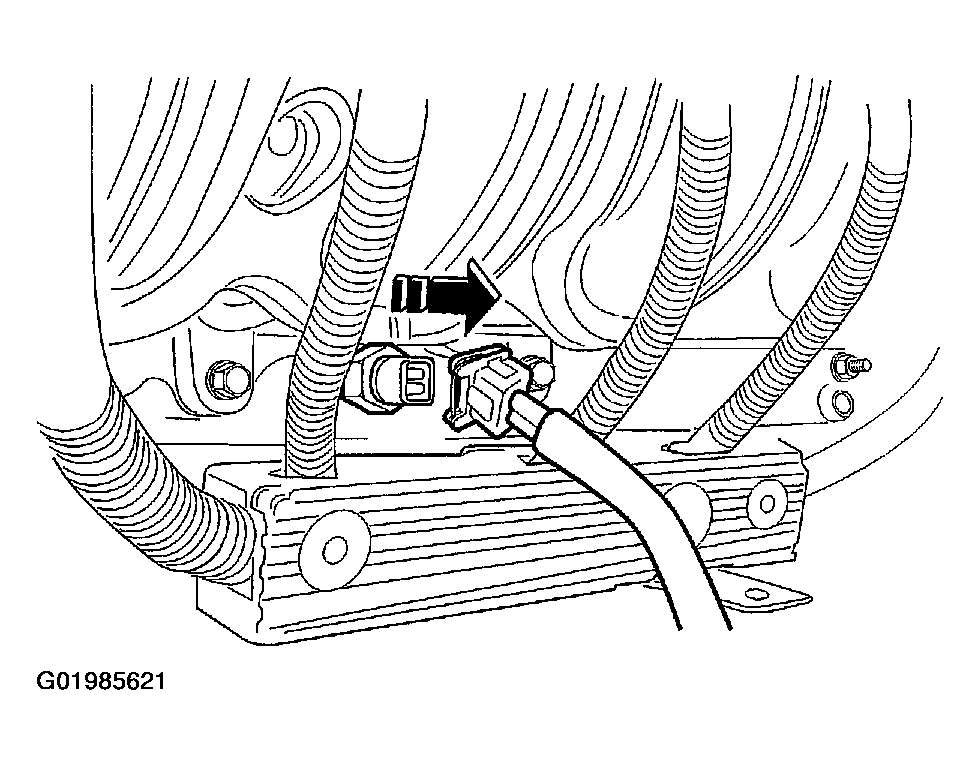

  24. Fig 6: Disconnecting Connectors
    G01985621Courtesy of SUZUKI OF AMERICA CORP.
  25. Detach wiring harness from the wiring harness bracket on the cylinder block.

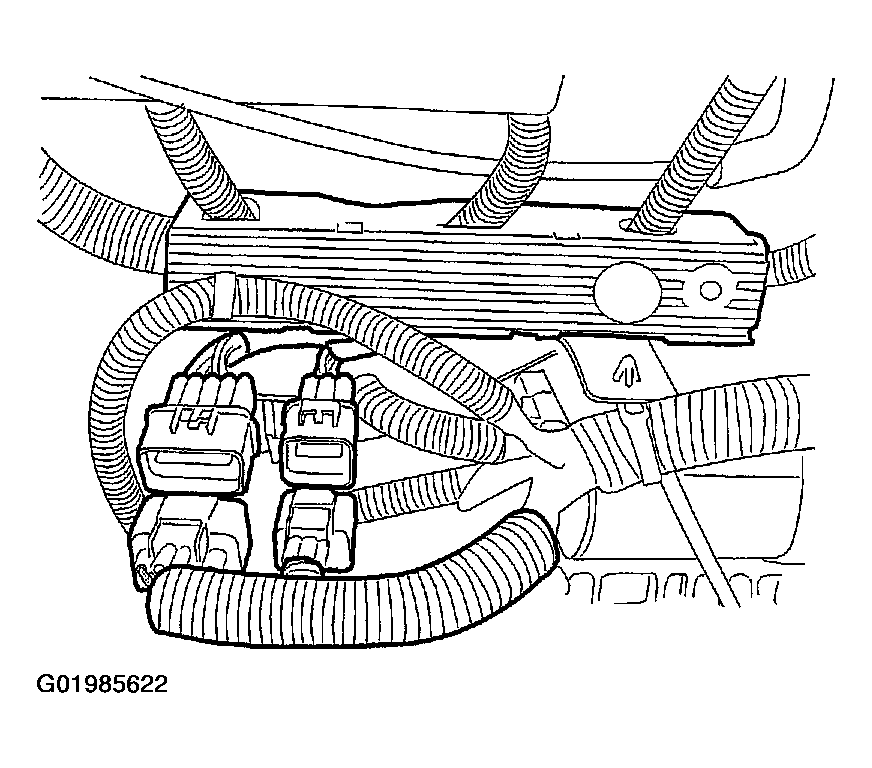

  26. Fig 7: Detaching Wiring Harness From Wiring Harness Bracket On Cylinder Block
    G01985622Courtesy of SUZUKI OF AMERICA CORP.
  27. Disconnect the engine block ground by removing the engine block ground bolts.

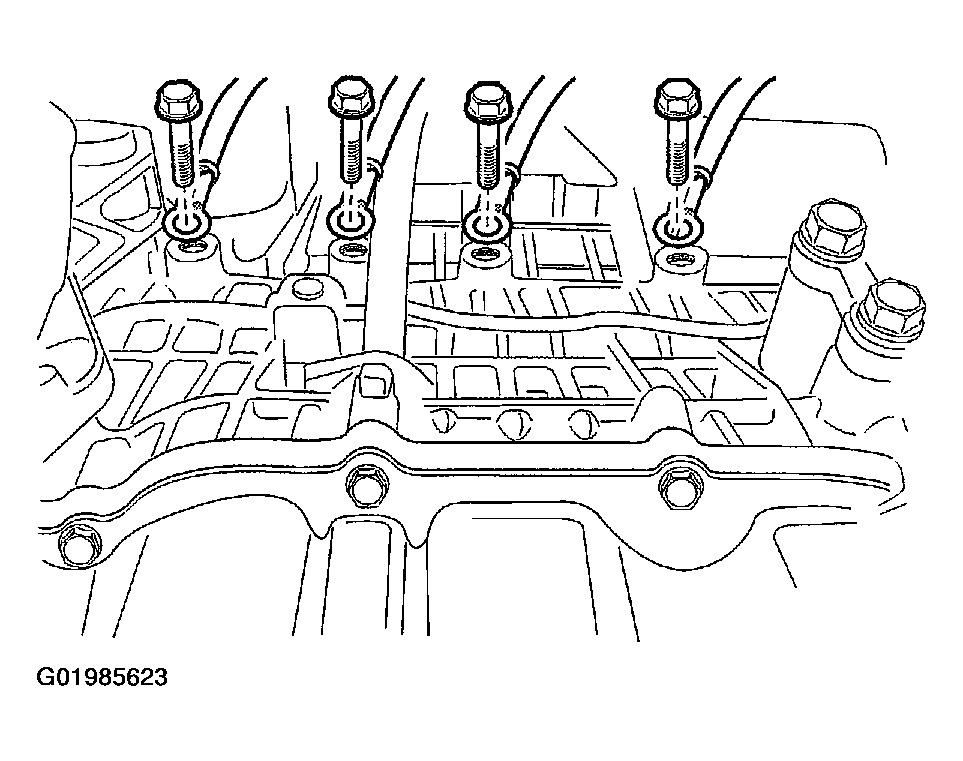

  28. Fig 8: Disconnecting Engine Block Ground
    G01985623Courtesy of SUZUKI OF AMERICA CORP.

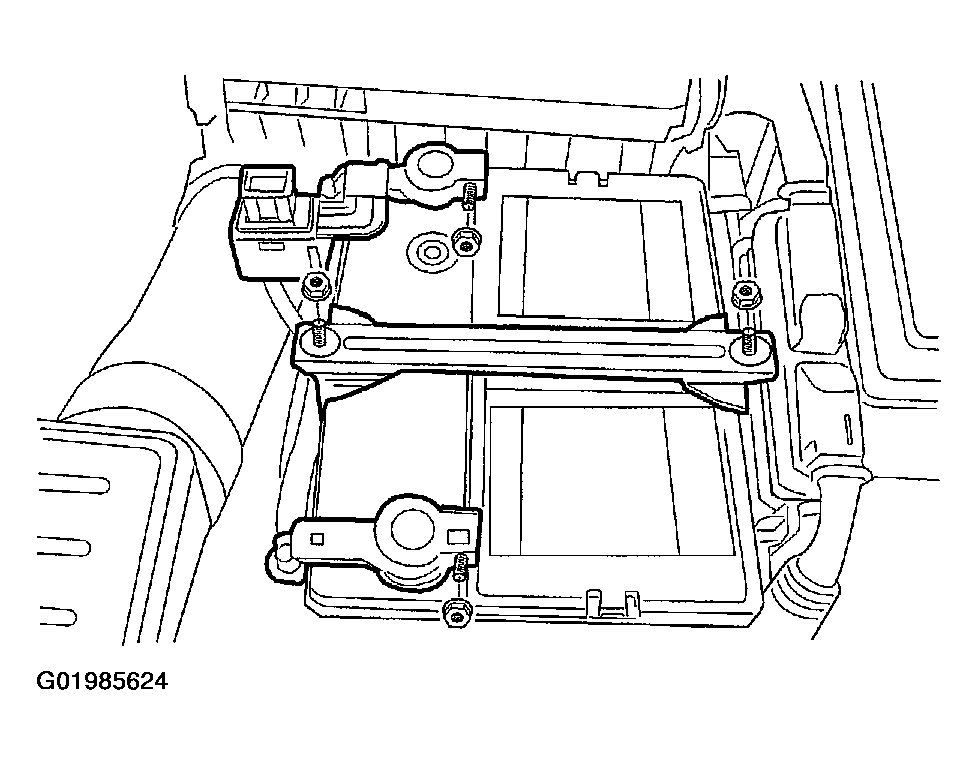

  29. Remove the battery.
  30. Fig 9: Removing Battery
    G01985624Courtesy of SUZUKI OF AMERICA CORP.
  31. Disconnect the automatic transaxle cable.
  32. Disconnect the inhibit switch connector.
  33. Disconnect the connectors on the transaxle. Refer to AXLE SHAFTS .
  34. Disconnect the alternator connector and wiring harness. Refer to GENERATOR .

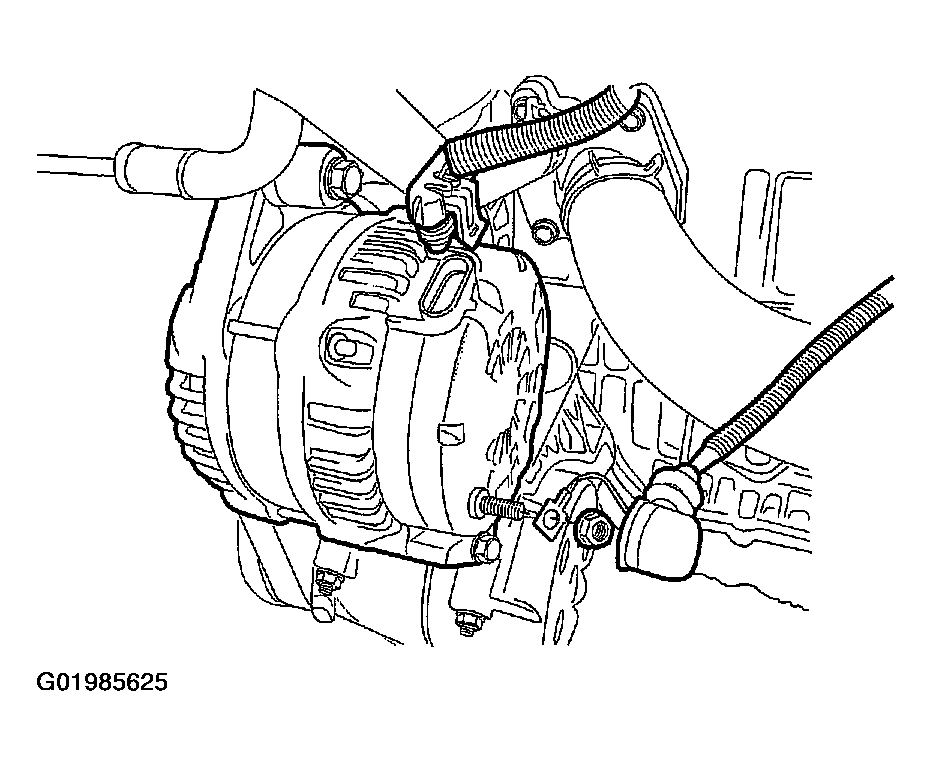

  35. Fig 10: Disconnecting Alternator Connector & Wiring Harness
    G01985625Courtesy of SUZUKI OF AMERICA CORP.
  36. Remove the upper and lower radiator hoses. Refer to RADIATOR REMOVAL .
  37. Remove the front wheels.
  38. Remove the engine under covers.
  39. Fig 11: Removing Engine Under Covers
    G01985626Courtesy of SUZUKI OF AMERICA CORP.
  40. Remove the front axle shaft. Refer to AXLE SHAFTS .
  41. Remove the front muffler. Refer to MUFFLER -- FRONT REMOVAL .

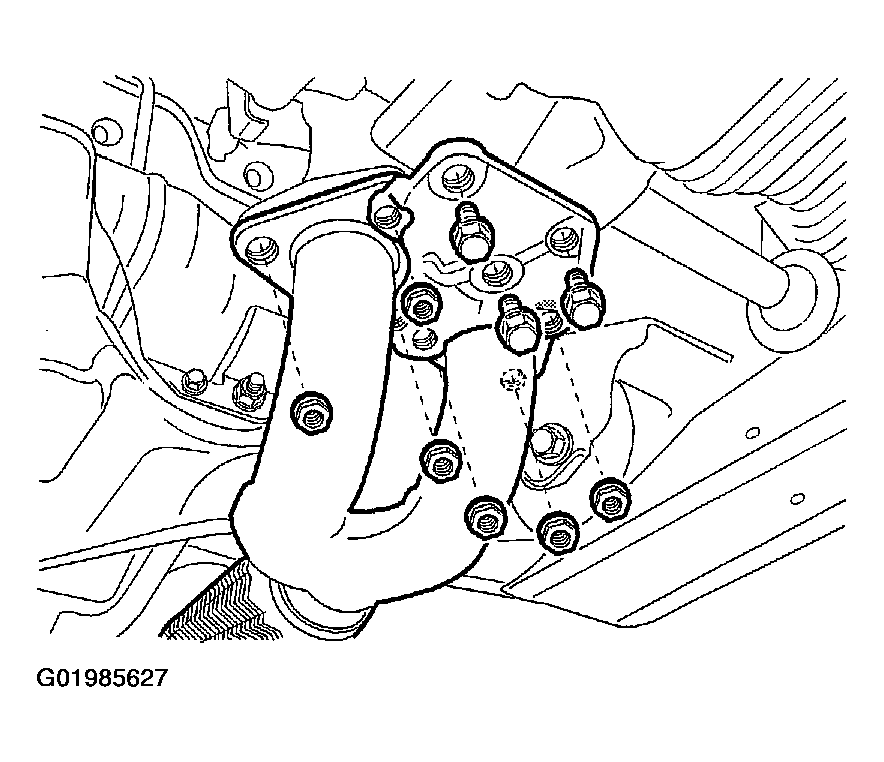

  42. Fig 12: Removing Front Muffler
    G01985627Courtesy of SUZUKI OF AMERICA CORP.
  43. Support the engine assembly using the engine assembly lift support DW110-060.

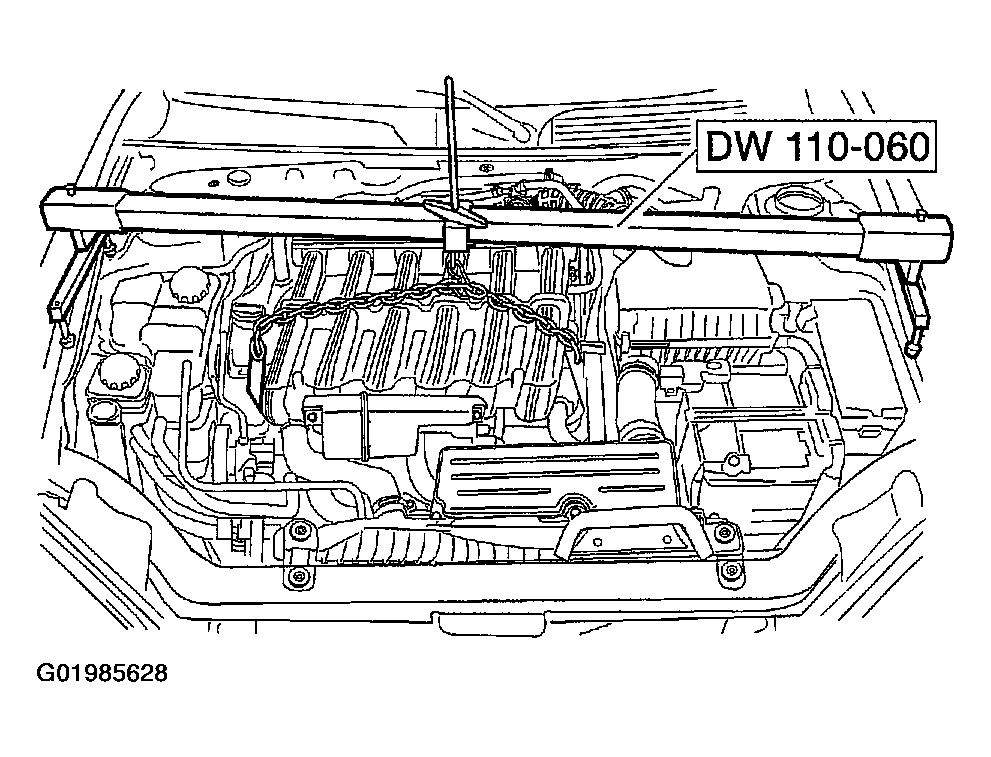

  44. Fig 13: Supporting Engine Assembly Using Lift Support
    G01985628Courtesy of SUZUKI OF AMERICA CORP.
  45. Remove the front engine mount bracket-to-damper bush bolt/nut and the rear transaxle mount bracket-to-damper bush bolt/nut.

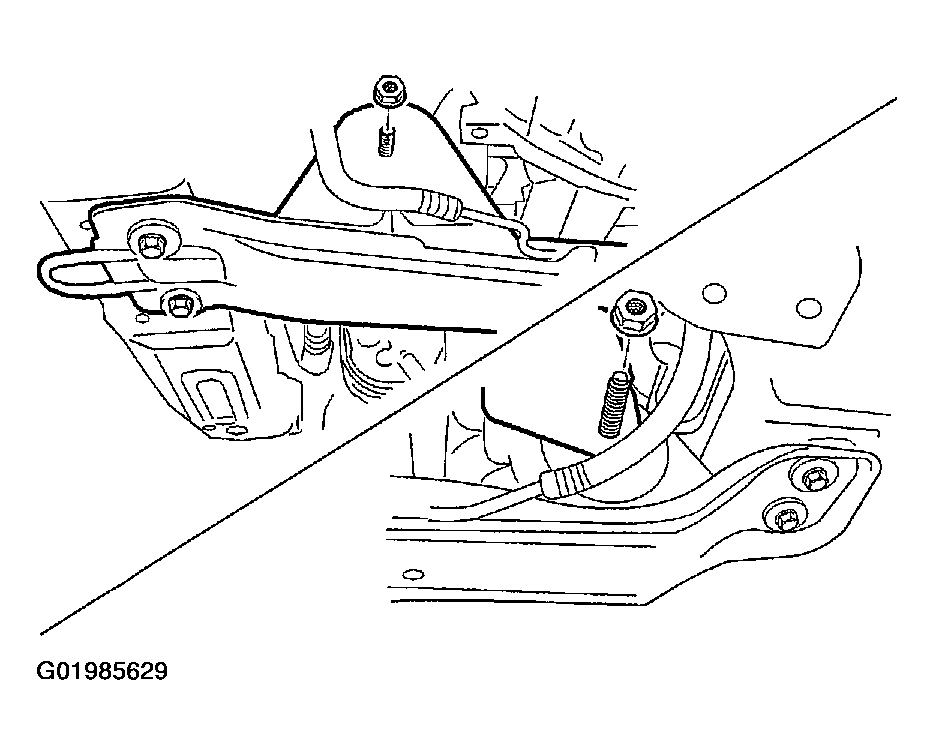

  46. Fig 14: Removing Front Engine Mount Bracket-To-Damper Bush Bolt/Nut
    G01985629Courtesy of SUZUKI OF AMERICA CORP.

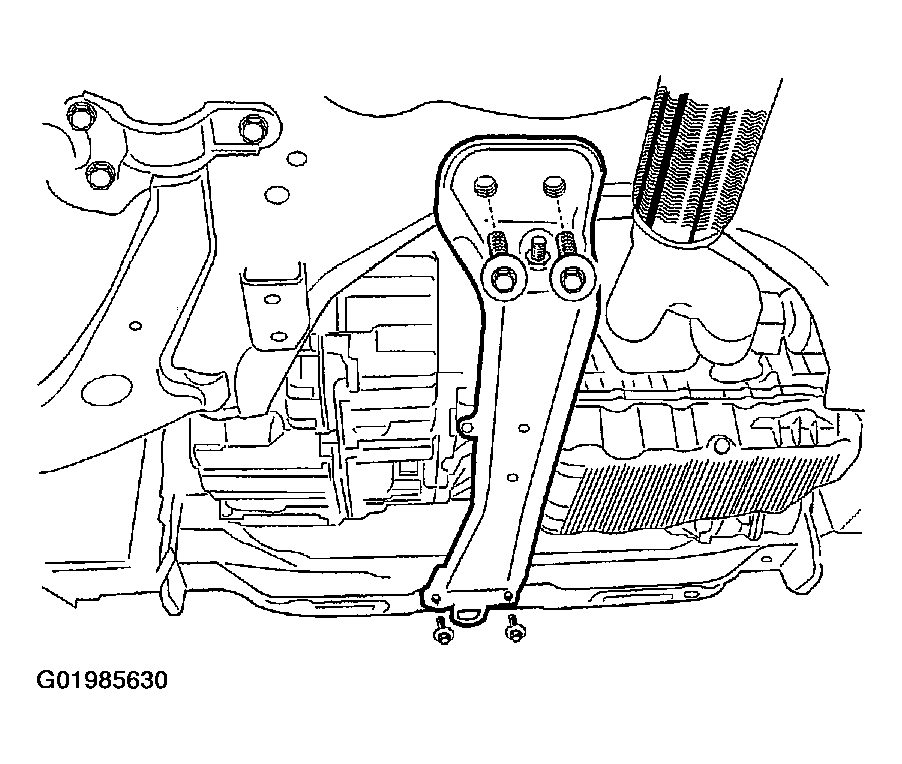

  47. Remove the center front suspension member bolts and the center front suspension member.
  48. Fig 15: Removing Center Front Suspension Member Bolts
    G01985630Courtesy of SUZUKI OF AMERICA CORP.

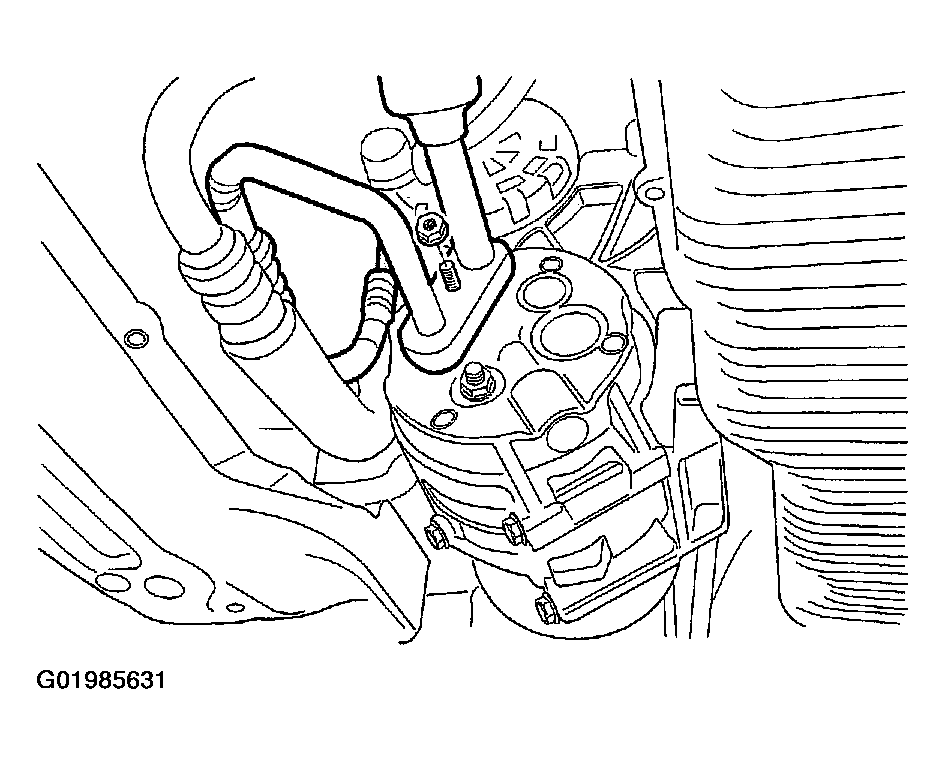

  49. Disconnect the connector on the compressor.
  50. Disconnect the refrigerant suction and discharge pipe block from the compressor.
  51. Fig 16: Disconnecting Refrigerant Suction
    G01985631Courtesy of SUZUKI OF AMERICA CORP.

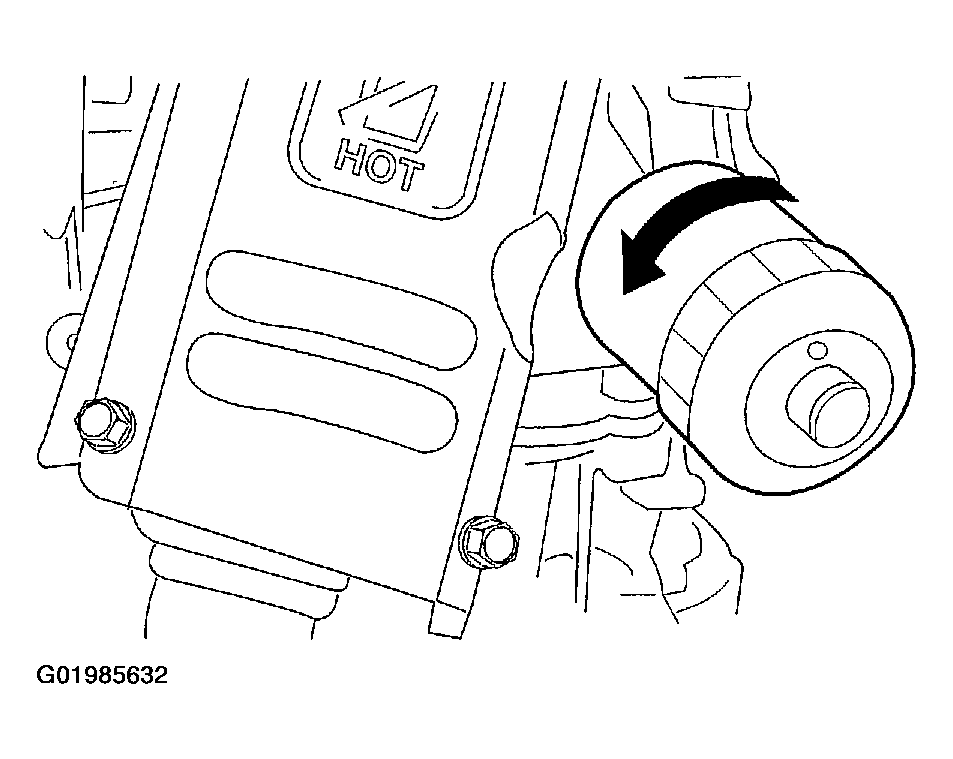

  52. Remove the oil filter.
  53. Fig 17: Removing Oil Filter
    G01985632Courtesy of SUZUKI OF AMERICA CORP.
  54. Support the engine and transaxle with the power pack stand DW010-010.

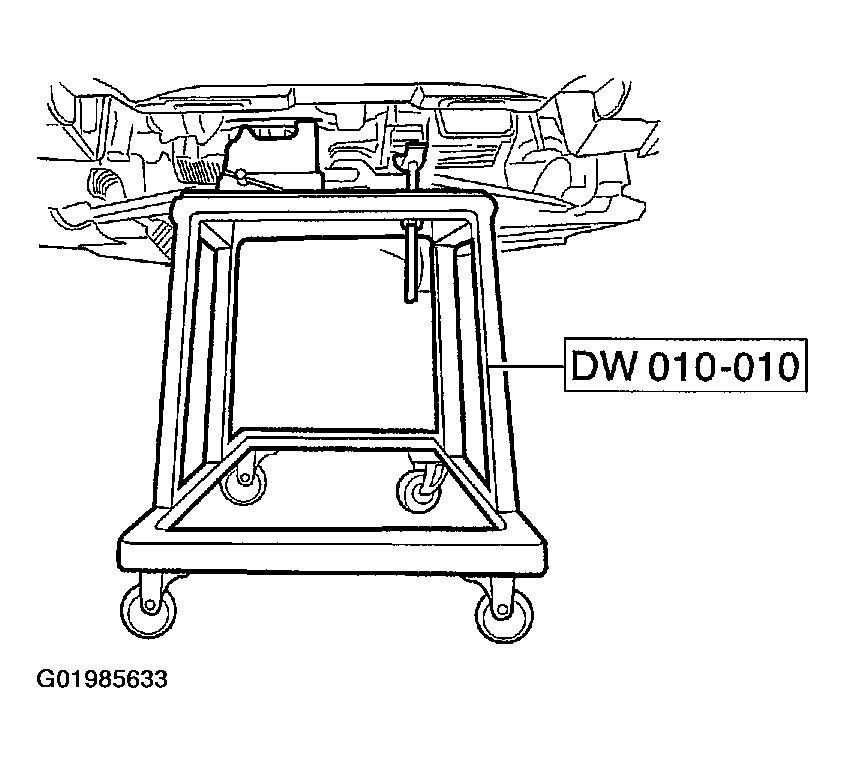

  55. Fig 18: Supporting Engine & Transaxle With Power Pack Stand
    G01985633Courtesy of SUZUKI OF AMERICA CORP.

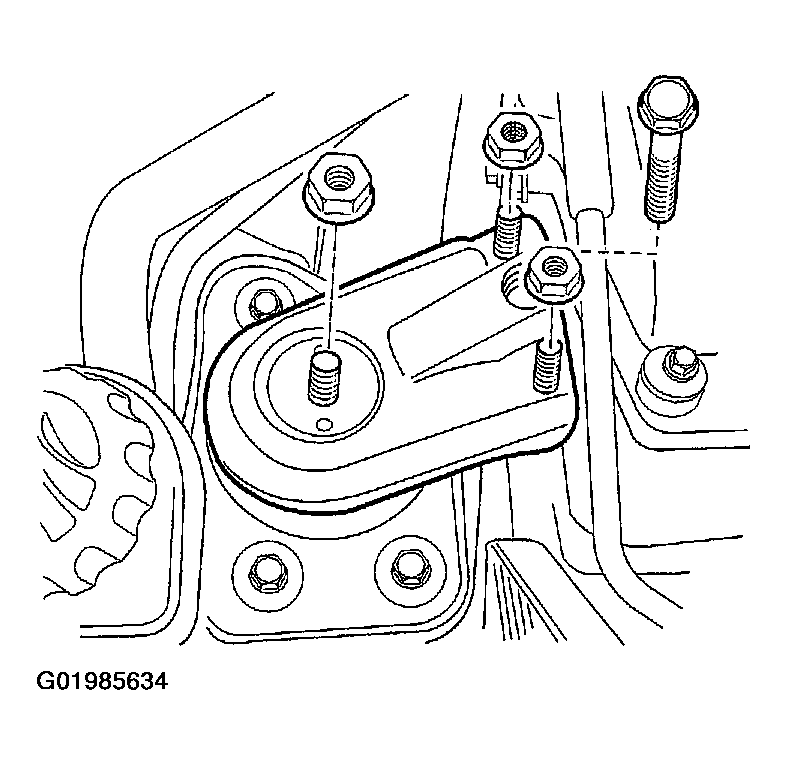

  56. Remove the engine mount bracket (RH). Refer to Engine Mount (RH) Removal  .
  57. Fig 19: Removing Engine Mount Bracket (RH)
    G01985634Courtesy of SUZUKI OF AMERICA CORP.
  58. Remove the engine mount bracket (LH). Refer to Engine Mount (LH) Removal
  59. Separate the engine and transaxle assembly from the engine compartment.

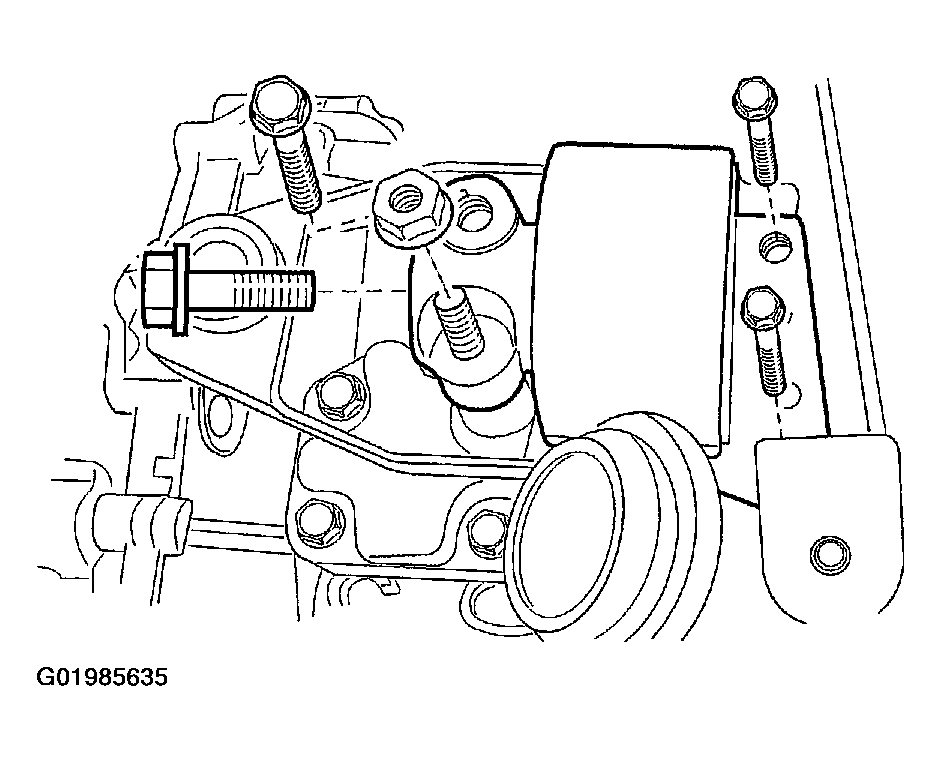

  60. Fig 20: Separating Engine & Transaxle Assembly
    G01985635Courtesy of SUZUKI OF AMERICA CORP.
  61. Remove the starter. Refer to STARTER .

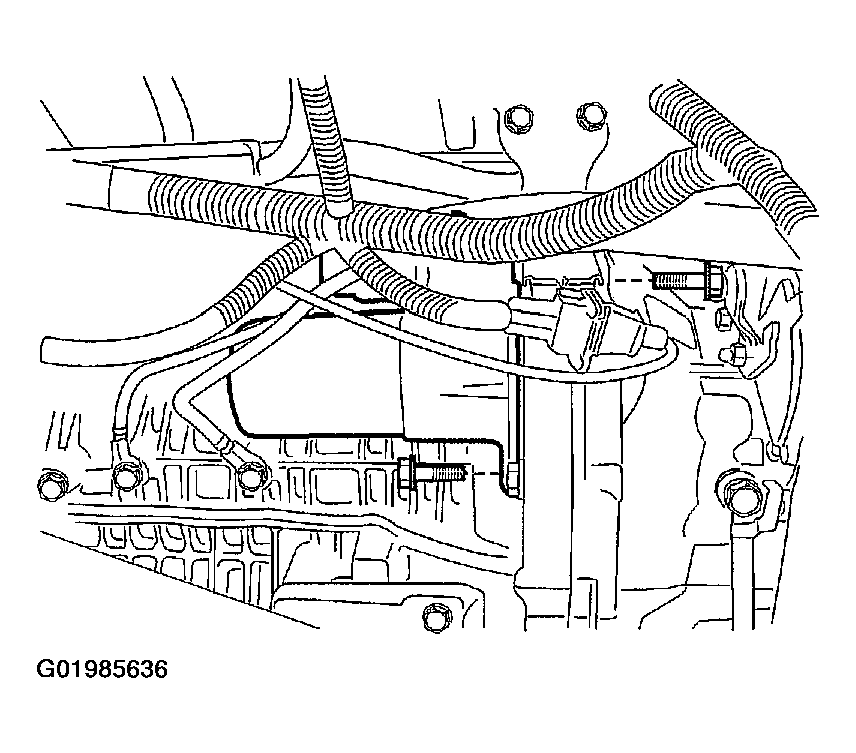

  62. Fig 21: Removing Starter
    G01985636Courtesy of SUZUKI OF AMERICA CORP.
  63. Remove three (3) transaxle torque converter bolts.

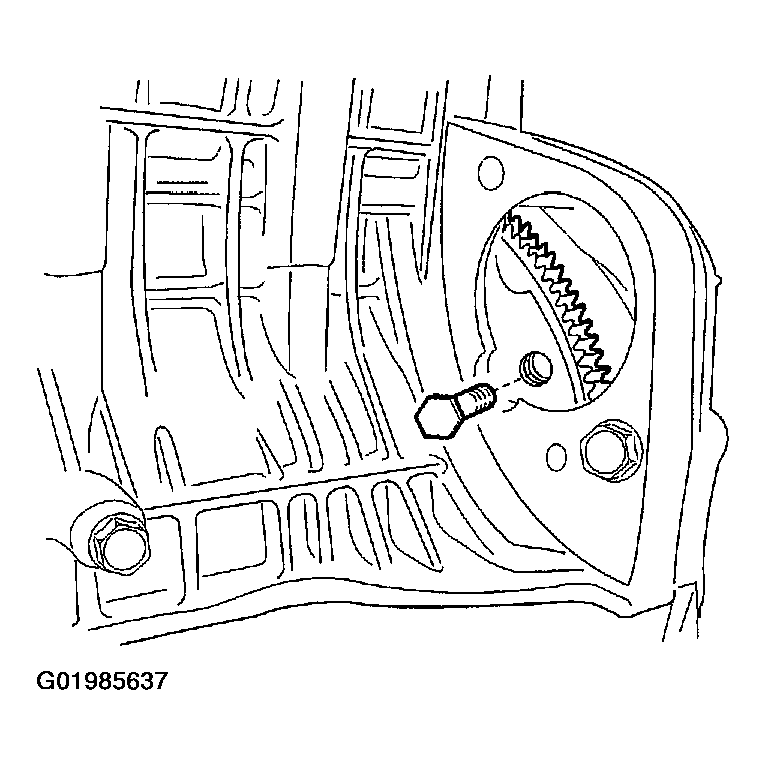

  64. Fig 22: Removing Transaxle Torque Converter Bolts
    G01985637Courtesy of SUZUKI OF AMERICA CORP.
  65. Remove the transaxle-to-engine block bolts.

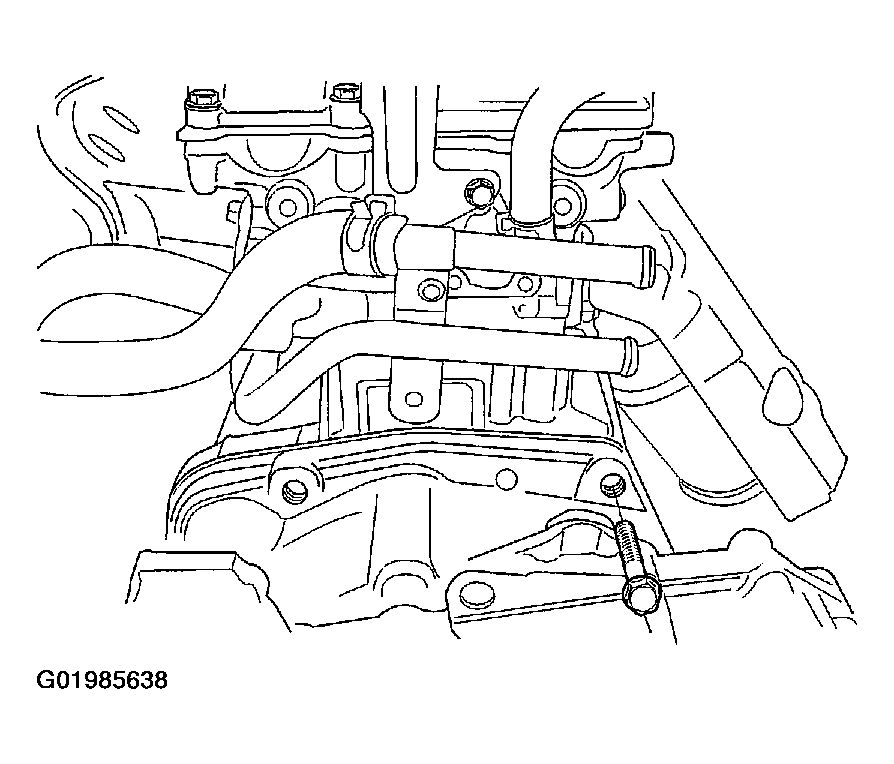

  66. Fig 23: Removing Transaxle-To-Engine Block Bolts
    G01985638Courtesy of SUZUKI OF AMERICA CORP.
  67. Remove the rear transaxle mount bracket.
  68. Remove the front damper bush bracket.

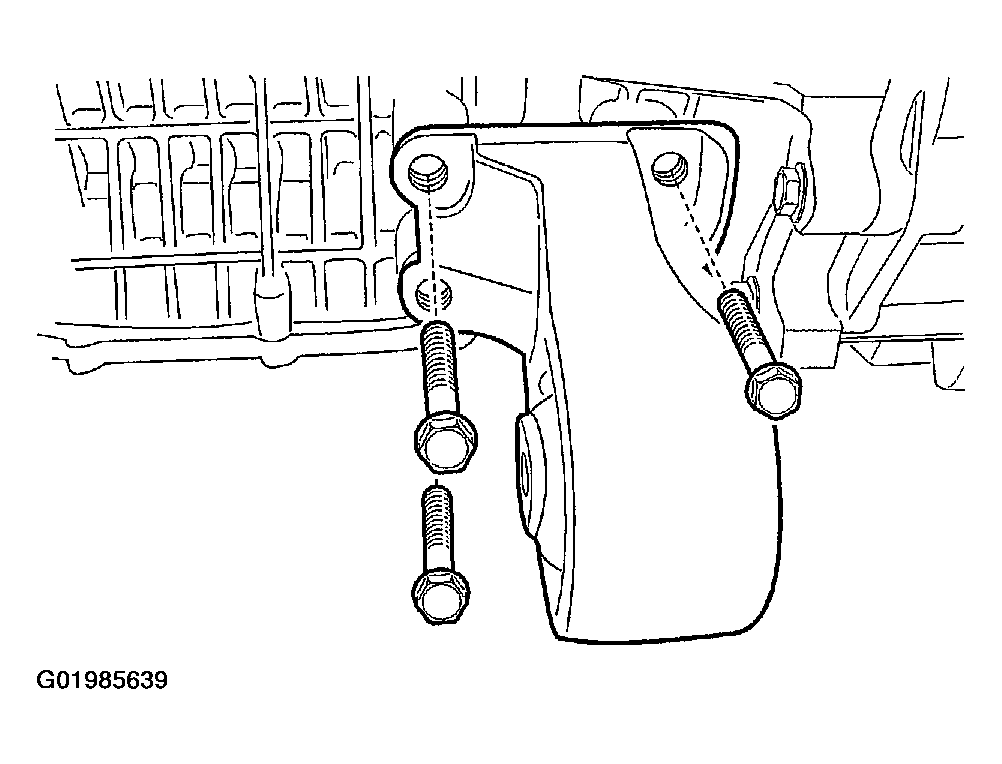

  69. Fig 24: Removing Front Damper Bush Bracket
    G01985639Courtesy of SUZUKI OF AMERICA CORP.
  70. Remove the engine block-to-transaxle bolts.

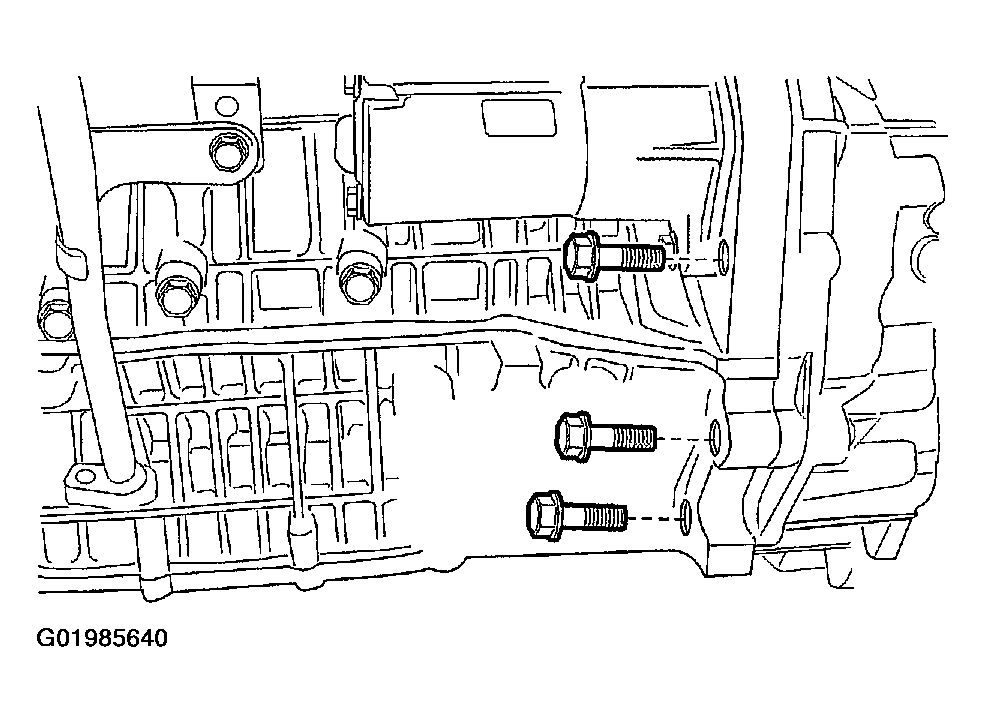

  71. Fig 25: Removing Engine Block-To-Transaxle Bolts
    G01985640Courtesy of SUZUKI OF AMERICA CORP.
  72. Remove the engine block-to-transaxle bolts.

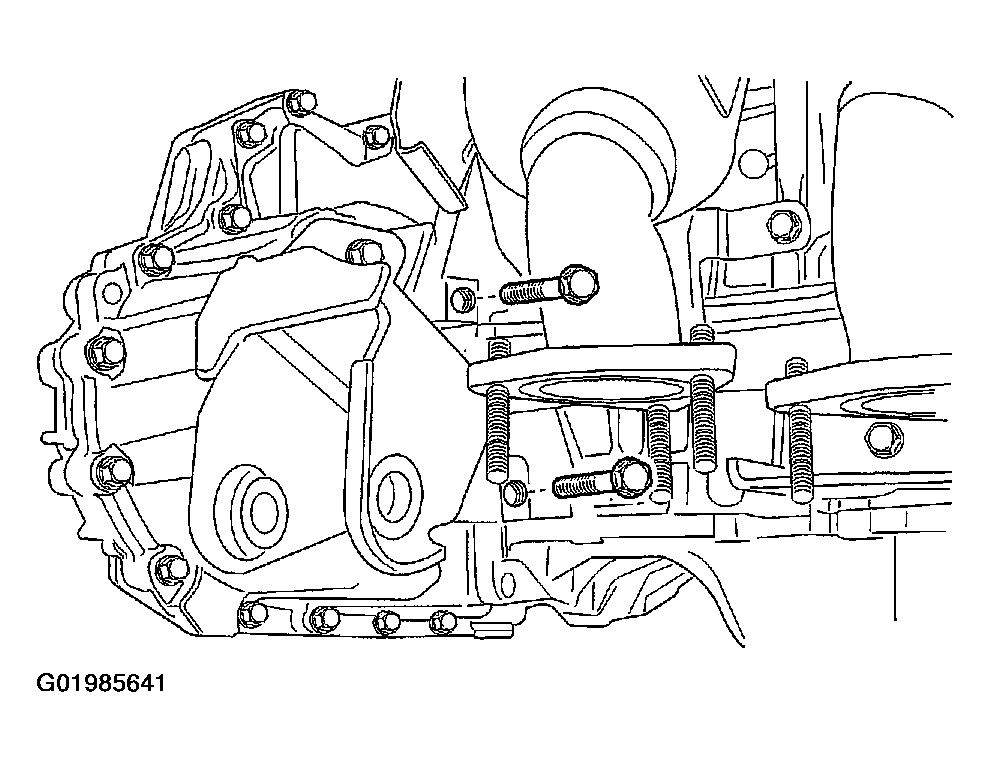

  73. Remove the engine assembly from the transaxle.
    CAUTION: Be careful not to damage the torque converter when removing the transaxle.
Fig 26: Removing Engine Assembly From Transaxle
G01985641Courtesy of SUZUKI OF AMERICA CORP.
