Upper End Location

WARNING: This page is about a different car, the 2004 Suzuki Verona. However, it is still accessible from the selected car via links, so may be relevant.

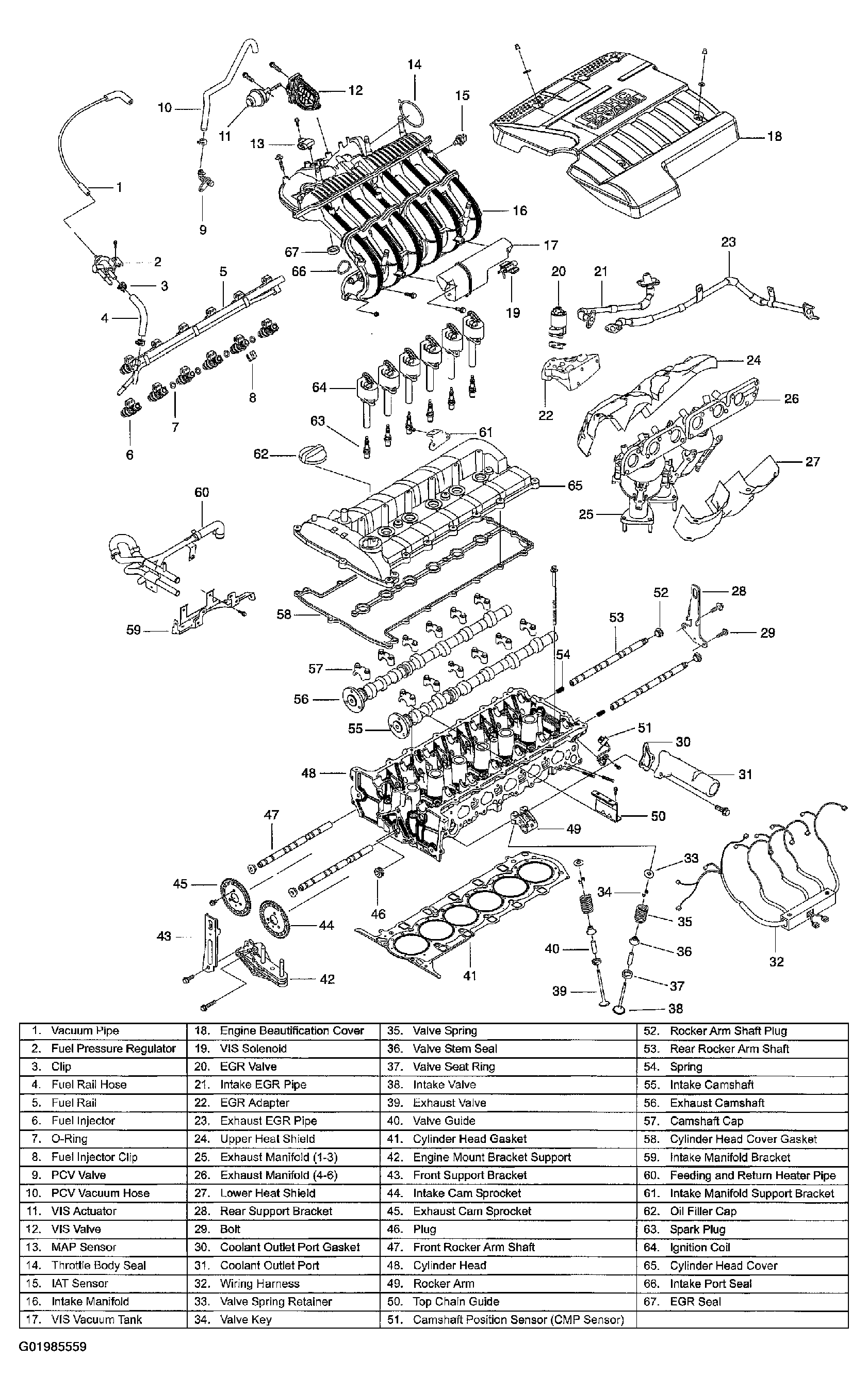

Fig 1: Exploded View Of Upper Components
G01985559Courtesy of SUZUKI OF AMERICA CORP.
